Bimetallic thermostat 0-60C NC, PTHT, Plastim
Failed to load pickup availability

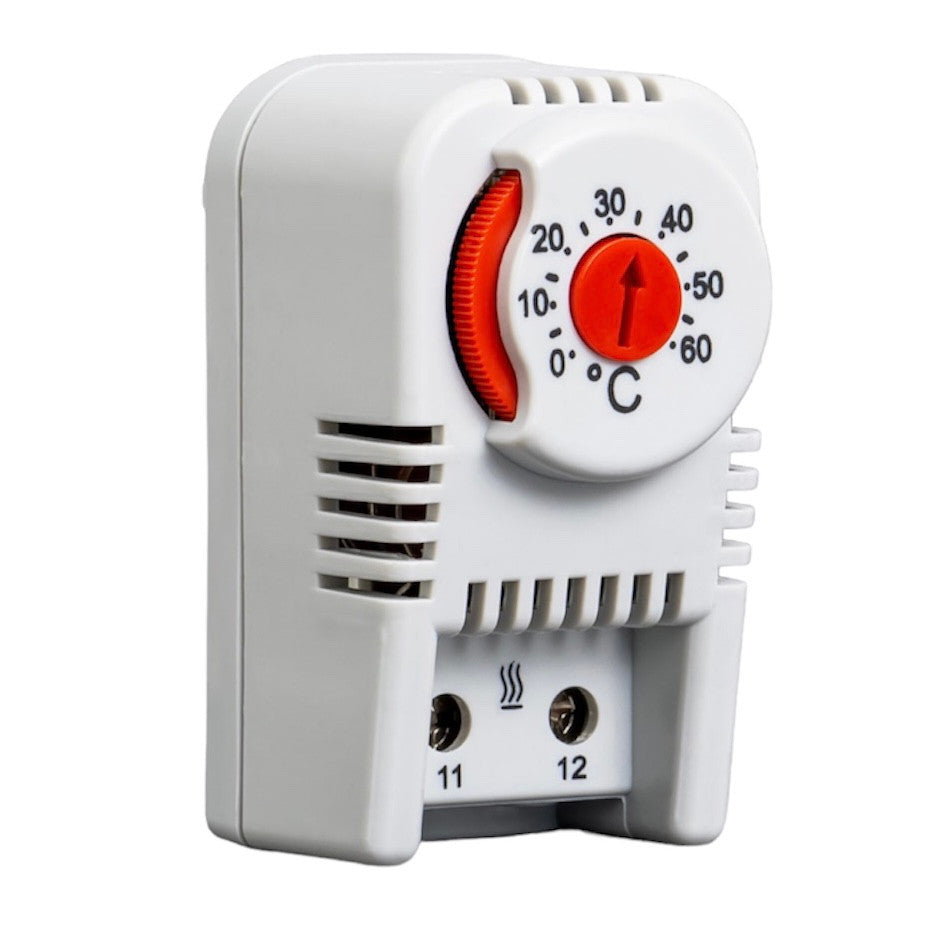

Thermostat for heating control. Adjustable temperature 0-60°C. Mounted on DIN rail. 1xNC, bimetallic thermostats Plastim.
Standard thermostat. 220(250) V AC. Bimetallic sensor with type, heating function. electrical connection with 2 terminals 2.5 mm2. mounting method on 35 mm DIN rail, cross rails, on mounting panel.
Used for connecting j heating elements - heating elements, panel heaters, heated floors, heating cables, heating fans.
Features |
PTHT |
Contact type |
NC |
Adjustment range |
0-60°C |
Potentiometer color |
Red |
250V AC / 120V AC |
10 (2)A |
Sensor type |
Bimetallic |
Contact type |
Snap action |
Lifespan |
> 100,000 |
Electrical connection |
2-pole terminal, screw terminals |
Plastic material |
UL94 V0 ABS Non-flammable |
Degree of protection |
IP20 |
Operating temperature |
-25 / +80 °C |
Storage temperature |
-45/+80°C |
Installation |
DIN rail 35 mm |

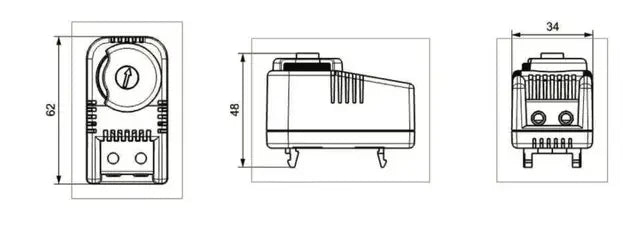

Dimensions HxWxD |
61x34x38 mm |
Weight |
45g |
