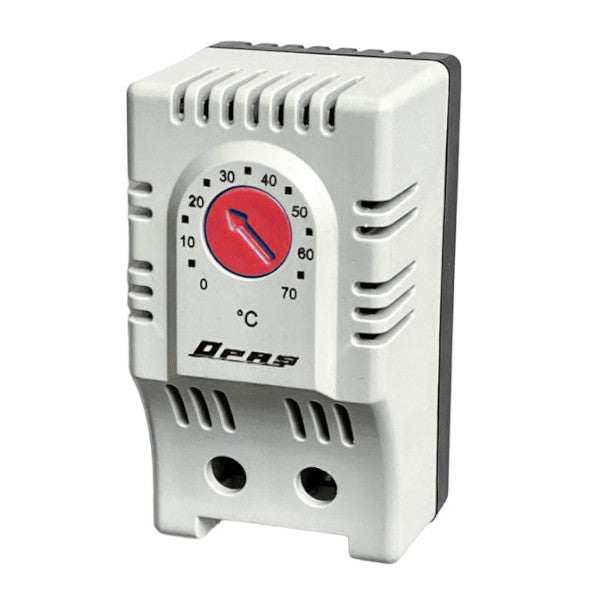

Bimetallic thermostat NC, switching, range 0-60°C - temperature switches

In stock - 65 items available
SKU: PTOT001
Common price 16.75 лв including VAT

NC bimetal thermostat / temperature switches, 0-60°C, mounted on DIN rail. bimetal from OPAŞ

Standard thermostat. 220(250) V AC. Bimetallic sensor with type, heating function. electrical connection with 2 terminals 2.5 mm2. mounting method on 35 mm DIN rail, cross rails, on mounting panel.

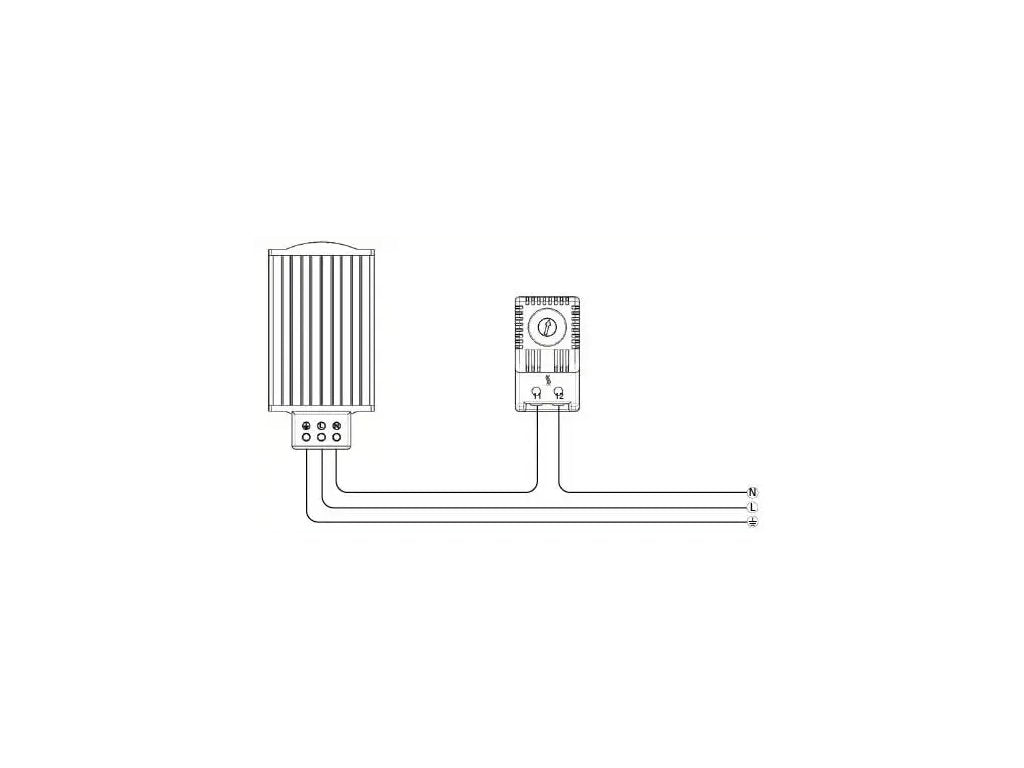

Used for connecting j heating elements - heating elements, panel heaters, heated floors, heating cables, heat fans.

Features

PTOT001

Contact type

NC

Adjustment range

0-60 °C

Potentiometer color

Red

250 V AC / 120 V AC

10 (2) A

Sensor type

Bimetallic

Contact type

Snap action

Lifespan

> 100,000

Electrical connection

2-pole terminal, screw terminals

Plastic material

UL94 V0 ABS Non-flammable

Degree of protection

IP20

Operating temperature

-25 / +80 °C

Storage temperature

-45 / +80 °C

Installation

DIN rail 35 mm

Dimensions HxWxD

61x34x38 mm

Weight

43g
