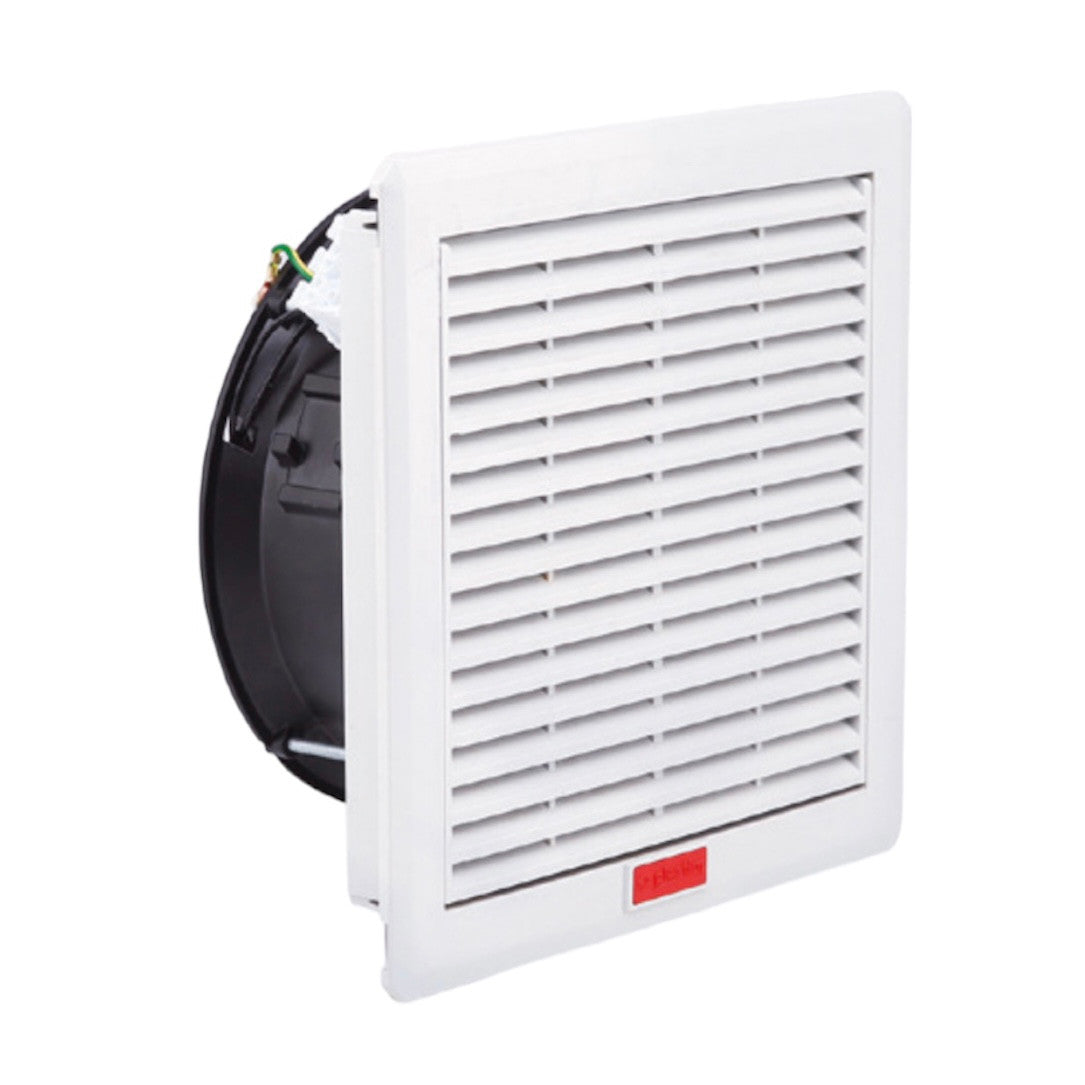

Fan with filter, 175 (245) m3/h, 210x210, 230V 50/60Hz IP54 PTF3000 Plastim

Ventilation grille with fan and filter, size 210x210 mm, for installation in electrical panel, automation cabinet, ATM or gaming terminal. PTF3000, manufacturer Plastim (Türkiye)

Used for drawing in external air for electrical cabinets, ATMs, payment terminals, gaming machines, automation cabinets, control panels, gas stations. Typically installed in the side walls of cabinets to maintain IP.

The ventilation grille is equipped with a removable filter. This filter cartridge can be easily replaced or cleaned and reused.

• External dimensions: 210x210x92 mm
• Installation dimensions: 175x175 mm
• Flow volume: 125 (175) m3/h
• Noise level: 52 (53) dB(A)
• Bearing: ball bearing
• Operating voltage: 220-230 VAC, 50/60 Hz
• Current consumption: 0.23 (0.22) A
• Rated power: 37 (35) W
• Electrical connection: 3-pole terminal
• Flow direction: Outside in (can be changed)
• Operating temperature: -10/+70 °C
• Protection degree: IP54
• Plastic material: UL94 V0 ABS Flame retardant
• Sealing: polyurethane seal
• Color: RAL 7035 (RAL 7032 on request)
• Weight: 1.45 kg
• Installation: quick fastening

To ensure automatic air exchange and temperature maintenance with this fan, you will need either a standard bimetal thermostat or a more complex temperature controller, both of which can be purchased from our website.
