Fan with filter, 240 (270) m3/h, 260x260, 230V 50/60Hz IP54 PTF3500 Plastim

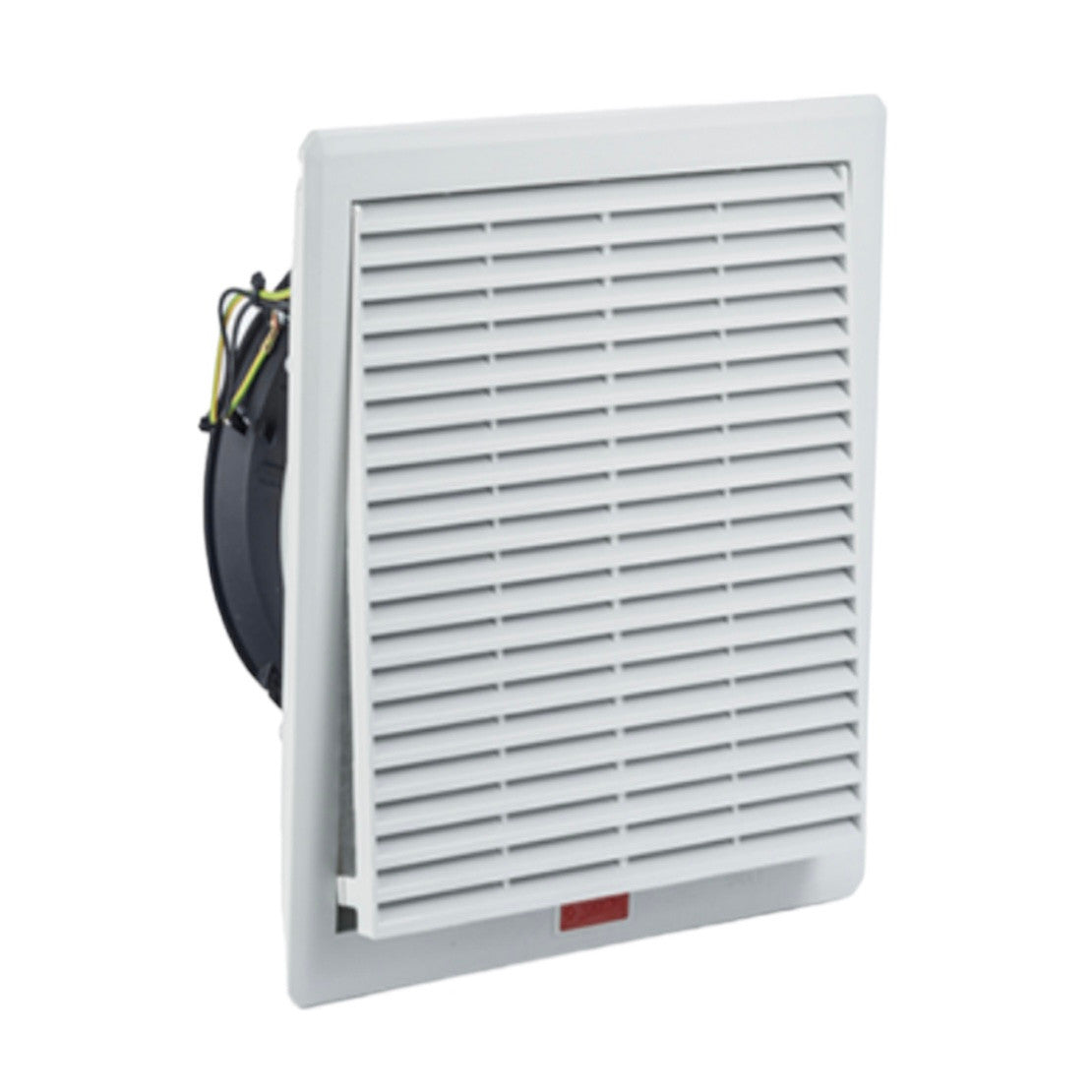

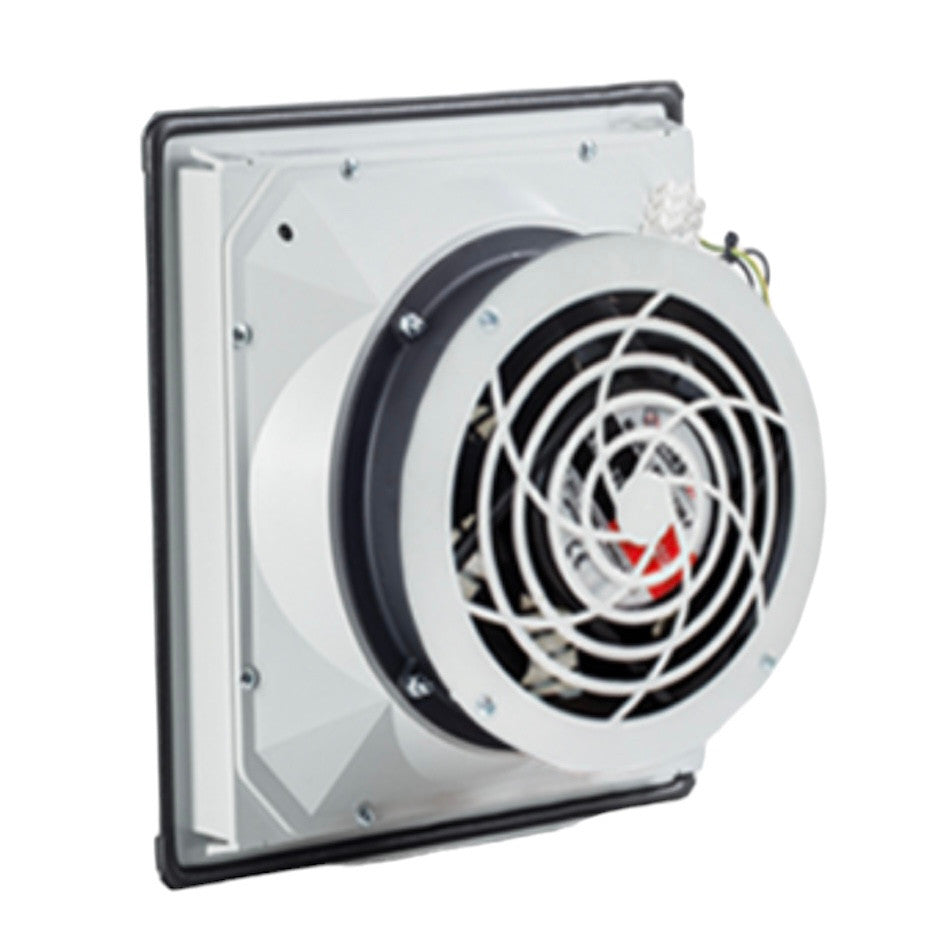

Ventilation grille with fan and filter, size 260x260 mm, for installation in an electrical panel, automation cabinet, ATM, or gaming terminal. PTF3500, manufacturer Plastim (Türkiye)

Used for drawing in external air for electrical cabinets, ATMs, payment terminals, gaming machines, automation cabinets, control panels, gas stations. Typically mounted on the side walls of cabinets to maintain IP protection.

• External dimensions: 260x260x103 mm
• Mounting dimensions: 223x223 mm
• Airflow volume: 240 (270) m3/h
• Noise level: 52 (53) dB(A)
• Bearing: ball bearing
• Operating voltage: 220-230 VAC, 50/60 Hz
• Current consumption: 0.23 (0.22) A
• Rated power: 37 (35) W
• Electrical connection: 3-pole terminal
• Flow direction: Outside to inside (can be reversed)
• Operating temperature: -10/+70 °C
• Protection rating: IP54
• Plastic material: UL94 V0 ABS flame retardant
• Sealing: polyurethane seal
• Color: RAL 7035 (RAL 7032 on request)
• Weight: 1.6 kg
• Mounting: quick fastening

To ensure automatic air exchange and temperature maintenance with this fan, you will need either a simple bimetallic thermostat or a more advanced temperature controller, both of which can be purchased from our website.

The ventilation grille is equipped with a replaceable filter. This filter cartridge can be easily replaced or cleaned and reused.
