Plastim

Fan with filter, 30 (41) m3/h, 120x120, 230V 50/60Hz, IP54 PTF1000 Plastim

In stock - 105 items available
SKU: PTF1000
49.57 лв including VAT

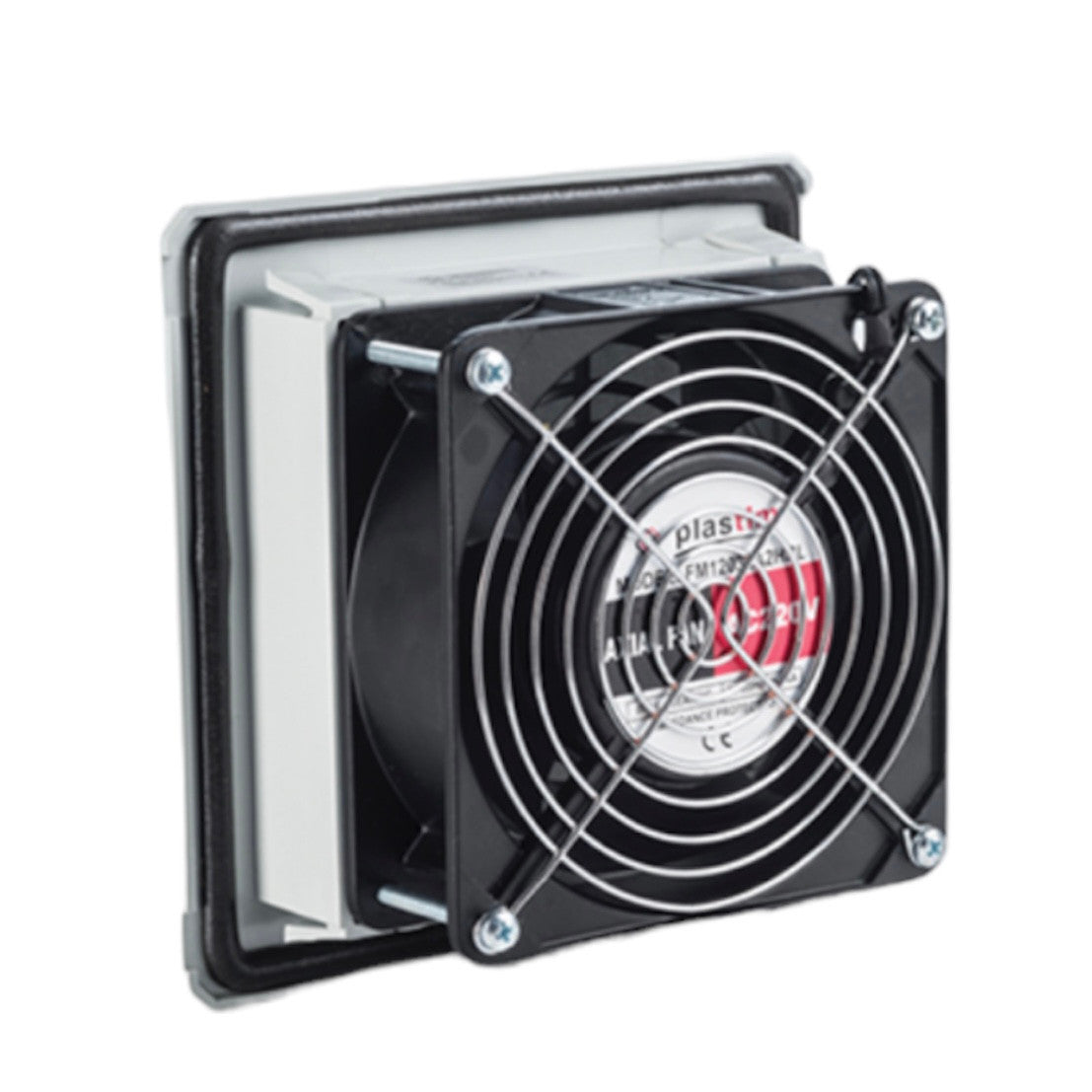

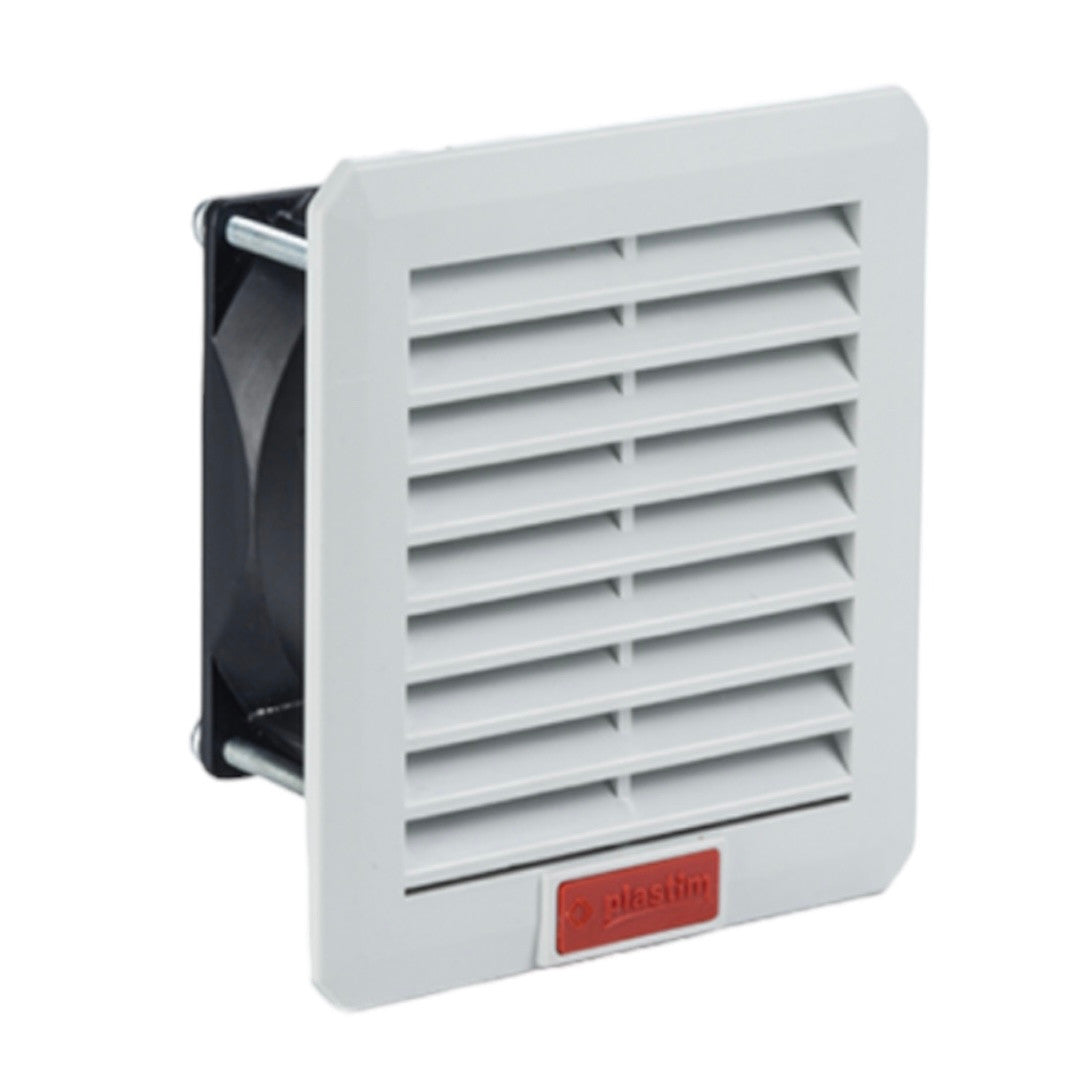

Ventilation grille with fan and filter, size 120x120 mm, for installation in electrical panel, automation cabinet, ATM or gaming terminal. PTF1000, manufacturer Plastim (Turkey)

Used for drawing in outside air for electrical cabinets, ATMs, payment terminals, gaming machines, automation cabinets, control panels, gas stations. Typically installed in the side walls of cabinets to maintain IP.

  • External dimensions: 120x120x58.5 mm
  • Installation size: 92x92 mm
  • Flow volume: 30 (41) m3/h
  • Noise level: 28 (31) dB(A)
  • Bearing: Sleeve type bearing
  • Operating voltage: 220-230 VAC, 50/60 Hz
  • Current consumption: 0.08 (0.07) A
  • Rated power: 14 (13) W
  • Electrical connection: Lead wire
  • Flow direction: From outside to inside (can be changed)
  • Operating temperature: -10/+70 °C
  • Protection degree: IP54
  • Plastic material: UL94 V0 ABS Flame retardant
  • Sealing: self-adhesive
  • Color: RAL 7035 (RAL 7032 on request)
  • Weight: 0.4 kg
  • Installation: quick fastening

To ensure automatic air exchange and temperature maintenance with this fan, you will need either a standard bimetal thermostat or a more complex temperature controller, both of which can be purchased from our website.

The ventilation grille is equipped with a replaceable filter. This filter cartridge can be easily replaced or cleaned and reused.
