Electronic pulse counter / pulse counter + -

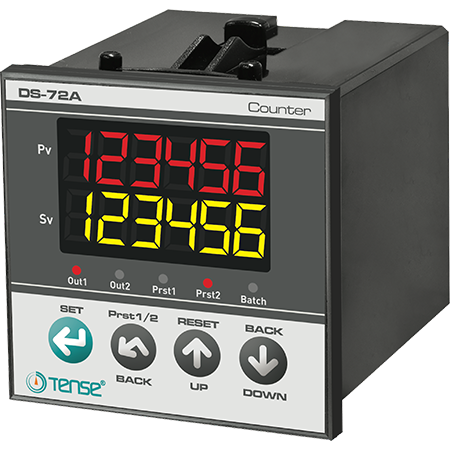

Electronic pulse counter / pulse counter

Counter relays are designed to perform different tasks depending on the input pulses.

• Counter with two forward/reverse contacts

• Input for counter, proximity sensor and incremental encoder

• Password protection

• Selectable input frequency

• Calibration constant; 0.00001.....9.99999

• Selectable decimal point; 1. ..... 5. Digits

• 7 input/10 output function options

• Adding "OFFSET" to the reporting value

• PRESET1: absolute/relative value option

• OUTPUT: Detection or pulse 0.1.....999.9 seconds

• Loading the count value and OUT status at the last power failure after the first power-up

• RESET via front panel

• EEPROM memory for storing settings
