MUCCO

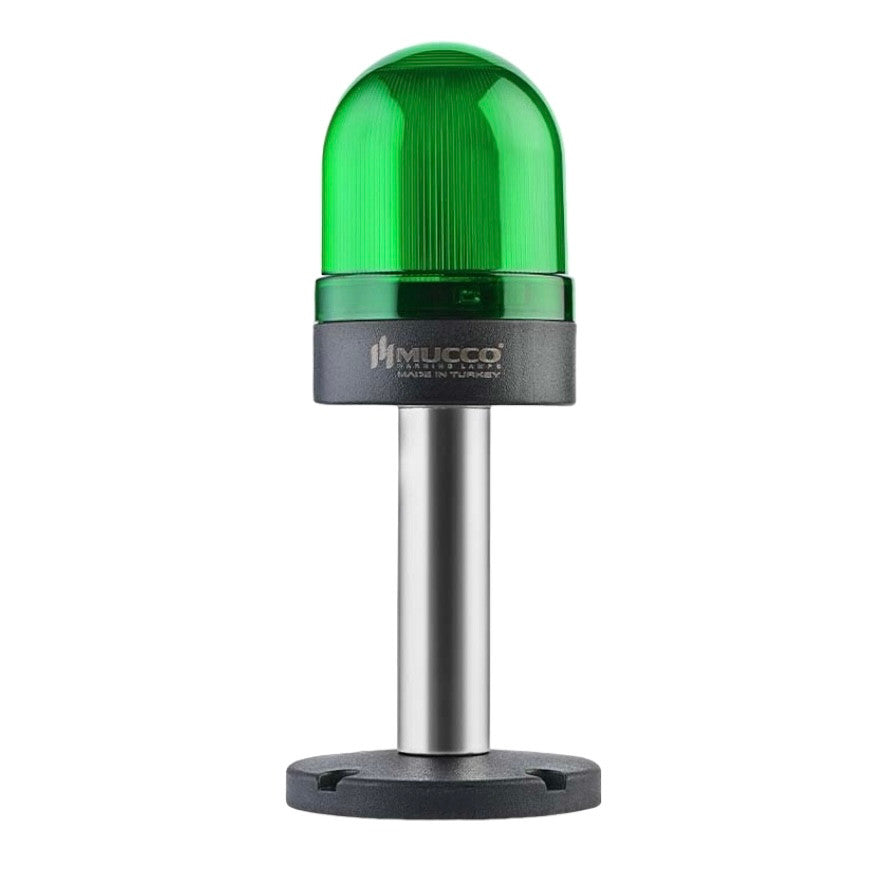

Green signal light series 70 with nut connection

In stock - 5 items available
SKU: SNT-S715-FB-2-10T
74.21 лв including VAT
variant

Green signal lamp series 70 with nut, 12-24, 40-250V AC/DC, manufacturer MUCCO (Turkey)


OPTIONS FOR LENS 70

LIGHT TYPE Flashing

Sound signal options with sound signal

EXTENSION TUBE 10 cm

TECHNICAL DATA

  • Category.
  • Current:

24V/DC (without buzzer): 110mA ±10%

24V/DC (with sound signal): 10% 10V/DC (with sound signal): 150mA ±10%

40~250V AC/DC (without buzzer): 10/10 mA: 78mA ±10% 50-60 Hz

40~250V AC/DC (with buzzer): 60-60 Hz: 95mA ±10% 50-60 Hz

  • Body material: ABS (body) + polycarbonate (lens)
  • Lens colors: red, green, yellow, blue, white

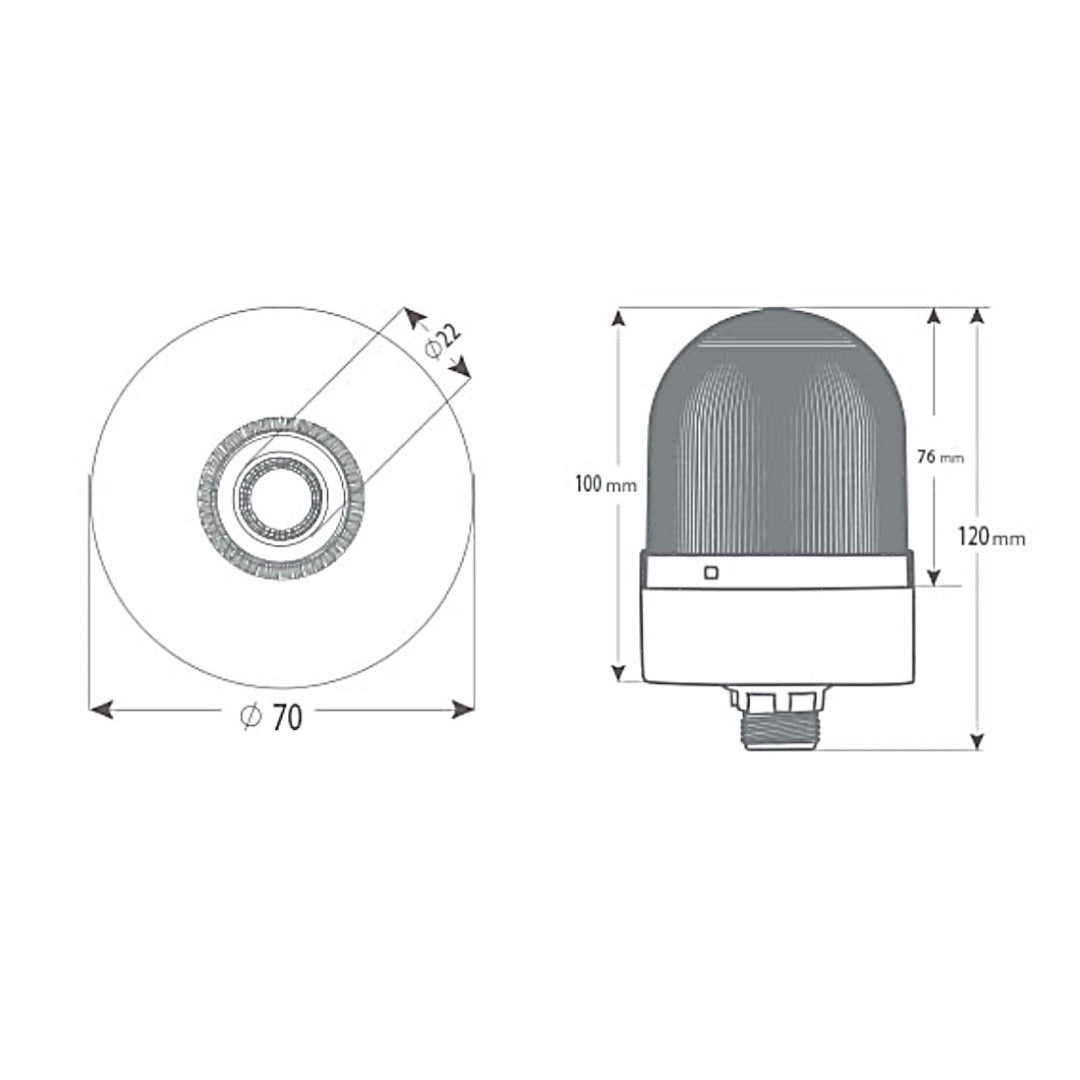

  • Lens diameter: ø70 mm (nut M22 - connection)
  • Light source: LIGHT SOURCE: SMD LED
  • Light mode: Light mode: constant, flashing
  • Input reaction time: on/off: max. 10 ms
  • Tone: (cable control): 1 tone
  • Alarm: 104~107 dB at 1 m (3.3 feet)
  • Connection: cable connection:
  • Surface mount, wall mount Mounting type.
  • Operating conditions: from -20°C to +50°C (from -4°F to +122°F)
  • Expected lifespan: Lifespan: min. 50,000 hours
  • Protection degree: IP65
  • Protection: Resistance to water, dust, heat, and UV rays
  • Certificates and quality documents: ISO-9001, CE, RoHS2, and EAC
