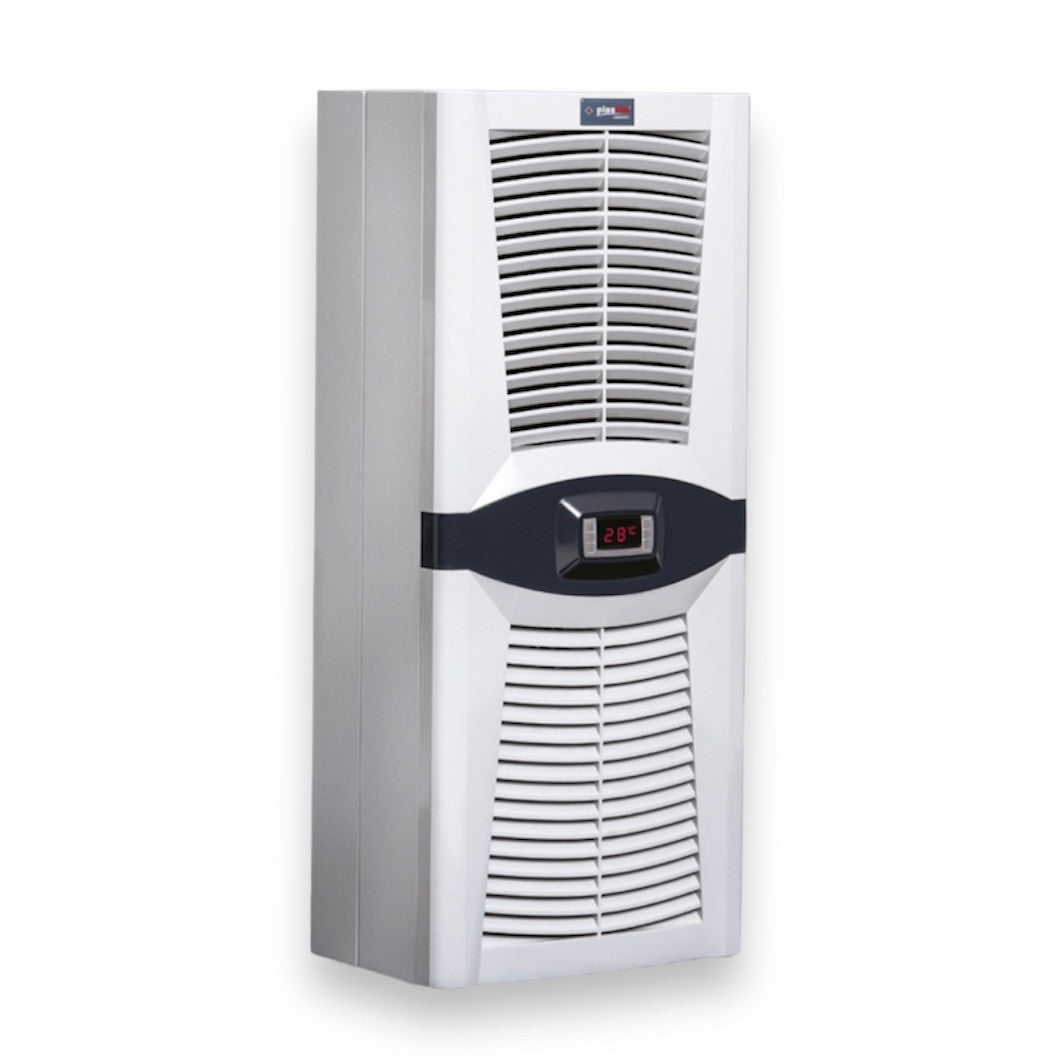

"Design Series" air conditioner for distribution board/cooler 1100 Watt / 3800BTU for side or wall mounting on distribution boards and automation panels.
The PAD1100.01 (PLASTIM) air conditioner for distribution boards is equipped with a modern open-type rotary compressor from HIGHLY, a Dixell thermostat, a condensate evaporator, and a limit switch for controlling the opening of the distribution board door.
The package includes everything necessary for installing the air conditioner for the cabinet - seals, drain pipe, mounting screws, power connector.
| TECHNICAL DATA | PAD1100.01 |
| Cooling capacity L35 / L35 | 1100W / 3800BTU |
| Operating voltage | 230VAC |
| Frequency | 50/60 Hz |
| Starting current | 7.2A |
| Operating current | 2.5A |
| Fuse | 10A |
| Power consumption | 575W |
| Operating range | 0-55 °C |
| Factory setting of the thermostat | 35 °C |
| Differential | 4 °C |
| Max. air volume internal circuit | 340 m³/h |
| Max. air volume in the external circuit | 590 m³/h |
| Type of refrigerant | R134a |
| Refrigerant quantity | 310gr |

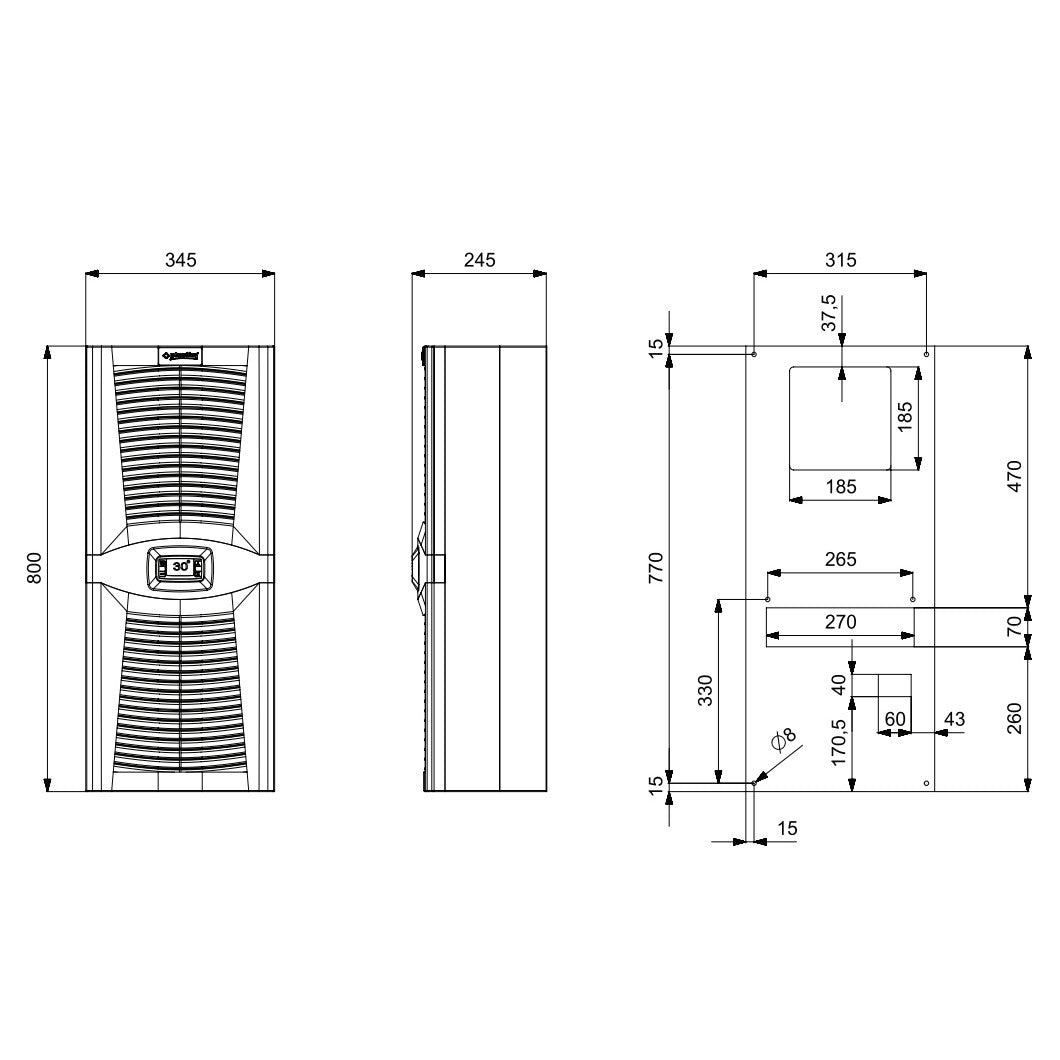

| Dimensions | 800x345x223mm |
| Weight | 32 kg |
| Sound level | 76dB |
| Degree of protection (internal circuit) | IP 54 |
| Degree of protection (external circuit) | IP 34 |
| Color | RAL7035 |
| Compressor | HIGHLY/HITACHI |
| Compressor type | Rotary |
| Fans | EBMPAPST |
| Mounting method | Wall mounting |
