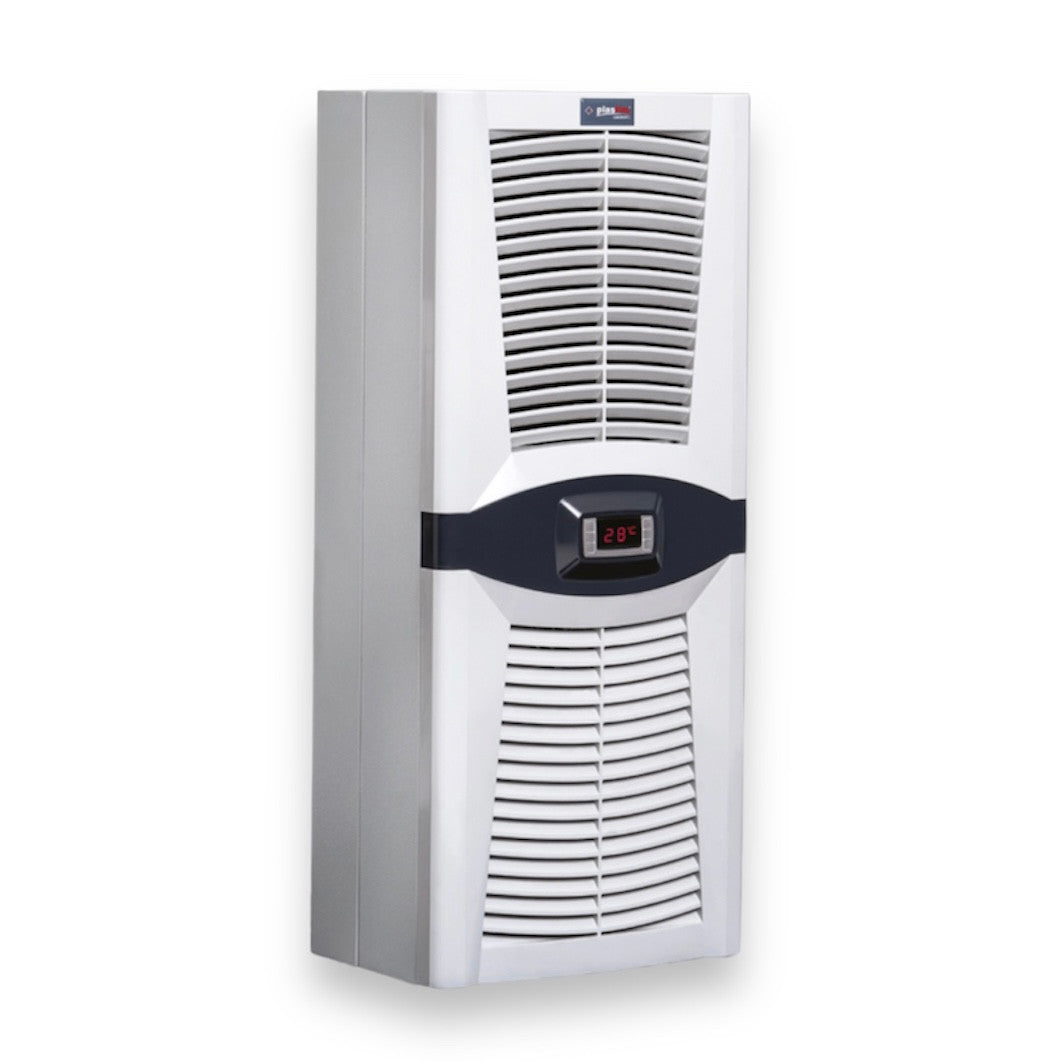

Air Conditioner for Distribution Boards / Cooler 1600W, PAD1600.01, Plastim

In stock - 7 items available
SKU: PAD1600.01
Common price 3,408.08 лв including VAT

Air conditioner for distribution panel/cooler 1600 W (Design series) for distribution panel and automation panel for side or wall mounting.

The air conditioner for the distribution panel PAD1600.01 (PLASTIM) is equipped with the latest open-type rotary compressor from HIGHLY, Dixell thermostat, condensate evaporator, and a limit switch for controlling the opening of the distribution panel door.

Everything necessary for installing the air conditioner for the cabinet is included - seals, drain pipe, mounting screws, power connector.

TECHNICAL DATA

PAD1600.01

Cooling capacity L35 / L35

1600W / 5500BTU

Operating voltage

230VAC

Frequency

50/60 Hz

Starting current

8A

Operating current

3.2A

Fuse

10A

Power consumption

725W

Operating range

0-55 °C

Factory setting of the thermostat

35 °C

Differential

4 °C

Max. air volume internal circuit

510 m³/h

Max. air volume in the external circuit

510 m³/h

Type of refrigerant

R134a

Refrigerant quantity

600 g.

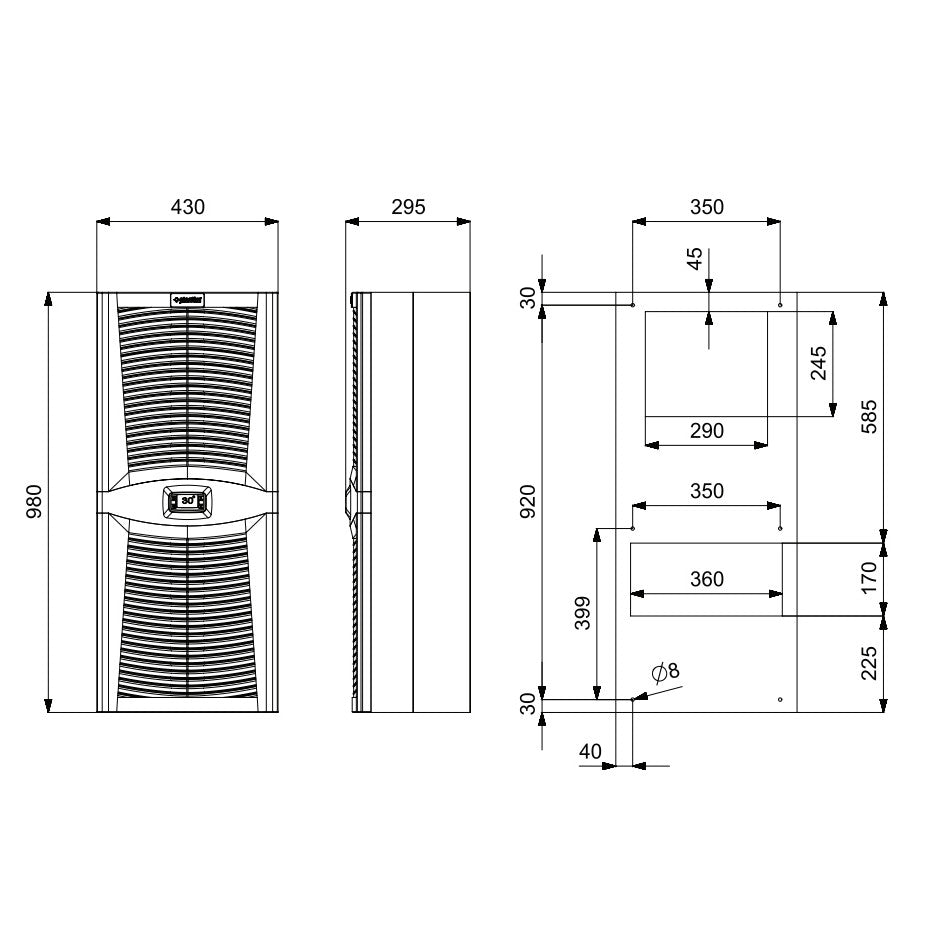

Dimensions

980x430x270mm

Weight

45 kg

Sound level

79dB

Degree of protection (internal circuit)

IP 54

Degree of protection (external circuit)

IP 34

Color

RAL7035

Compressor

HIGHLY/HITACHI

Compressor type

Rotary

Fans

EBMPAPST

Mounting method

Wall mounting
