Air Conditioner for Distribution Boards / Cooler 2500W, PAD2500.01, Plastim

Sold
SKU: PAD2500.01
Common price 4,124.12 лв including VAT

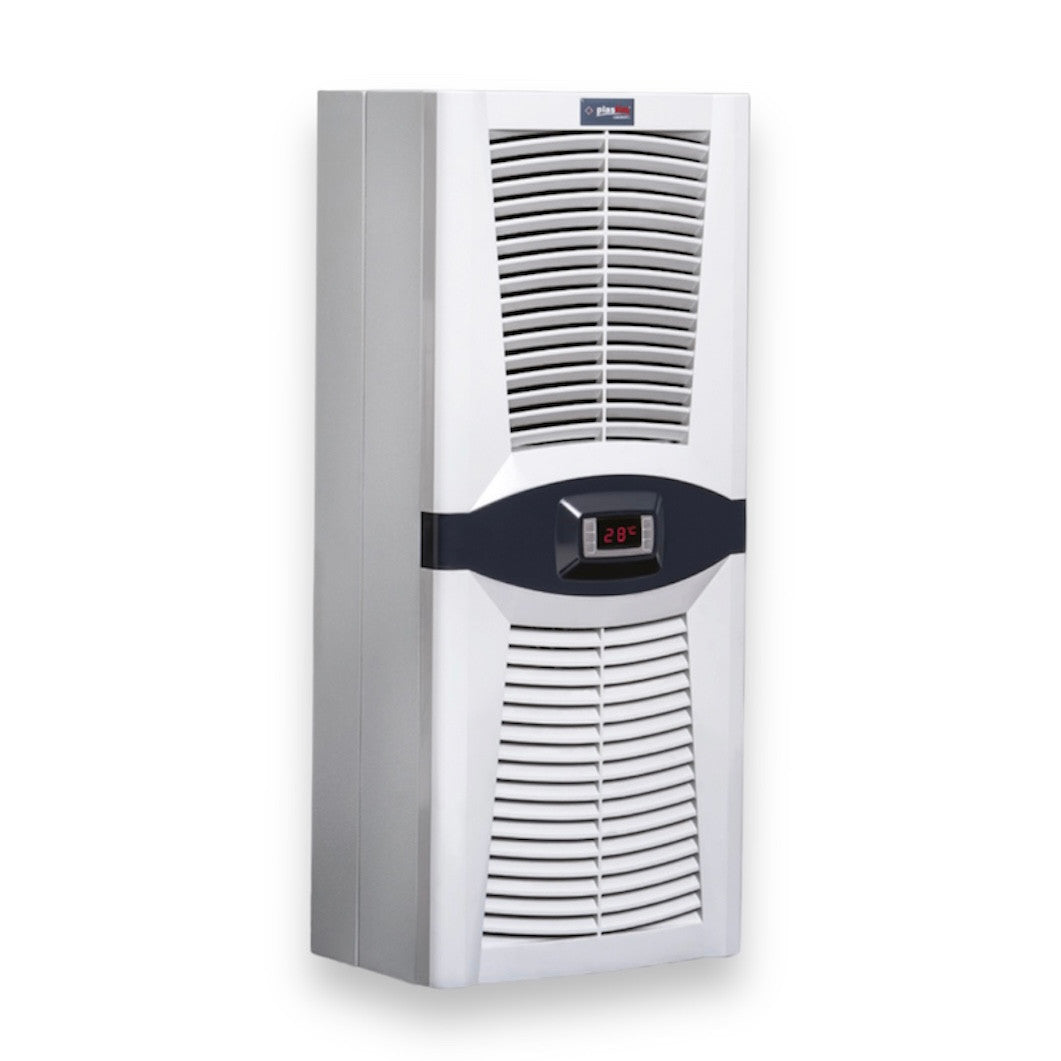

The "Design Series" air conditioner for distribution board/cooler 2500 Watt / 8550BTU for side or wall mounting of distribution boards and automation panels.

The PAD2500.01 (PLASTIM) air conditioner for distribution boards is equipped with a modern open-type rotary compressor from HIGHLY, a Dixell thermostat, a condensate evaporator, and a limit switch for controlling the opening of the distribution board door.

The package includes everything necessary for installing the air conditioner for the cabinet - seals, drain pipe, mounting screws, power connector.

TECHNICAL DATA

PAD2500.01

Cooling capacity L35 / L35

2500W / 8550BTU

Operating voltage

230VAC

Frequency

50/60 Hz

Starting current

11A

Operating current

3.8A

Fuse

16A

Power consumption

800W

Operating range

0-55 °C

Factory setting of the thermostat

35 °C

Differential

4 °C

Max. air volume internal circuit

510 m³/h

Max. air volume in the external circuit

625 m³/h

Type of refrigerant

R134a

Refrigerant quantity

750 g

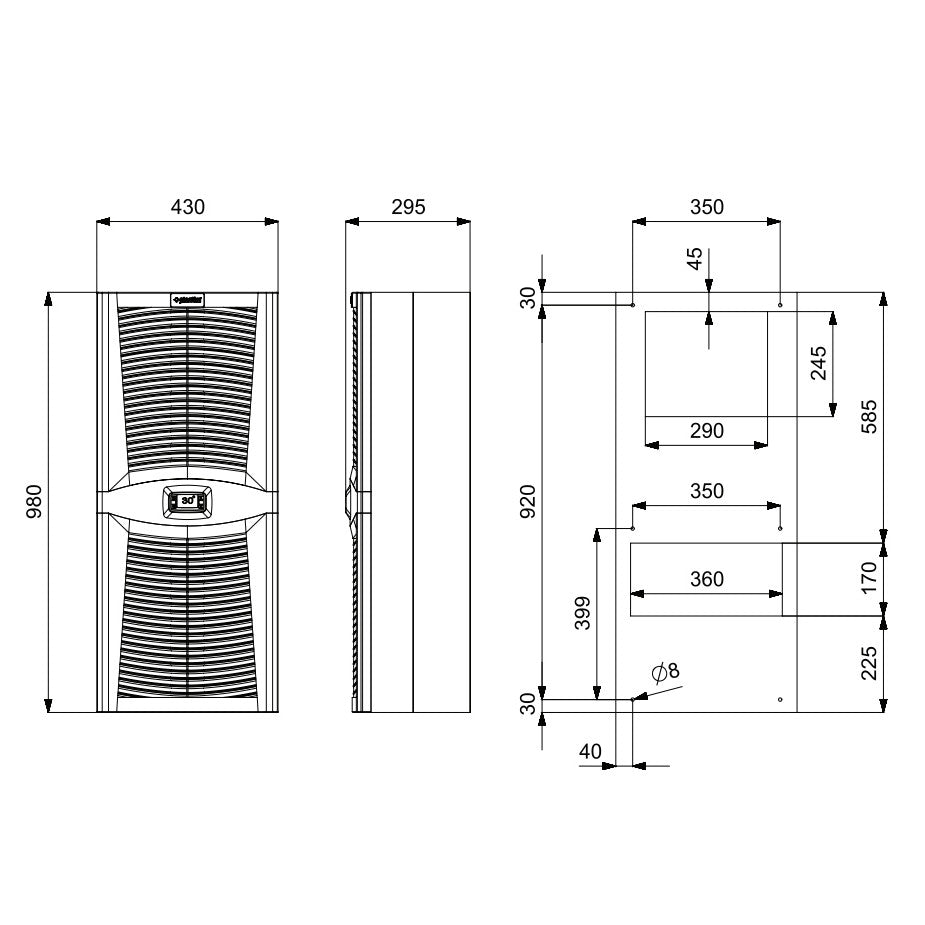

Dimensions

980x430x270mm

Weight

47 kg

Sound level

82dB

Degree of protection (internal circuit)

IP 54

Degree of protection (external circuit)

IP 34

Color

RAL7035

Compressor

HIGHLY/HITACHI

Compressor type

Rotary

Fans

EBMPAPST

Mounting method

Wall mounting
