Vendor: Plastim

Air Conditioner for Distribution Boards / Cooler 550W, PAD0550.01, Plastim

Barcode: PAD0550.01
€1.330,91 €1.109,09 excl. VAT
€1.330,91 €1.109,09 excl. VAT
Low stock: 1 left
All items are in stock and shipped from the Czech Republic. Delivery takes 3–8 days.
  • Description
  • Instructions
  • Payment methods
  • Warranty

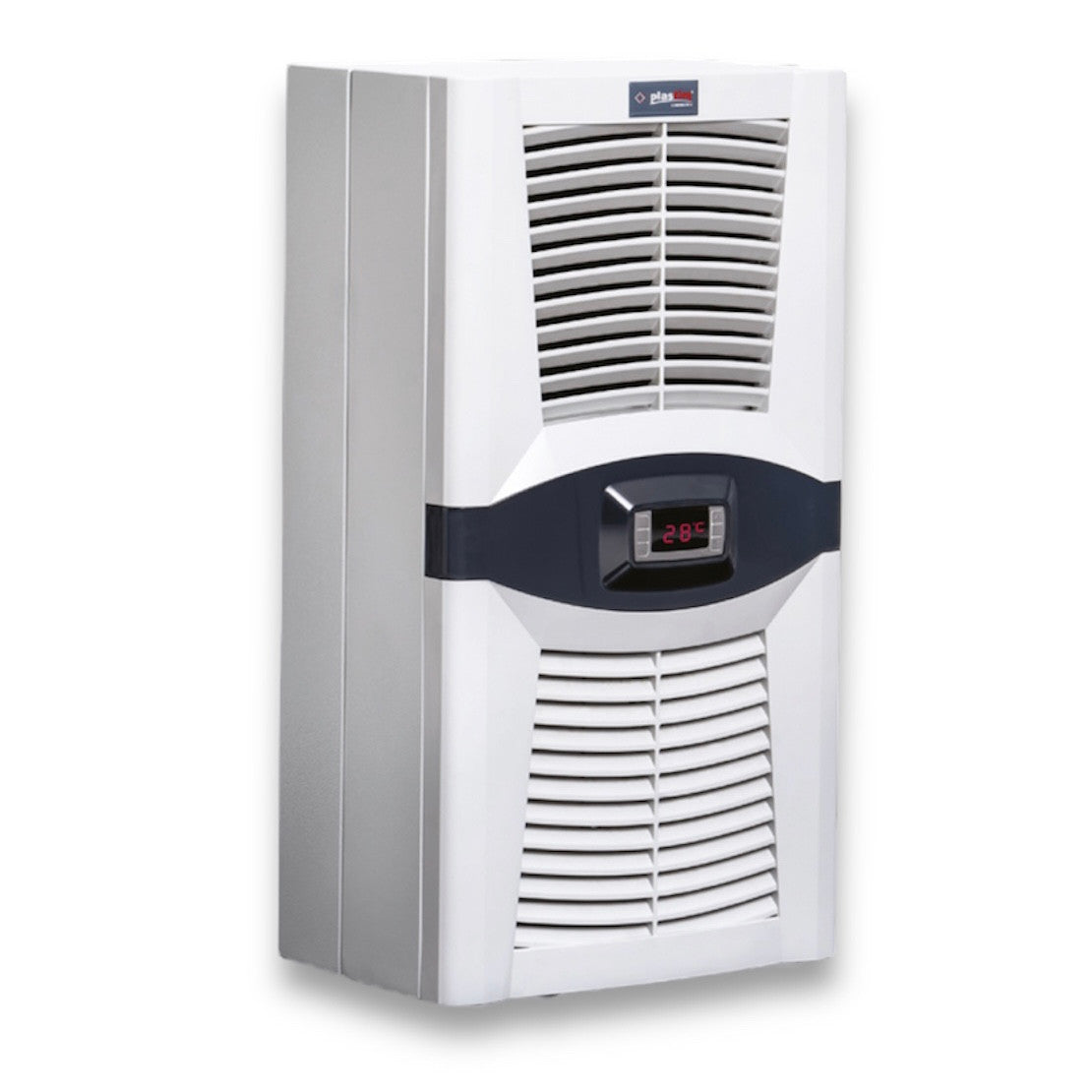

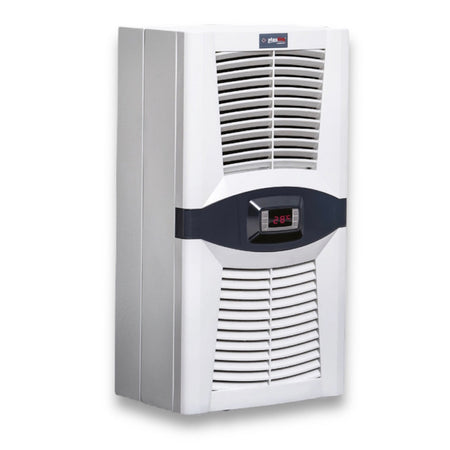

"Design Series" air conditioner for distribution panel / cooler 550 Watt / 1900BTU for distribution panel and automation panel side or wall mounting.

The PAD0550.01 (PLASTIM) air conditioner for distribution panels features the latest open-type rotary compressor from HIGHLY, Dixell thermostat, condensate evaporator, and limit switch for controlling the opening of the distribution panel door.

Includes everything needed to install the cabinet air conditioner - seals, drain pipe, mounting screws, power connector.

TECHNICAL DATA PAD0550.01
Operating power L35 / L35 550W / 1900BTU
Operating voltage 230VAC
Frequency 50/60 Hz
Starting current 1.2A
Operating current 1.1A
Fuse 6A
Power consumption 330W
Operating range 0-55 °
Thermostat factory settings 35 °
Differential 4 °
Max. air volume internal circuit 340 m³/h
Max. air volume external circuit 505 m³/h
Refrigerant type R134a
Refrigerant quantity 245gr

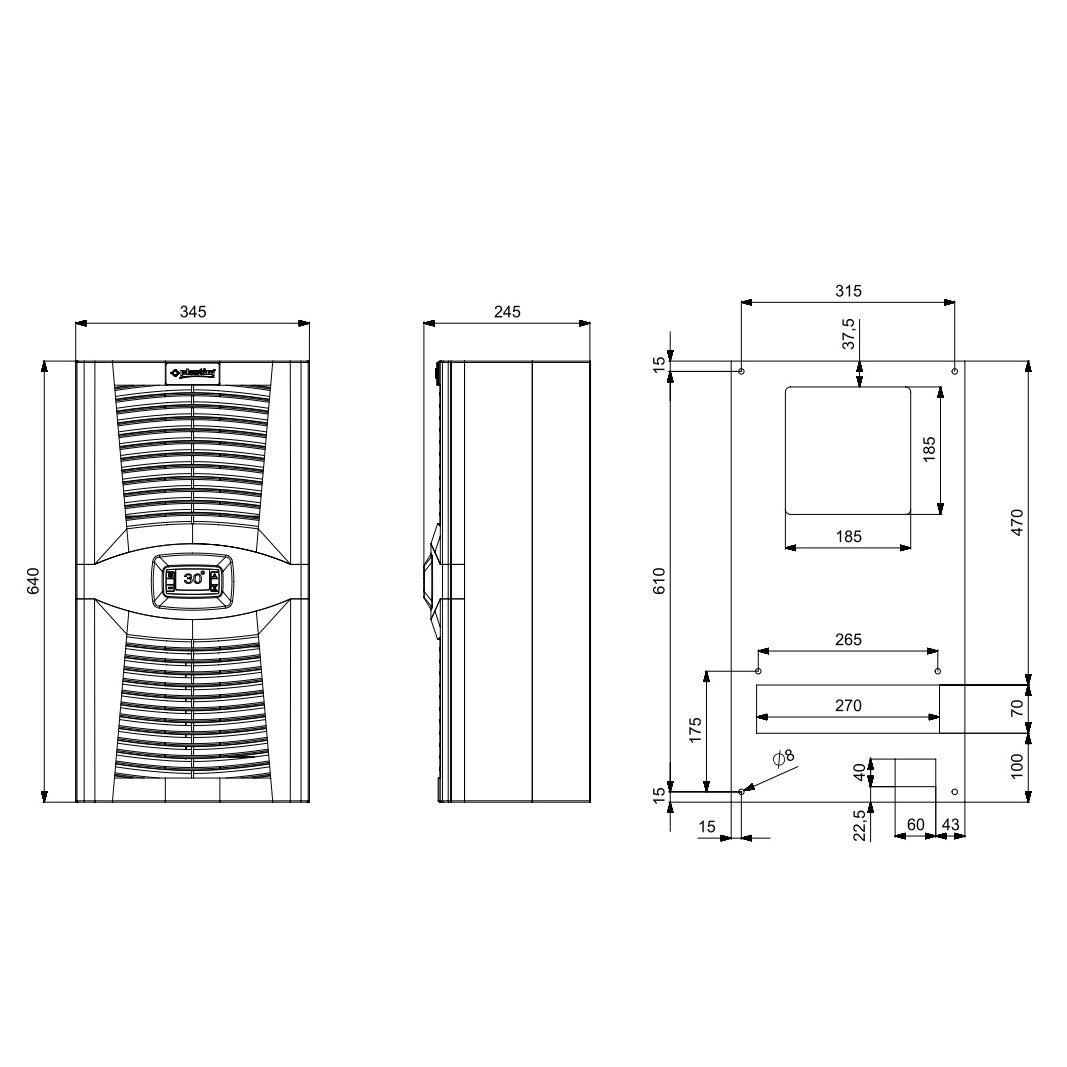

Dimensions 640x345x223mm
Weight 27kg
Noise level 76dB
Protection rating (internal circuit) IP 54
Protection rating (external circuit) IP 34
Color RAL7035
Compressor HIGHLY/HITACHI
Compressor type Rotary
Fans EBMPAPST
Mounting method Wall mounting

Manual

https://files.principalelektrik.org/Design%20Series%20Ac%20User%20Manual%20English.pdf
