Air Conditioner for Distribution Boards / Cooler 850W, PAD0850.01, Plastim
Failed to load pickup availability

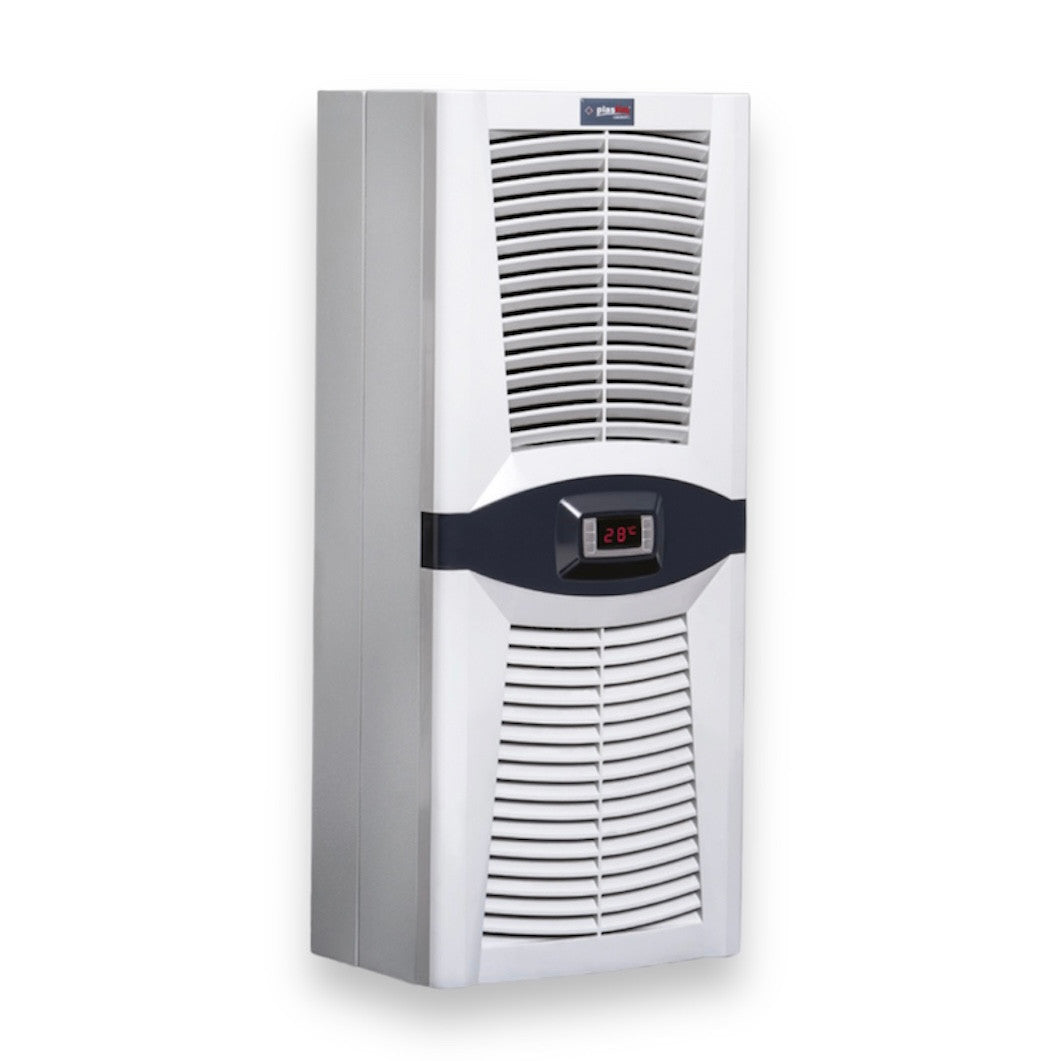

"Design Series" air conditioner for distribution panel/cooler 850 Watt / 2990BTU for distribution panel and automation panel side or wall mounting.
The air conditioner for distribution panels PAD08500.01 (PLASTIM) is equipped with a modern open-type rotary compressor from HIGHLY, a Dixell thermostat, a condensate evaporator, and a limit switch for controlling the opening of the distribution panel door.
The package includes everything necessary for installing the air conditioner for the cabinet - seals, drain pipe, mounting screws, power connector.
| TECHNICAL DATA | PAD0850.01 |
| Cooling capacity L35 / L35 | 850W / 2900BTU |
| Operating voltage | 230VAC |
| Frequency | 50/60 Hz |
| Starting current | 6A |
| Operating current | 1.7A |
| Fuse | 10A |
| Power consumption | 394W |
| Operating range | 0-55 °C |
| Factory setting of the thermostat | 35 °C |
| Differential | 4 °C |
| Max. air volume internal circuit | 340 m³/h |
| Max. air volume in the external circuit | 505 m³/h |
| Type of refrigerant | R134a |
| Refrigerant quantity | 290gr |
| Dimensions | 800x345x223mm |
| Weight | 30 kg |
| Sound level | 76dB |
| Degree of protection (internal circuit) | IP 54 |
| Degree of protection (external circuit) | IP 34 |
| Color | RAL7035 |
| Compressor | HIGHLY/HITACHI |
| Compressor type | Rotary |
| Fans | EBMPAPST |
| Mounting method | Wall mounting |
