Microprocessor step/profile PID temperature controller

PID temperature controller, for panel and machine/control panel mounting, relay outputs, measurement range -100°C ... +1750°C, resolution / step 0.1ºC, 20 temperature degrees / heating degrees (made in Turkey, TENSE)

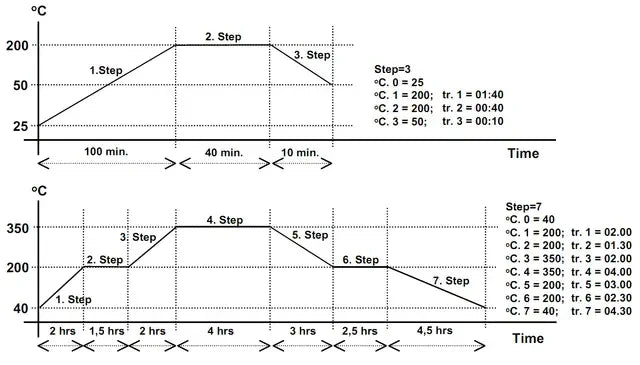

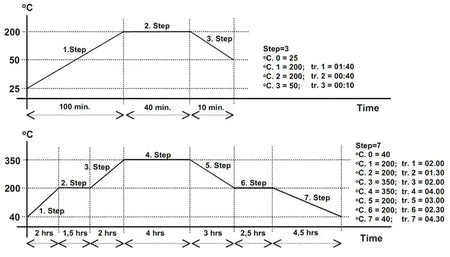

As you can see from the above diagrams, unlike cheap analogs, the TENSE thermostat allows you to set limit points for temperature and the time required for the temperature to reach the set points. This significantly simplifies the programming process. Additionally, the PID mode allows you to maintain the system temperature as close as possible to the set points.

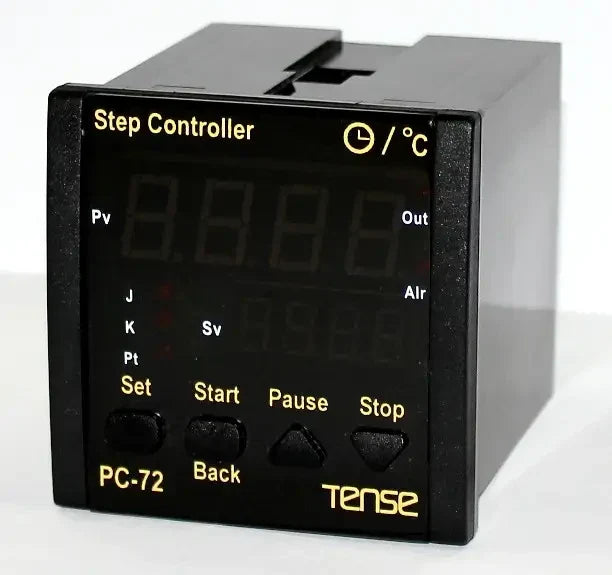

An important difference from the competition is the simultaneous indication of the current temperature, set point temperature, setting step, and time. The presence of START/STOP/PAUSE/SET control buttons on the front panel is very convenient - this provides quick and effective control of your processes.

Temperature control is performed by switching on/off or PID control. The controller offers self-optimization, which prevents exceeding the process values.

• Automatic tuning of PID parameters

• Setting up to 20 temperature/heating degrees

• Each step can be programmed for up to 18 hours of operation

• Sensor type: T/C (J,K,T,S,R), Pt100
• Selectable control type: P, PI, PD, PID or ON-OFF

• Automatic removal of 'exceedance' in PID mode

• Overrun protection

• Delay on switch-on for OUT in cooling mode

• Password protection

• EEPROM memory for saving settings

• Relay outputs OUT (NO+NC) 250 VAC, 2A

The measurement range depends on the sensor and can be set with the buttons on the temperature controller.

Please do not forget to order our temperature sensors - type J Fe-Const thermocouple (metric 6/8) with a temperature measurement range of: -100 °C - +600 °C. They can be with a cable length of 1 m, 1.5 m, 2 m, 2.5 m, 3 m, 4 m, and 5 m.
