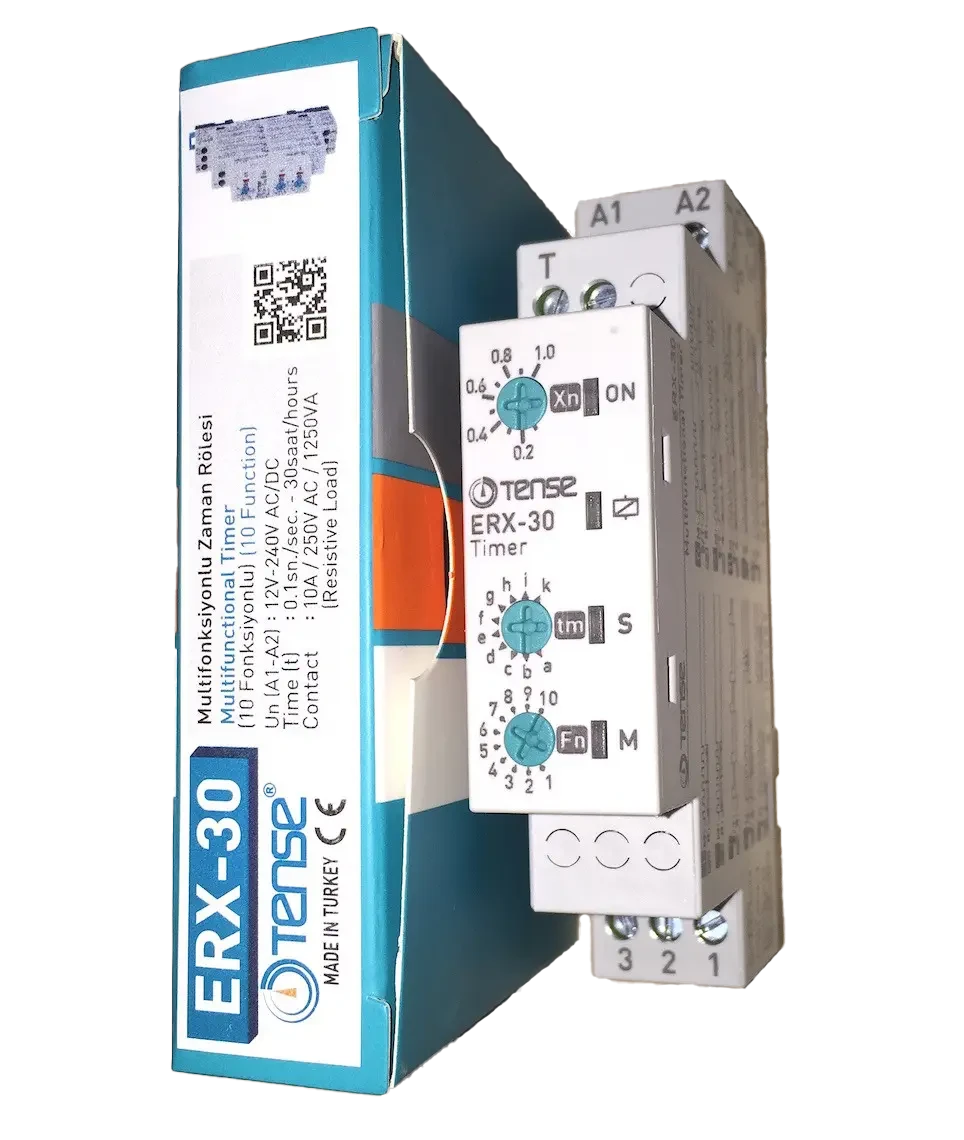

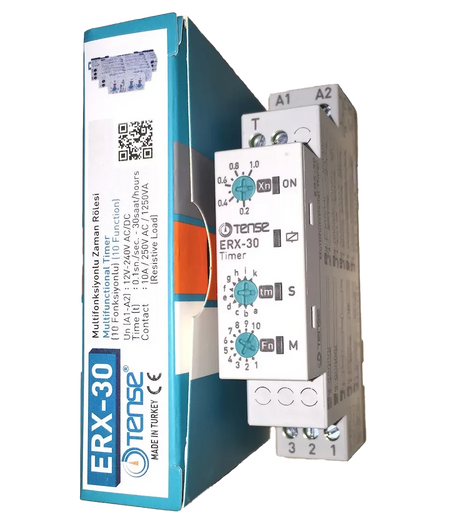

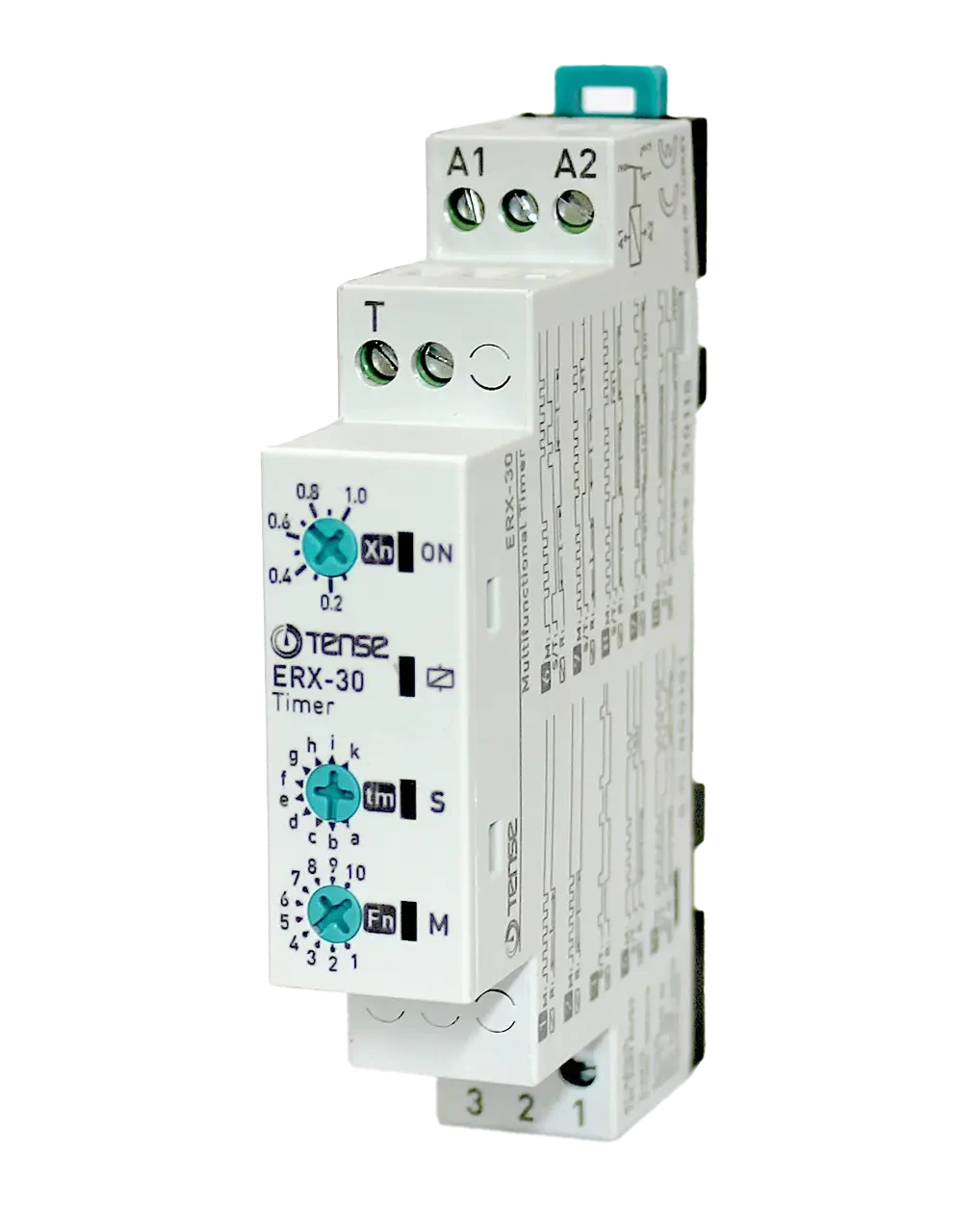

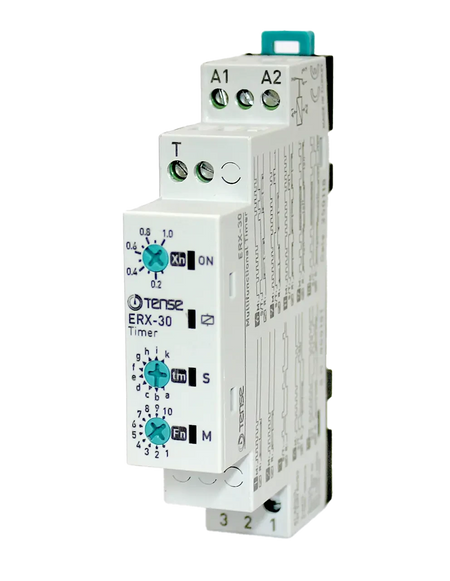

Multifunction time relay Time range: 0.1 s - 30 h 12V-240V AC/DC

Multifunction time relay (10 functions) 12V - 240V AC/DC with 1 changeover contact.

The time relay is multifunctional, designed to control time processes in automation systems in production and household. This relay can be used in industrial equipment - coffee or seed roasting, meat product preparation, packaging / wrapping lines, as well as in houses or apartments, for example, to control a toilet fan or staircase lighting.

The ten built-in time functions cover a wide range of tasks: for example, for organizing automatic ventilation processes, opening/closing windows, periodically switching on heating or ventilation, for illuminating or rotating advertising signs, in washing machines, bouncing control inputs, rotation - delay on, delay off, delay on and off at the same time, etc.

It should be noted that this time relay is also universal in terms of operation - it can operate with alternating and direct current in the range from 12 to 240 V!

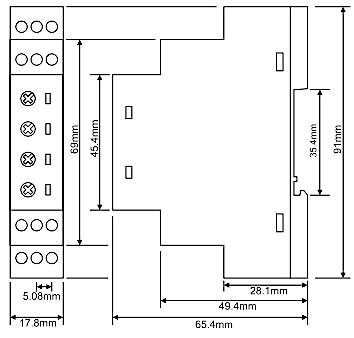

The time relay is mounted on a standard 35 mm DIN rail

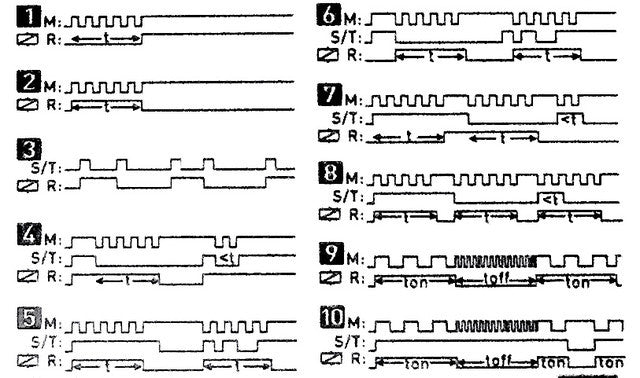

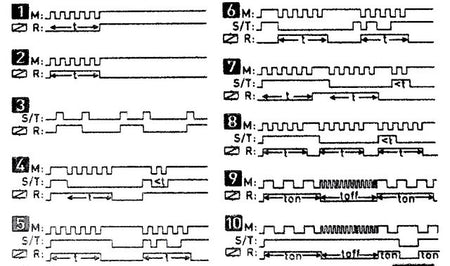

• Bistable Relay 12 V 24 V 48 V 110 V 230 AC DC
• Slow start 12v 24V 48v 110v 230 AC DC
• Delayed return 12 V 24 V 48 V 110 V 230 AC DC
• Flasher for intermediate start 12v 24V 48v 110v 230 AC DC
• Delayed start after switching and delayed 12v 24v 48v 110v 230 AC DC
• Flasher for intermediate start 12v 24V 48v 110v 230 AC DC
• Delayed start after switching on and delayed return after switching off the control contact (ON/OFF DELAY) 12v 24V 48v 110v 230 AC DC
• Pulse generator 12v 24V 48v 110v 230 AC DC
• SINGLE SHOCK falling edge 12v 24V 48v 110v 230 AC DC
• Delayed return after single shot 12v 24V 48v 110v 230 AC DC

The universal time relay ERX-30 easily replaces more expensive analogues on the market - E1ZM10, MUR3, MXR1, IZT, E1ZMQ10, MFZ12-230V, ZR-67-BAT, CRM-91H, PCU-511, PCU-520, RF-520, 810.230.00001, 83.02.0.240, PCA-511, RF-511, REV-201, REV-120, CT-MHD, THC-M1, PCU-501, PCU-530, PCM-10, 600XU-A-1-CU, BMR TRF10, CRM-91H /UNI , MCR-MB-003, MCR-MA-003
