PTC Heater for Mini Distribution Boards 25W, MPHT25, Plastim

Mini electric (PTC Body heater, post-tension heater) heater for distribution panels with anodized aluminum radiator and overcurrent protection, for DIN rail mounting, 25 watts, 110-220 volts AC or DC, MPHT25, Plastim - made in Turkey.

• Heating power: 25 W

• Operating voltage: 100-250 V AC/DC

• Maximum current: 2A

• Type of heating element: Self-regulating PTC resistor

• Overcurrent protection: Electronic thermal overload relay

• Electrical connection: 30 cm lead wire, N-L-E

• IEC protection class: class II

• Protection class: IP20

• Operating temperature: -45 / +70 °C

• Storage temperature: -45 / +70 °C

• Heat dissipation: Anodized aluminum profile

• Mounting: 35 mm DIN rail

• Mounting position: Best efficiency in vertical position

• External dimensions: 70x50x27mm

• Weight: 0.12 kg

Heating elements are used to maintain temperature and reduce humidity levels in electrical panels, automation cabinets, ATMs, payment terminals, and other electronic devices. Previously, incandescent lamps were used for these purposes - but it is clear that this method does not comply with modern strict requirements for electrical equipment and electronics. Today, almost all manufacturers are switching to PTC heaters, which not only provide heating but also guarantee safety and durability of operation.

All heaters are equipped with electronic surface overheating protection, which provides an additional guarantee for safe operation.

Due to the high requirements for cabinet heaters, Plastim paid exceptional attention to the selection of component suppliers. For example, the supplier of the PTC heaters is the same as Schneider Electric.

Agree that this approach to supplier selection favorably distinguishes the high-quality heaters from Plastim from cheap Chinese analogs.

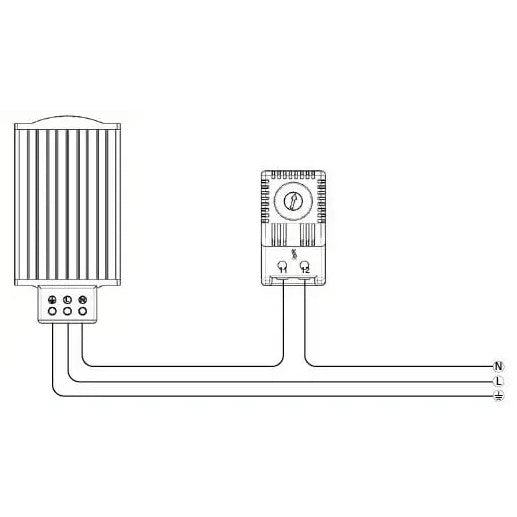

To ensure automatic temperature maintenance with this heater, you will need either a standard bimetal thermostat or a more complex temperature controller... both devices can be purchased on our website.
