Vendor: TENSE

Phase Control Relay FKV-03F

Barcode: FKV-03F
€24,50 €20,42 excl. VAT
€24,50 €20,42 excl. VAT
Out of stock
  • Description
  • Payment methods
  • Warranty

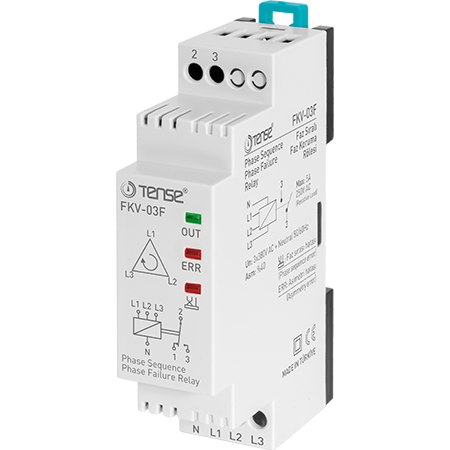

FKV-03F - Phase monitoring relay, TENSE

Product description

The FKV-03F relay is designed to protect three-phase electric motors against incorrect phase sequence, phase failure, and voltage asymmetry (fixed at 40%). The device includes a neutral conductor and clear LED indication for status and errors.

Functions and operation

  • Normal operation: OUT LED is lit, relay is active.

  • Asymmetry error: ERR LED is off, relay is deactivated.

  • Incorrect phase sequence: error indicator is lit, OUT LED is off, relay is deactivated.

  • Contacts:

    • Relay activated: 2 (COM) and 3 (NO) are switched.

    • Relay deactivated: 2 (COM) and 3 (NO) are connected.

Technical data

  • Operating voltage: 3×380 V AC + neutral conductor

  • Frequency: 50/60 Hz

  • Power consumption: <6 VA

  • Asymmetry: fixed 40%

  • Contact: 5 A / 250 V AC (resistive load)

  • LED indication: 3 LEDs

  • Mounting: DIN rail

  • Operating temperature: from -20 °C to +55 °C

  • Cable diameter: up to 2.5 mm²

  • Weight: <150 g

Application:

  • Three-phase electric motors

  • Industrial machines and pumps

  • Equipment sensitive to the quality of the power supply network
