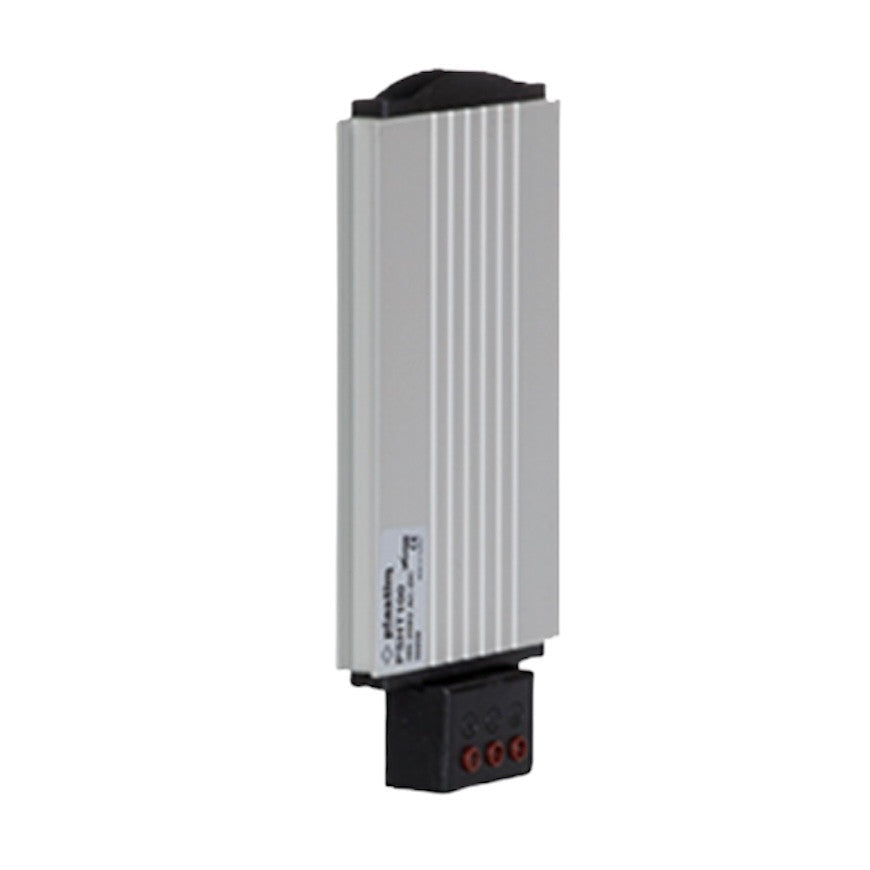

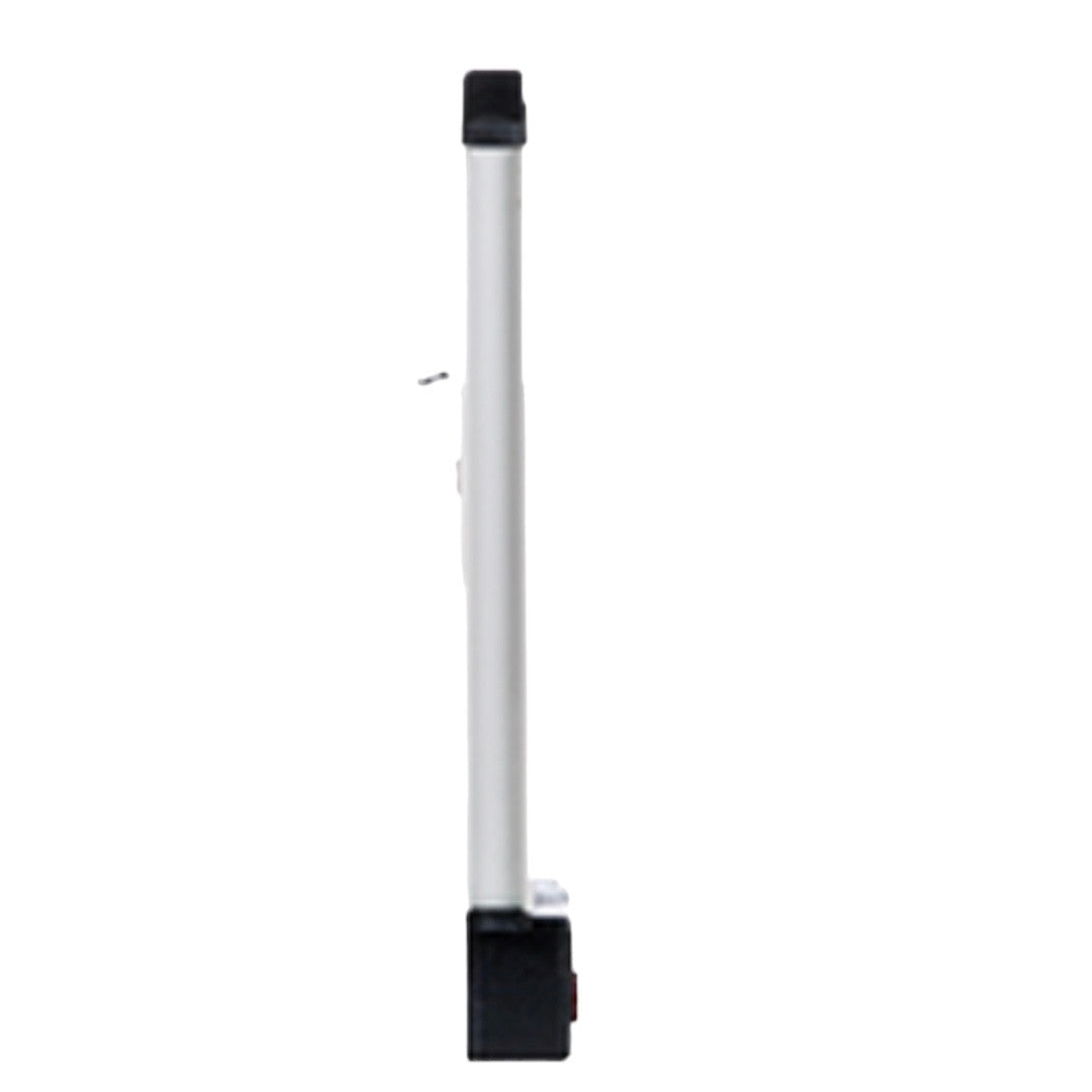

Thin / thin heater for distribution boards PTC 50W, PSHT050, Plastim

Electric (PTC heater, thin thermistor heater) heater for distribution panels with anodized aluminum radiator and overcurrent protection, for DIN rail mounting, 50 watts, 110-220 volts AC or DC, PSHT050, Plastim - made in Turkey.

• Heating power: 50 W
• Operating voltage: 100-250 V AC/DC
• Maximum current: 2A
• Self-regulating PTC resistor
• Overcurrent protection: Electronic thermal overload relay
• Electrical connection: 3-pole N-L-E terminal
• IEC protection class: class II
• Protection class: IP20
• Operating temperature: -45 / +70 °C

• Storage temperature: -45 / +70 °C

• Heat dissipation: anodized aluminum profile

• Mounting: 35 mm DIN rail

• Mounting position: Best efficiency in vertical position

• External dimensions: 148x80x27mm

• Weight: 0.19 kg

Heating elements are used to maintain temperature and reduce humidity levels in electrical panels, automation cabinets, ATMs, payment terminals, and other electronic devices. Previously, incandescent lamps were used for these purposes - but it is clear that this method does not meet the modern strict requirements for electrical equipment and electronics. Today, almost all manufacturers are switching to PTC heaters, which not only provide heating but also guarantee safety and durability of operation.

All heaters are equipped with electronic surface overheating protection, which provides an additional guarantee for safe operation.

Due to the high requirements for cabinet heaters, Plastim paid exceptional attention to the selection of component suppliers. For example, the supplier of the PTC heaters is the same Schneider Electric, and the terminal block for the electrical connection of all components is produced by the Italian company KORNER to special order. The plastic from which this block is made has a very important property: when heated, it not only retains its shape and does not deform, but also does not emit any odors and therefore does not release any harmful carcinogenic substances into the atmosphere. Agree that this approach in supplier selection favorably distinguishes the high-quality Plastim heaters from cheap Chinese analogs.

To ensure automatic temperature maintenance with this heater, you will need either a standard bimetal thermostat or a more complex temperature controller... Both devices can be purchased on our website:
