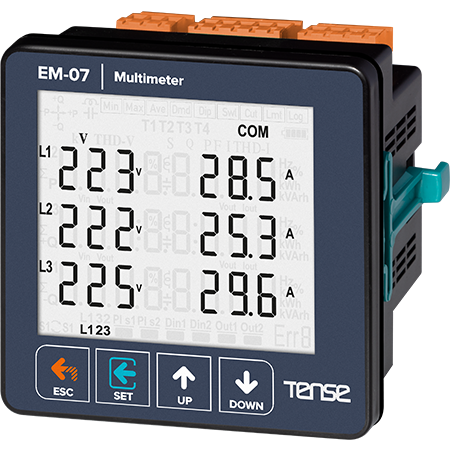

Digital panel multimeter for currents, voltages, frequencies, power, RS485

Multimeter - multifunctional digital panel measuring device, indicator for current, voltage, frequency, and total power, with relay output and ModBus RTU manufacturer TENSE (Turkey)

Main advantages:

• RS485 Modbus RTU (1200-38400bps)

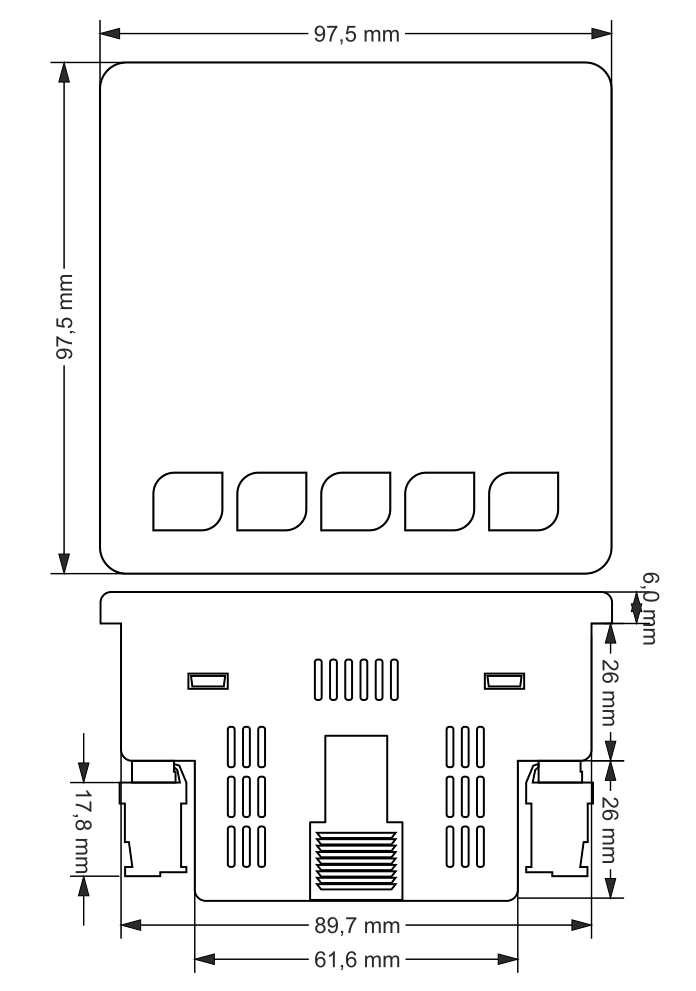

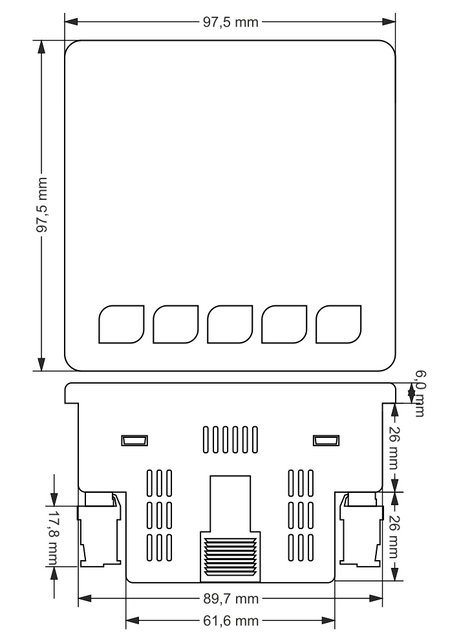

• LCD display with dimensions 71.5 x 61.5, custom made of glass

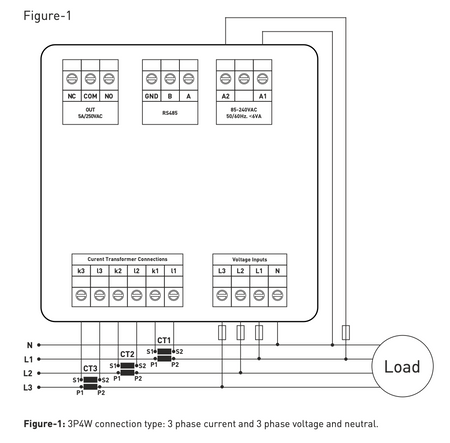

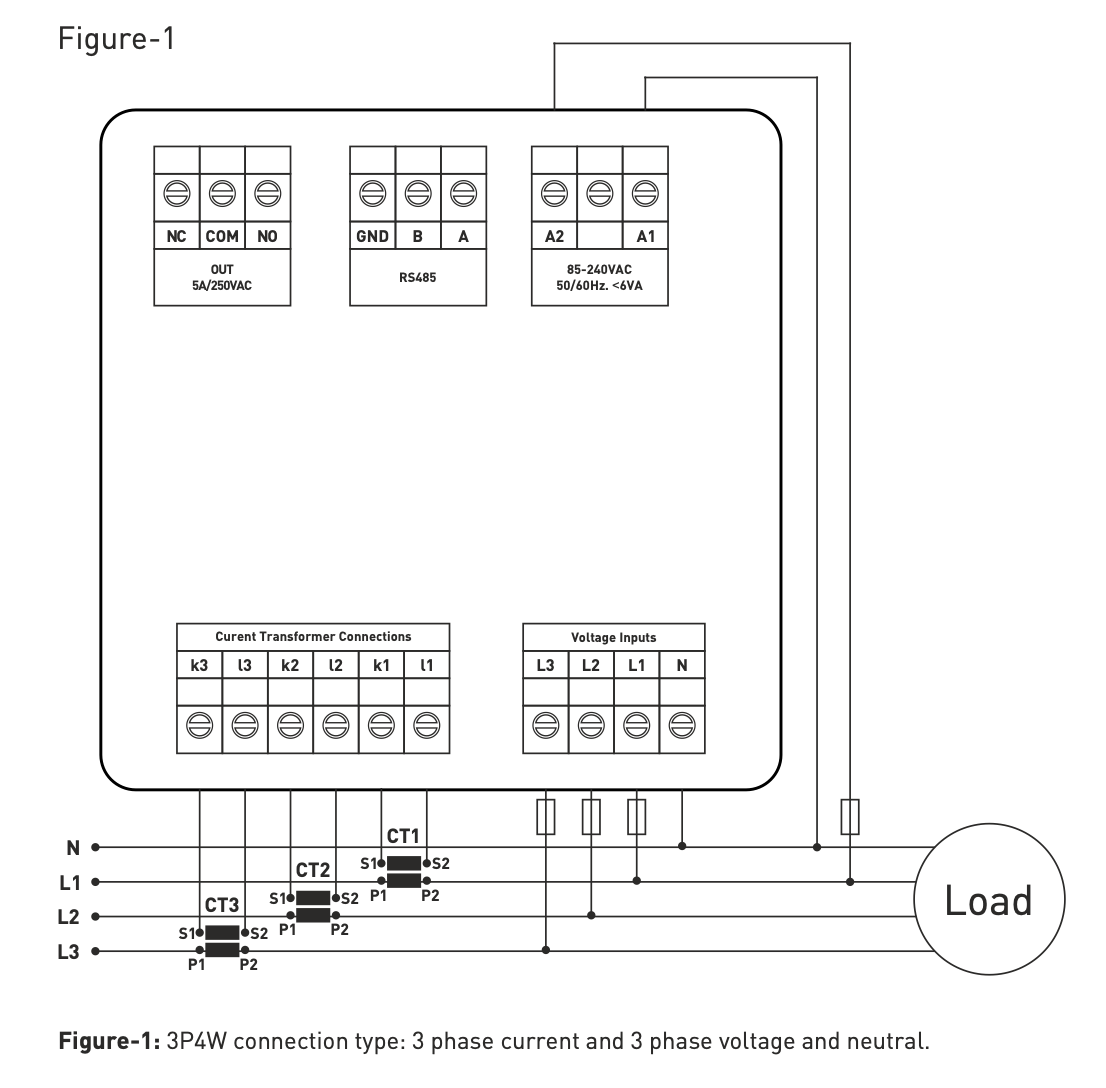

• 3-phase voltage transformer and 3-phase current transformer.
• Displays V1, V2, V3, V12, V23, V31, I1, I2, I3, S1, S2, S3, F1, F2, F3
• Displays the minimum, maximum, and average values of V1,V2,V3,V12,V23,V31,F1,F2,F3
• Displays the minimum, maximum, average, and set values I1,I2,I3,S1,S2,S3 High/low voltage, current, frequency (adjustable) Phase-neutral or phase-phase protection (adjustable)
• 1x relay output
• Protection of voltage, current, and frequency
• Displays the phase sequence
• You can delete the requirements
• The menu is password protected.

Usually, this multimeter is used with current measuring transformers - 60/5 75/5 100/5 150/5 200/5 250/5 300/5 400/5 500/5 600/5 800/5 1000/5 1500/5 or similar. You can purchase such transformers in our online store,
