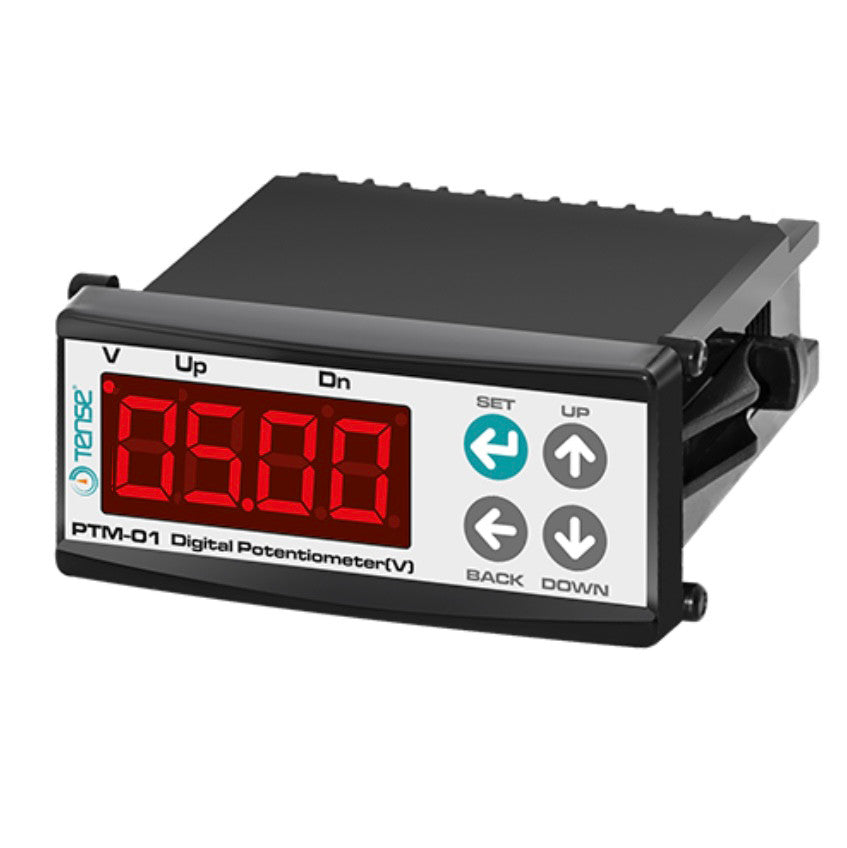

Digital potentiometer, voltage source 0-10V

Digital potentiometers are control devices that produce an analog output between 0-10V.

• Microprocessor-based
• Analog output: 0-10V
• Menu entry and analog output control via front keys

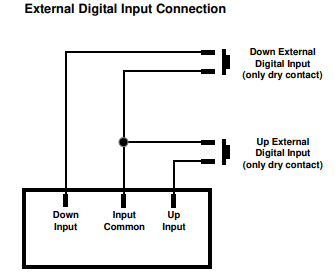

• Analog output control via digital inputs
• Adjustable upper and lower scale levels
• Adjustable upper and lower limit for SET
• Separate function selection for front keys and digital inputs for analog output control
• Password protection
• SECU setting to enable/disable access to the SET configuration menu
• High accuracy
• EEPROM memory for storing settings
• Easy connection with plug connectors

TECHNICAL SPECIFICATION

• Dimensions: 35x77mm
• Panel cutout: 29x71mm
• Display: 4 digits and 7 segments
• Analog output: 0-10V or 4-20mA (must be specified when ordering)
• 0-10V load: >5K
• 4-20mA max. voltage: <10V
• Resolution: 2mV (0-10V), 4μA (4-20mA)
• Accuracy: ±1%; (scale overrun)
• User control: Via up/down keys on the front panel or digital up/down inputs
• Digital inputs: dry contact input only
• Supply voltage: 100..240VAC, 50-60Hz or 24VDC/AC.
• Power consumption: < 6VA
• Humidity: 80% up to 30°C, then linearly decreasing to 50% at 50°C (no condensation)
• Altitude: < 2000 m
• Protection class: IP20
• Operating temperature: 0 ... 50 °C
• Storage temperature: -10°C ... 60°C (no icing)
• Weight: < 0.5 kg
