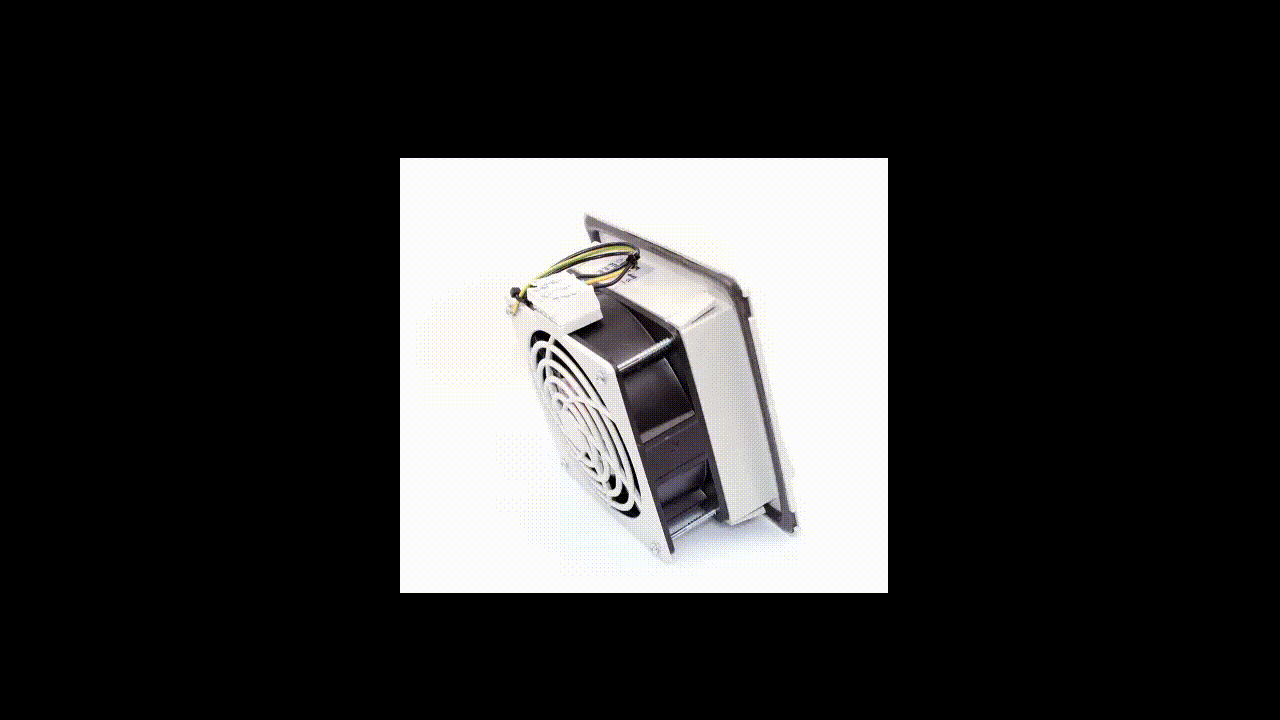

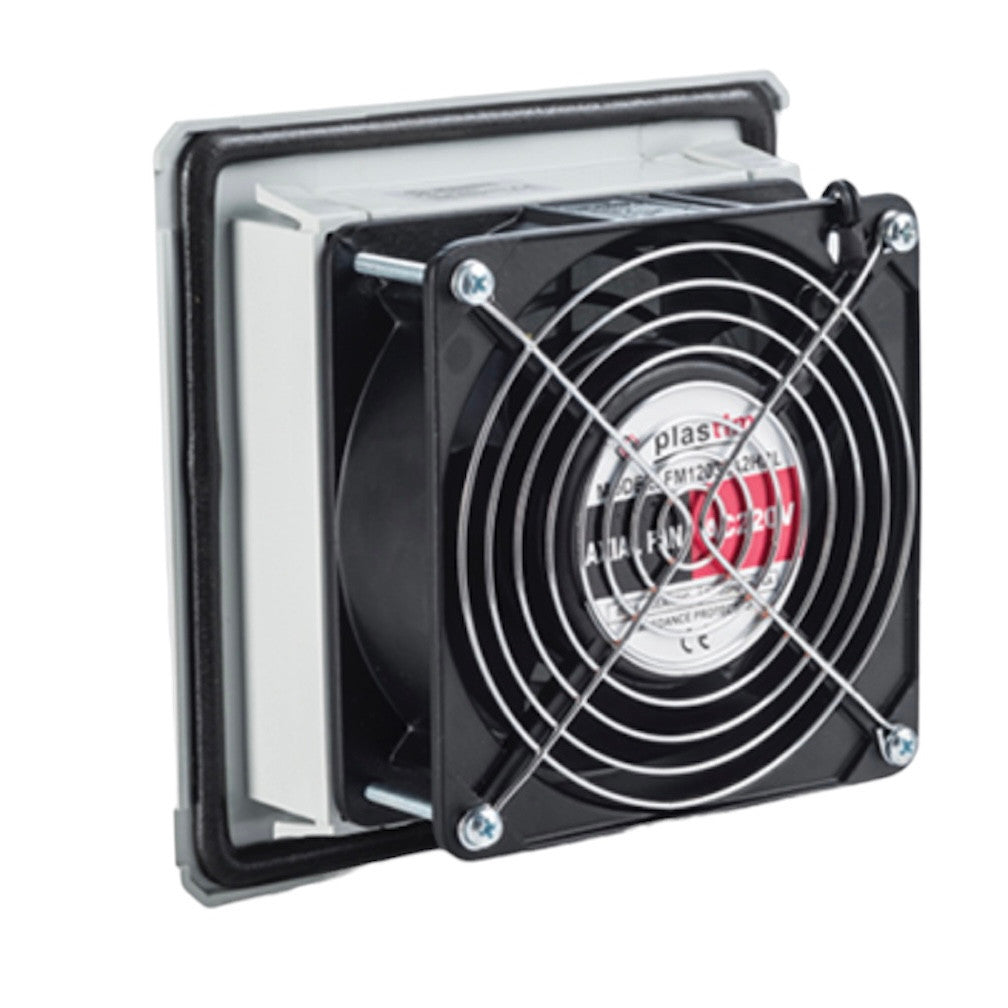

Fan with filter + bracket, 100 (140) m3/h 160x160, 230V 50/60Hz IP54 PTF1500T Plastim

Ventilation grille with fan and filter, size 160x160 mm, for installation in electrical panel, automation cabinet, ATM or gaming terminal. PTF1500T, manufacturer Plastim (Türkiye)

Used for drawing in external air for electrical cabinets, ATMs, payment terminals, gaming machines, automation cabinets, control panels, gas stations. Typically mounted in the side walls of cabinets to maintain IP.

• External dimensions: 160x160x69 mm
• Mounting size: 125x125 mm
• Flow volume: 100 (140) m3/h
• Noise level: 42 (46) dB(A)
• Bearing: ball bearing
• Operating voltage: 220-230 VAC, 50/60 Hz
• Current consumption: 0.14 (0.13) A
• Rated power: 26 (23) W
• Electrical connection: 3-pole terminal 2.5 mm2
• Airflow direction: Outside to inside (can be changed)
• Operating temperature: -10/+70 °C
• Degree of protection: IP54
• Plastic material: UL94 V0 ABS Flame retardant
• Seal: polyurethane seal
• Color: RAL 7035 (RAL 7032 on request)
• Weight: 0.68 kg
• Installation: quick fastening

To ensure automatic air exchange and temperature maintenance with this fan, you will need either a standard bimetal thermostat or a more complex temperature controller, both of which can be purchased from our website.
