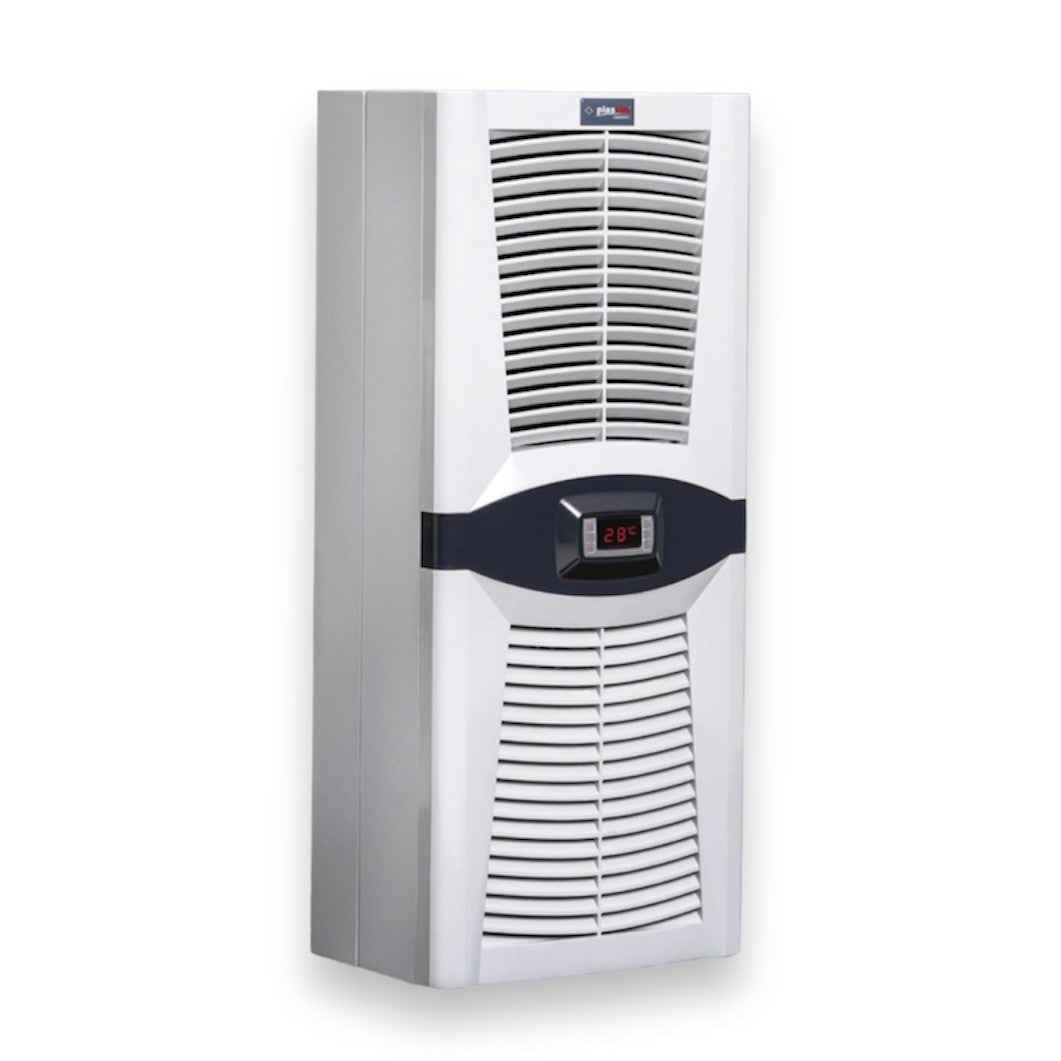

Air conditioner for distribution panel/cooler 1600 W (Design series) for distribution panel and automation panel for side or wall mounting.
The air conditioner for the distribution panel PAD1600.01 (PLASTIM) is equipped with the latest open-type rotary compressor from HIGHLY, Dixell thermostat, condensate evaporator, and a limit switch for controlling the opening of the distribution panel door.
Everything necessary for installing the air conditioner for the cabinet is included - seals, drain pipe, mounting screws, power connector.
|
TECHNICAL DATA |
PAD1600.01 |
|
Cooling capacity L35 / L35 |
1600W / 5500BTU |
|
Operating voltage |
230VAC |
|
Frequency |
50/60 Hz |
|
Starting current |
8A |
|
Operating current |
3.2A |
|
Fuse |
10A |
|
Power consumption |
725W |
|
Operating range |
0-55 °C |
|
Factory setting of the thermostat |
35 °C |
|
Differential |
4 °C |
|
Max. air volume internal circuit |
510 m³/h |
|
Max. air volume in the external circuit |
510 m³/h |
|
Type of refrigerant |
R134a |
|
Refrigerant quantity |
600 g. |
|

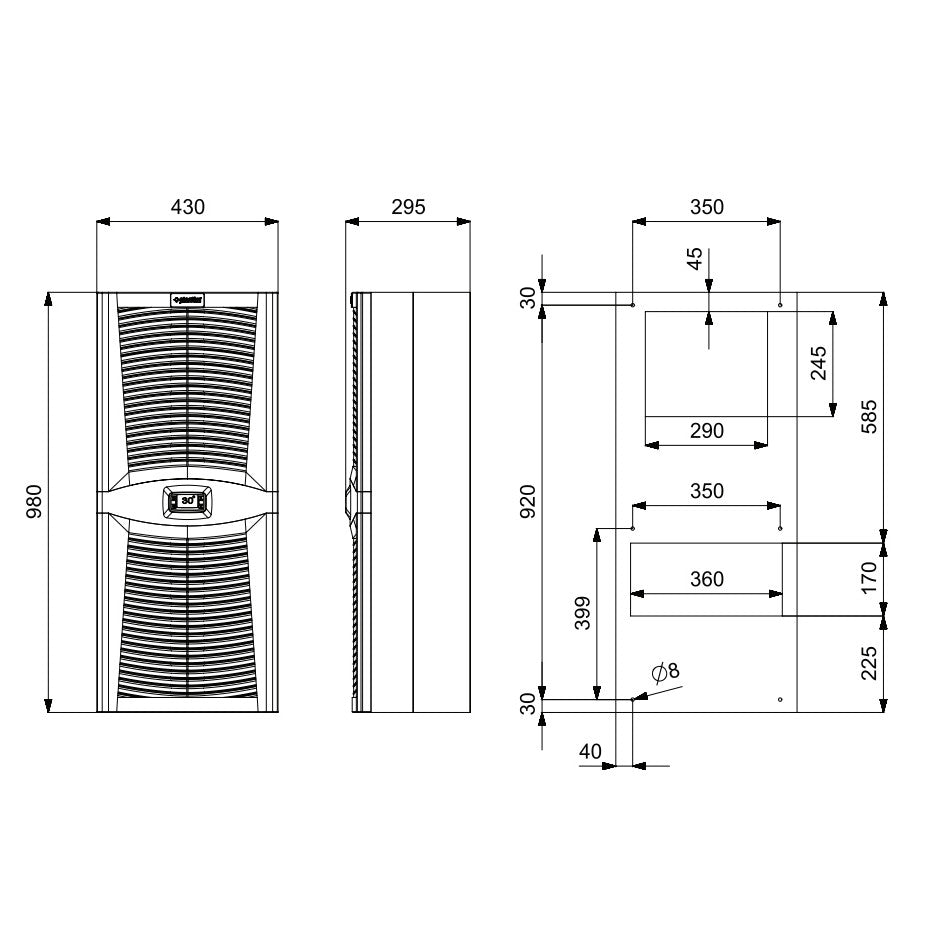

Dimensions |
980x430x270mm |
|
Weight |
45 kg |
|
Sound level |
79dB |
|
Degree of protection (internal circuit) |
IP 54 |
|
Degree of protection (external circuit) |
IP 34 |
|
Color |
RAL7035 |
|
Compressor |
HIGHLY/HITACHI |
|
Compressor type |
Rotary |
|
Fans |
EBMPAPST |
|
Mounting method |
Wall mounting |
