Vendor: Plastim

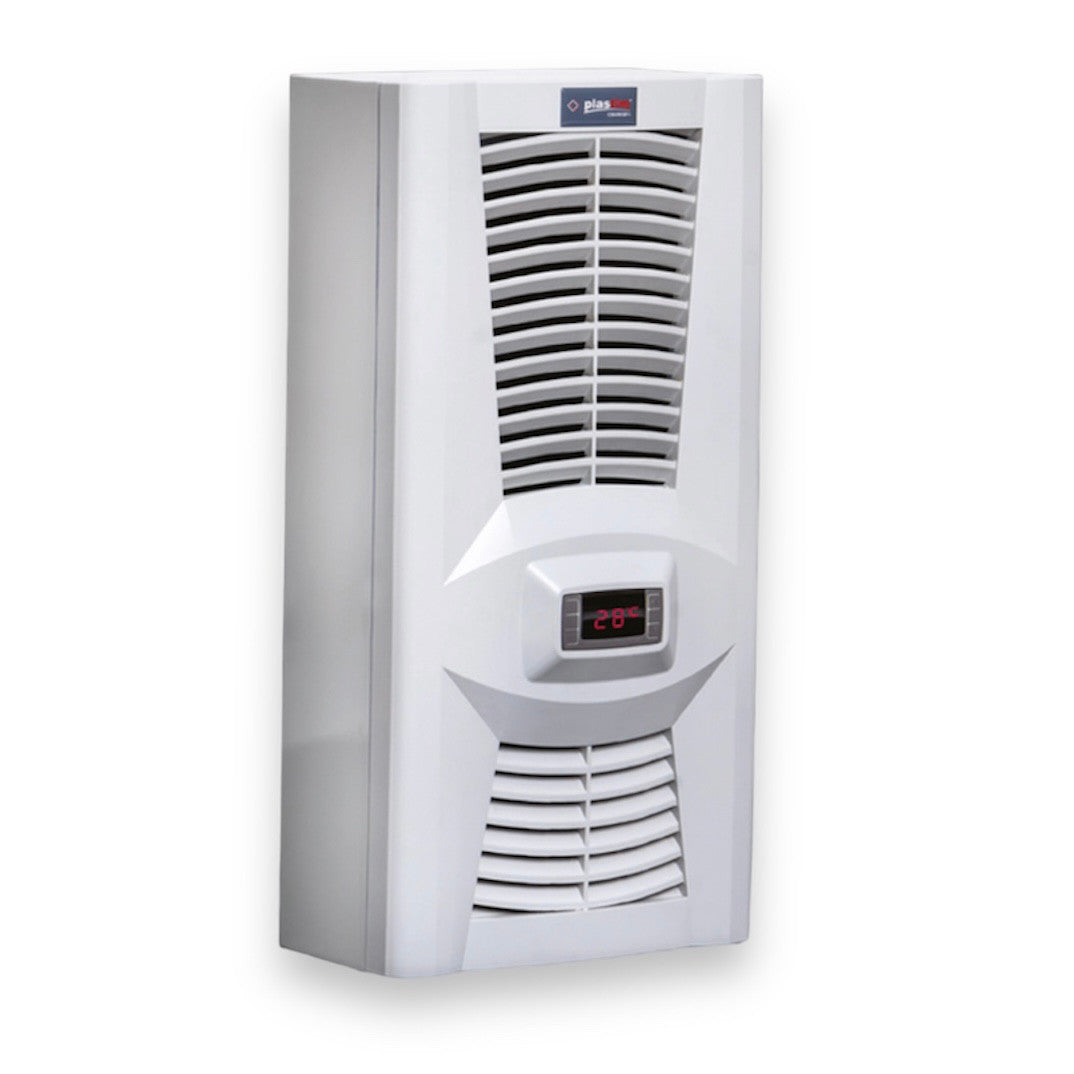

Air Conditioner for Distribution Boards / Cooler 380W, PAD0380.01, Plastim
Barcode:
PAD0380.01
- Regular price
- €1.122,00
- Regular price
-
- Sale price
- €1.122,00
- Unit price
- per
excl. VAT:
€935
Out of stock
Couldn't load pickup availability
Notified by email when this product becomes available
Pre-order product
- Описание
- Инструкции
- Методи на плащане
- Гаранция
The "Design Series" air conditioner for distribution boards/cooler 380 Watt / 1300 BTU for distribution boards and automation panels for side or wall mounting.
The PAD0380.01 air conditioner (PLASTIM) for distribution boards features the latest open-type rotary compressor from HIGHLY, a Dixell thermostat, a condensate evaporator, and a limit switch for controlling the opening of the distribution board door.
Everything necessary for installing the air conditioner for the cabinet is included - seals, drain pipe, mounting screws, power connector.
| TECHNICAL DATA | PAD0380.01 |
| Cooling capacity L35 / L35 | 380W / 1300BTU |
| Operating voltage | 230VAC |
| Frequency | 50/60 Hz |
| Starting current | 3.7A |
| Operating current | 1.1A |
| Fuse | 5A |
| Power consumption | 325W |
| Operating range | 0-55 °C |
| Factory setting of the thermostat | 35 °C |
| Differential | 4 °C |
| Max. air volume internal circuit | 340 m³/h |
| Max. air volume in the external circuit | 340 m³/h |
| Type of refrigerant | R134a |
| Refrigerant quantity | 120gr |
| Dimensions | 560x285x150mm |
| Weight | 15 kg |
| Sound level | 75dB |
| Degree of protection (internal circuit) | IP 54 |
| Degree of protection (external circuit) | IP 34 |
| Color | RAL7035 |
| Compressor | HIGHLY/HITACHI |
| Compressor type | Rotary |
| Fans | EBMPAPST |
| Mounting method | Wall mounting |
