TENSE

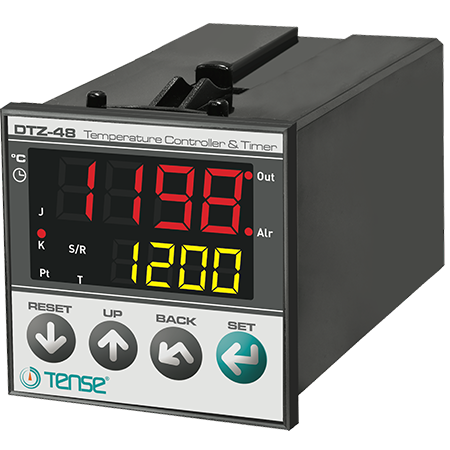

Microprocessor PID temperature controller with timer for panel mounting 1750°C

In stock - 5 items available
SKU: DTZ-48
99.45 лв including VAT
Височина x ширина

PID temperature controller for panel mounting with built-in timer, measurement range -100°C ... +1750°C, resolution / step 0.1ºC (made in Turkey, TENSE)

Control and monitoring of thermal processes in heating, air conditioning, and ventilation systems, building automation, industrial enterprises.

Temperature control is achieved through on/off or PID control. The controller offers self-optimization that prevents exceeding process values.

  • Automatic setting of PID parameters

  • Sensor type: T/C (J,K,T,S,R), Pt100
  • Selectable control type: P, PI, PD, PID or ON-OFF

  • Automatic removal of 'exceedance' in PID mode

  • Overrun protection

  • Delay on switch-on for OUT in cooling mode

  • Password protection

  • EEPROM memory for saving settings

  • Relay outputs OUT and ALARM (NO+NC) 250VAC, 2A (ALARM ON only for DTZ-48)

The measurement range depends on the sensor and can be set with the buttons on the temperature controller.

The display of the temperature controller is a high-contrast display that can only be read accurately under poor conditions. In addition to the control output, the temperature controller has an additional alarm relay that closes the dry contact if the value is exceeded or not reached.

Don't forget to order our temperature sensors - type J Fe-Const thermocouple (metric 6/8) with a temperature measurement range of: -100 °C - +600 °C. They can be with a cable length of 1 m, 1.5 m, 2 m, 2.5 m, 3 m, 4 m, and 5 m.
