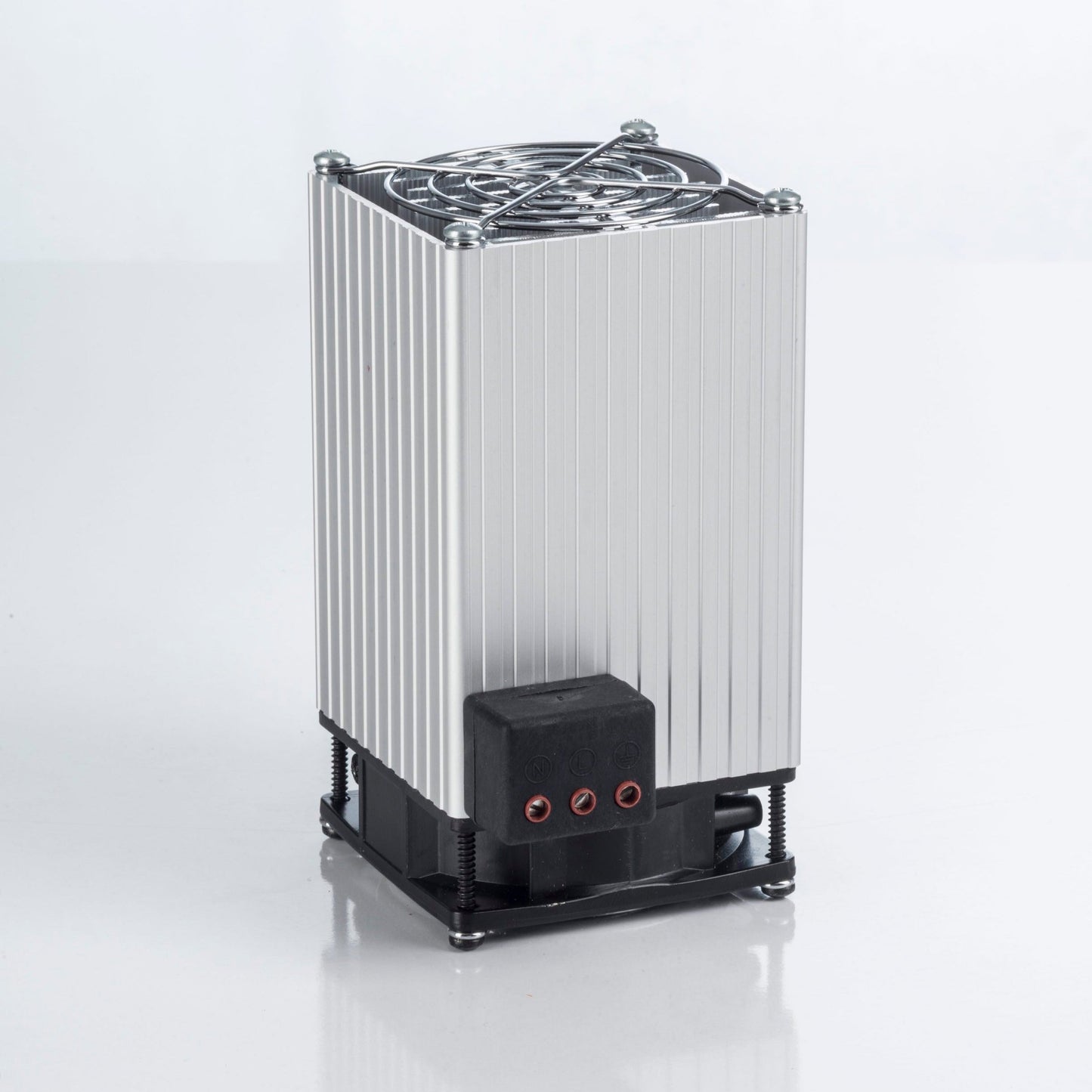

Resistance heater for distribution boards with fan 250W, PFHT250, PLASTIM

Electric ("resistive" heater, "after" heater) heater for distribution boards with a fan, with an anodized aluminum radiator and overcurrent protection, for DIN rail mounting, 250 watts, 220/230 volts AC, PFHT250, Plastim - made in Turkey.

• Heating power: 250 W

• Operating voltage: 220/230 V AC, 50/60 Hz

• Maximum current: 1.2 A

• Resistive heater

• Axial fan: 80x80x25mm 35m3/h

• Overcurrent protection: electronic thermal overload relay

• Electrical connection: 3-pole N-L-E terminal

• IEC protection class: class II

• Protection class: IP20

• Operating temperature: -25 / +70 °C

• Storage temperature: -25 / +70 °C

• Heat dissipation: anodized aluminum profile

• Mounting: 35 mm DIN rail

• Mounting position: Best efficiency in vertical position

• External dimensions: 152x80x110mm

• Weight: 0.98 kg

To ensure automatic temperature maintenance with this heater, you will need either a standard bimetallic thermostat or a more complex temperature controller. Both devices can be purchased from our website.
