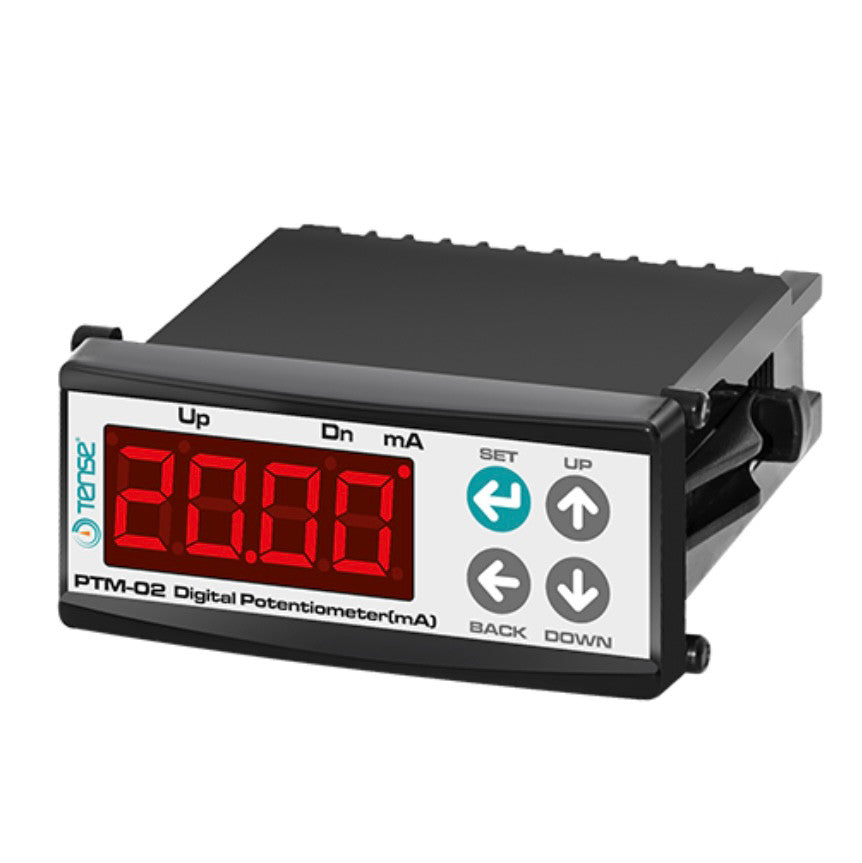

Digital potentiometer current source 4-20mA

Digital potentiometers are control devices that produce an analog output between 4-20mA.

• Microprocessor-based
• Analog output: 4-20mA
• Entering the menu and controlling the analog output via the front keys
• Control of the analog output via digital inputs
• Adjustable upper and lower scale levels
• Adjustable upper and lower limits for SET
• Separate function selection for the front keys and digital inputs for controlling the analog output
• Password protection
• SECU setting for enabling/disabling access to the SET configuration menu
• High accuracy
• EEPROM memory for storing settings
• Easy connection with plug connectors

TECHNICAL SPECIFICATION

• Dimensions: 35x77mm
• Panel cutout: 29x71mm
• Display: 4 digits and 7 segments
• Analog output: 0-10V or 4-20mA (must be specified when ordering)
• 0-10V Load: >5K
• 4-20mA max. Voltage: <10V
• Resolution: 2mV (0-10V), 4μA (4-20mA)
• Accuracy: ±%1; (exceeding the scale)
• User control: Via up/down buttons on the front panel or digital up/down inputs

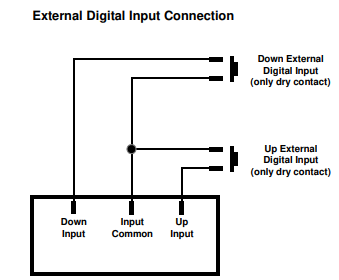

• Digital inputs: only dry contact input
• Supply voltage: 100..240VAC, 50-60Hz or 24VDC/AC.
• Power consumption: < 6VA
• Humidity: 80% up to 30oC, then linearly decreases to 50% at 50oC (without condensation)
• Altitude: < 2000 m
• Protection class: IP20
• Operating temperature: 0 ... 50 oC
• Storage temperature: -10oC ... 60oC (without icing)
• Weight: < 0.5 kg
