TENSE

3-phase network analyzer of power supply frequency parameters, voltage, and currents RS485

In stock - 18 items available
SKU: TPM-05
380.21 лв including VAT

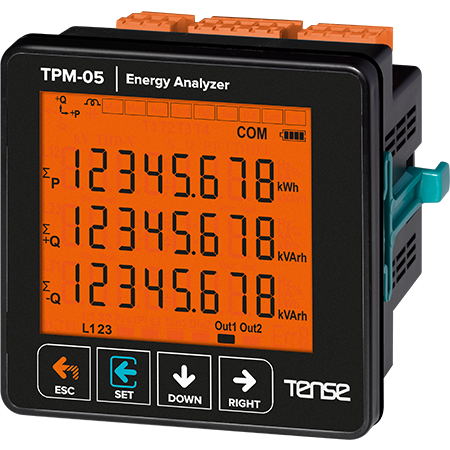

3-phase network parameters analyzer - three-phase multifunctional digital panel measuring device, indicator for current, voltage, frequency, and total power, with two relay outputs and a digital input, RS485 ModBus RTU - panel measuring devices from the manufacturer TPM-05 TENSE (Turkey).

Power analyzers are designed for measuring and monitoring electrical values. Thanks to the communication function, energy measurements can be monitored and recorded independently. With the help of energy analyzers, analyses can be performed, such as calculating power quality, efficiency, and costs per product unit.

Main advantages:

  • RS485 Modbus RTU (1200-115200bps)

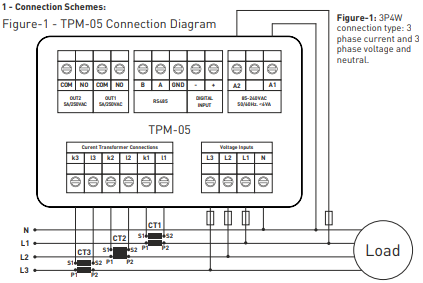

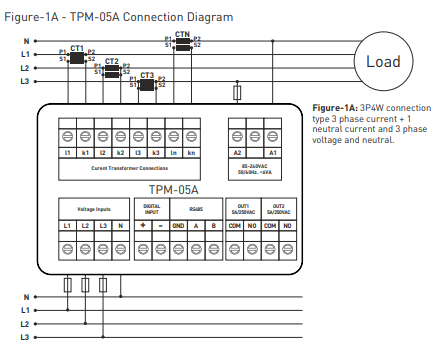

  • 3-phase voltage transformer and 3-phase current transformer.

  • Displays harmonics of voltage and current up to the 55th harmonic

  • Displays active power per phases (P)

  • Displays reactive power per phase (Q, inductive and capacitive)

  • Displays the apparent power per phase (S)

  • Displays the values of Cosφ and the power factor of each phase

  • Displays the values of voltage (V) and current (I) between phases, measuring the frequency of each phase.

  • Displays the values of total import and export of active energy (ΣkWh)

  • Displays the total values of inductive and capacitive reactive energy (ΣkVArh)

  • Displays minimum and maximum values, max. demand

  • 2 relay outputs, 1 digital input

  • Event logs (high/low voltage/current, voltage/current imbalance, THD-I, power interruption)

  • Current date and time (RTC)

  • The menu is password protected.

Typically, this network analyzer is used with current measuring transformers - 60/5 75/5 100/5 150/5 200/5 250/5 300/5 400/5 500/5 600/5 800/5 1000/5 1500/5 or similar. You can purchase such transformers in our online store. If you will connect the analyzer to ModBus, we will send you a Registration table with ModBus addresses upon request.
