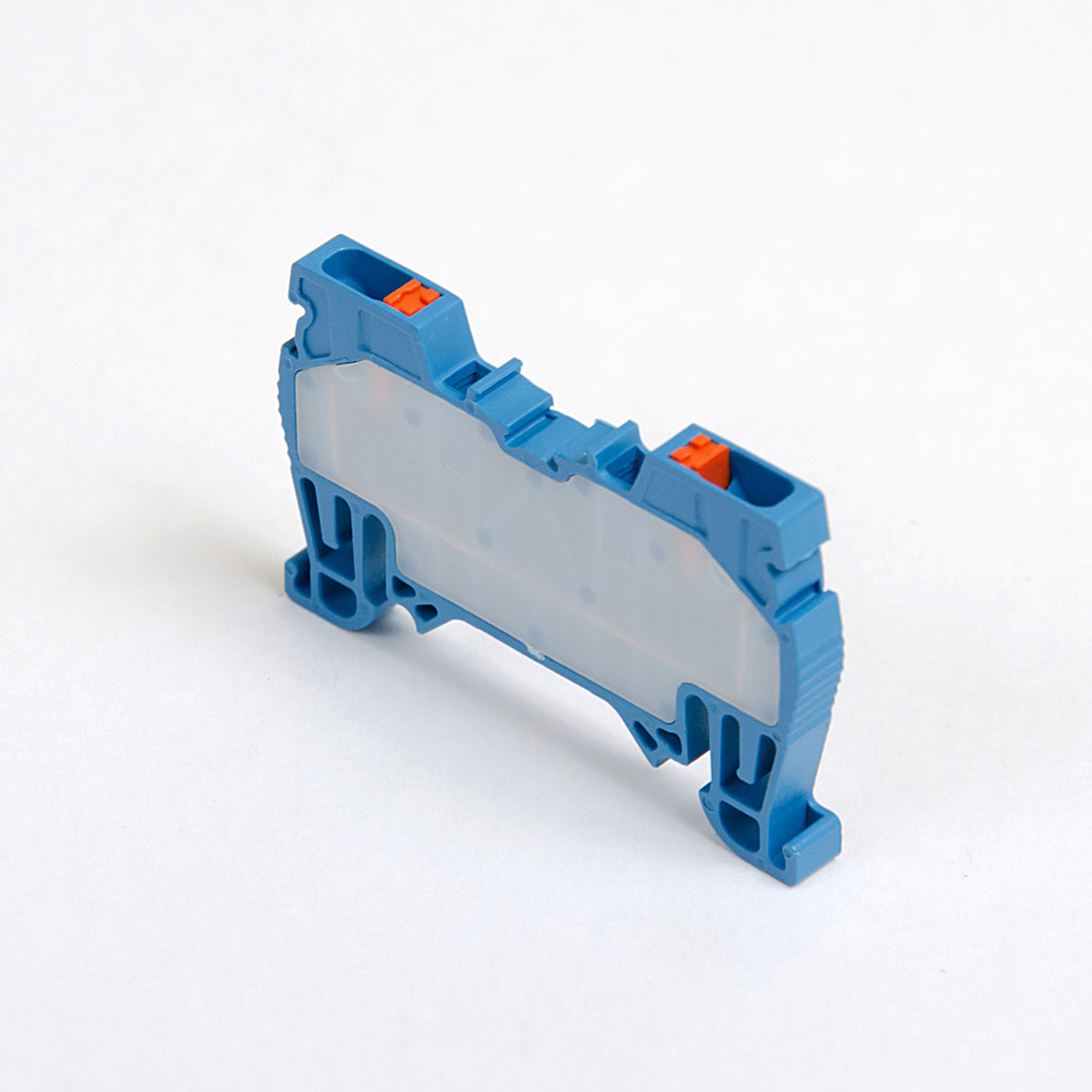

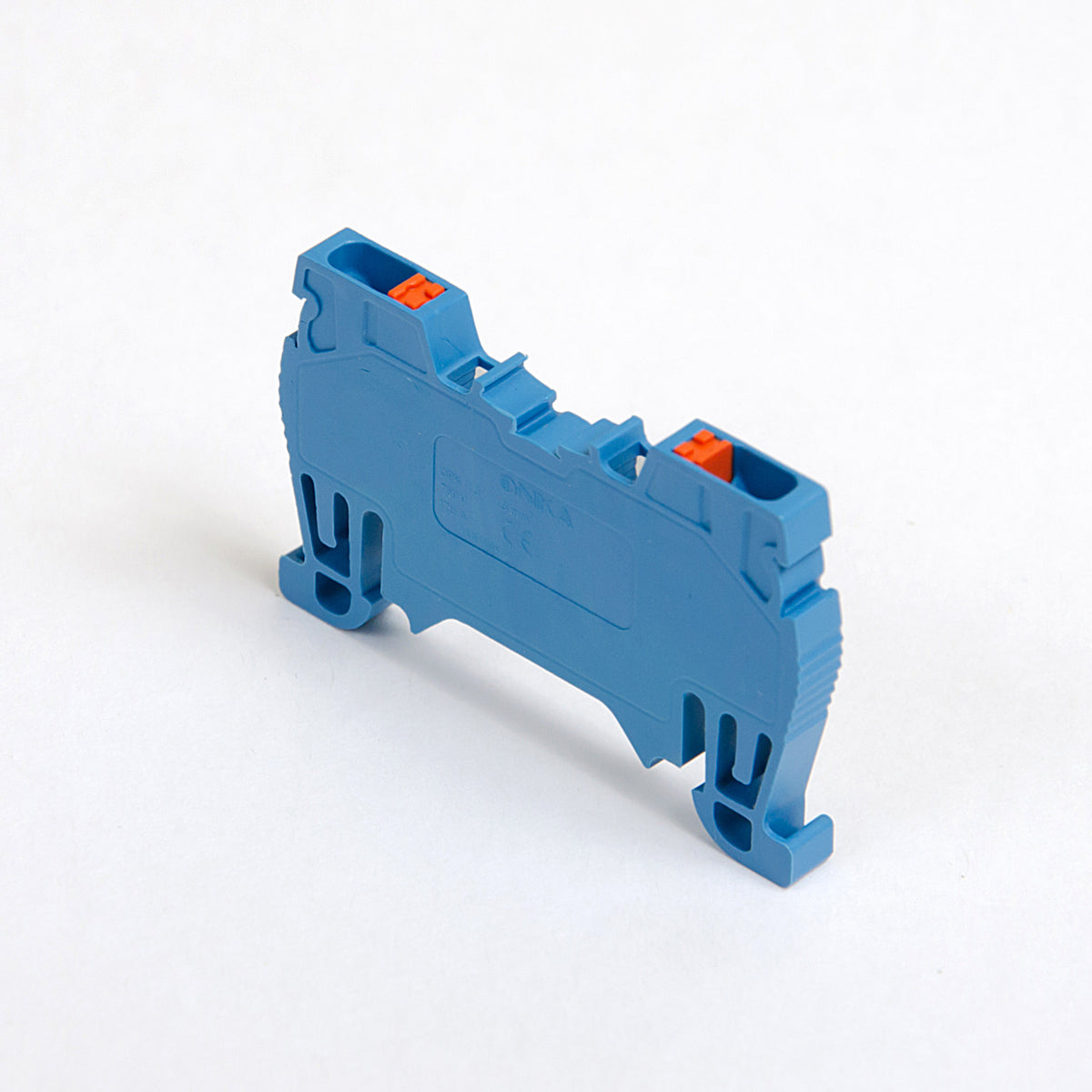

ONKA 1.5 mm2 spring connector for rail, DIN rail terminal, 2-wire, blue, 1020005

Spring connector for rail / terminal for DIN rail, 2-wire, retractable contact, blue, ONKA, made in Turkey.

The connector/terminal from ONKA is a reliable solution for anyone looking for functional and durable elements in electrical installations.
Made from high-quality materials, the coupling ensures long-lasting use and resistance to mechanical damage.

Technical parameters

Cross-section of the connected single conductor up to: 1.5 mm2
Color: blue
Insulation material of the main body: polyamide (PA6.6)
Contact/bridge material: stainless steel/copper
Torque: 0.4 Nm
Connection position: top/top
Cable strip length: 9 mm
Type of electrical connection: spring clamp / retractable contact
Nominal voltage: 750 V
Nominal current: 17.5A
Operating temperature range from: -40°C
Operating temperature range to: 140°C
Mounting method: DIN rail mounting 35 mm
Standard: EN-60947-7-1
