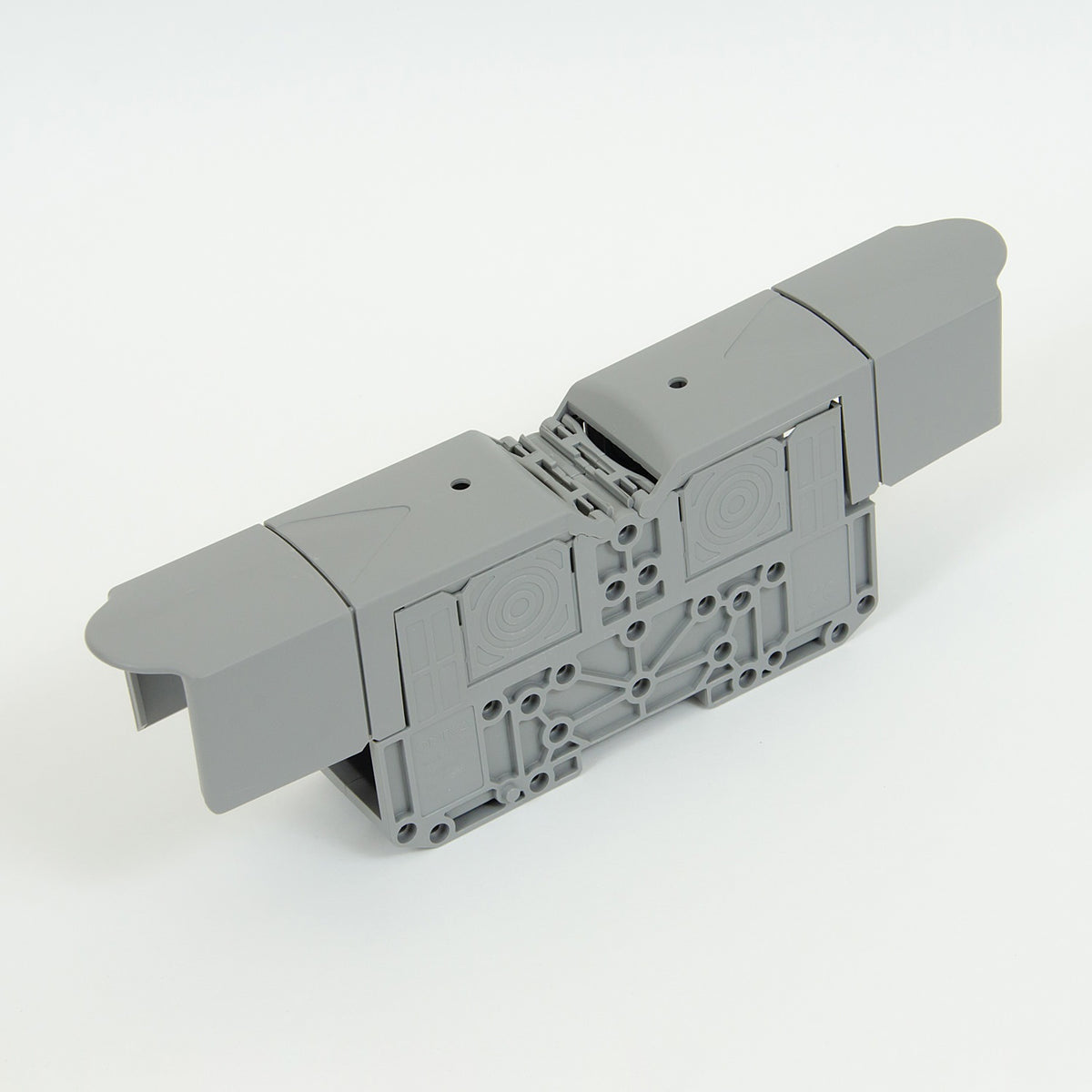

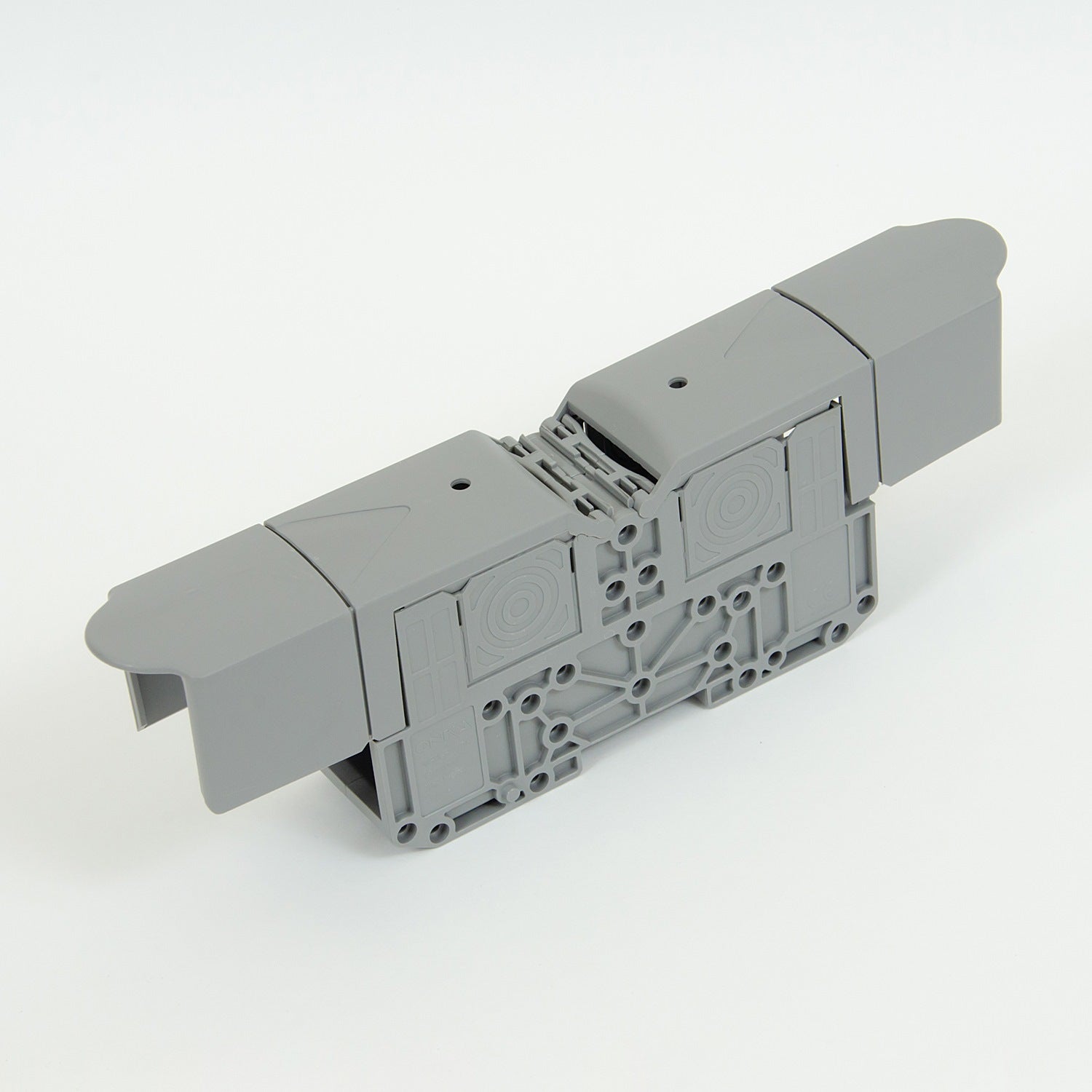

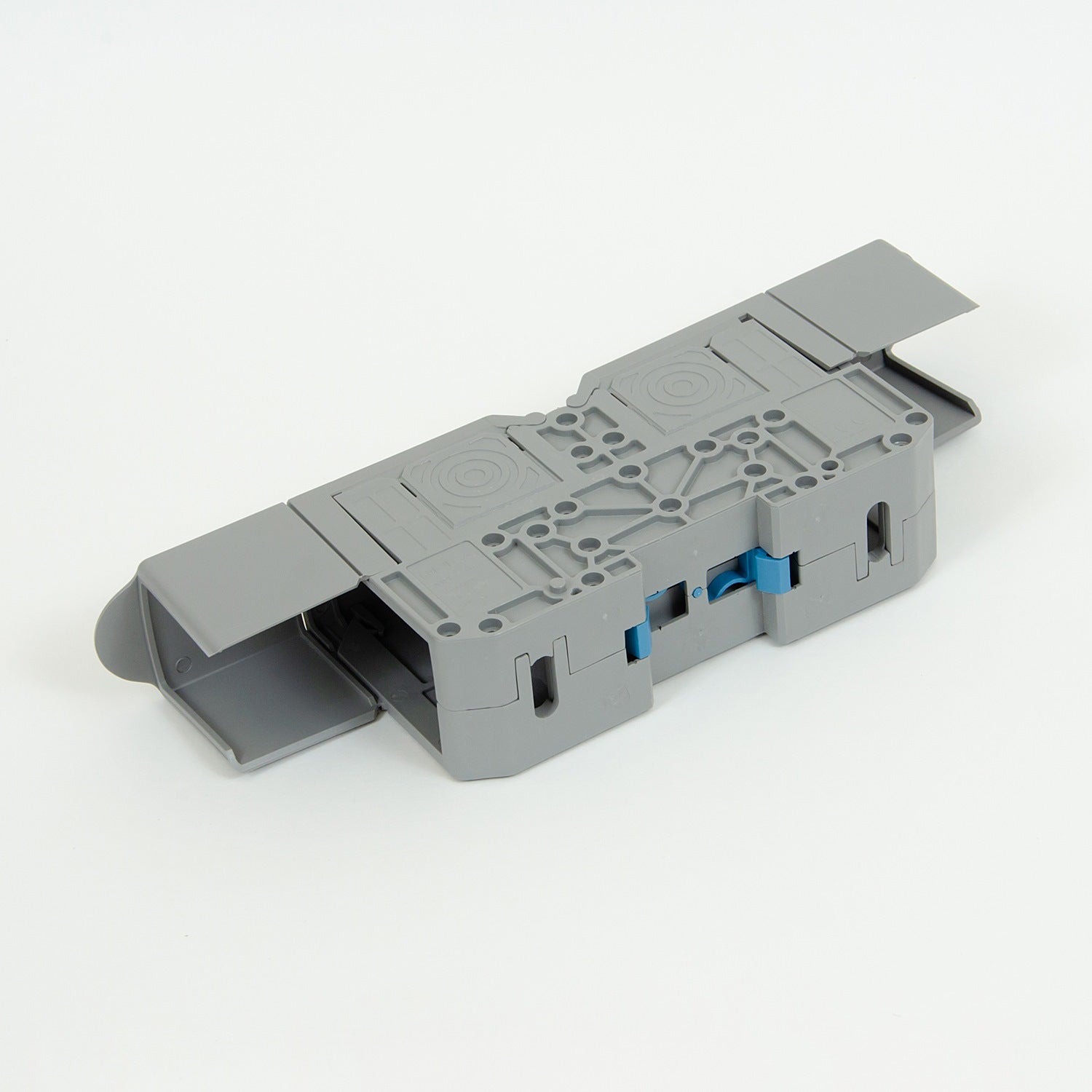

ONKA 150mm2 M12 Terminal box for screw rail Terminal box for DIN rail with protective cover, gray, 1030088

M12, 150mm2, connector with thread for bus / terminal for DIN rail with protective cover, gray, ONKA, made in Turkey

The compact installation bus connectors from ONKA provide great possibilities for connecting various wires with different cross-sections. The transparent housing allows for easy checking of the correct placement of the wires. The original quick connectors from ONKA are convenient for installation and 100% reliability of the connection.

Technical parameters

Cross-section of the connected single wire up to: 150 mm2
Color: gray
Insulation material of the main housing: polyamide (PA6.6)
Contact/bridge material: steel/copper CK45
Connection position: side/side
Nominal voltage: 1000V
Nominal current: 309A
Operating temperature range from: -40°C
Operating temperature range to: 140°C
Mounting method: DIN rail mounting 35 mm
