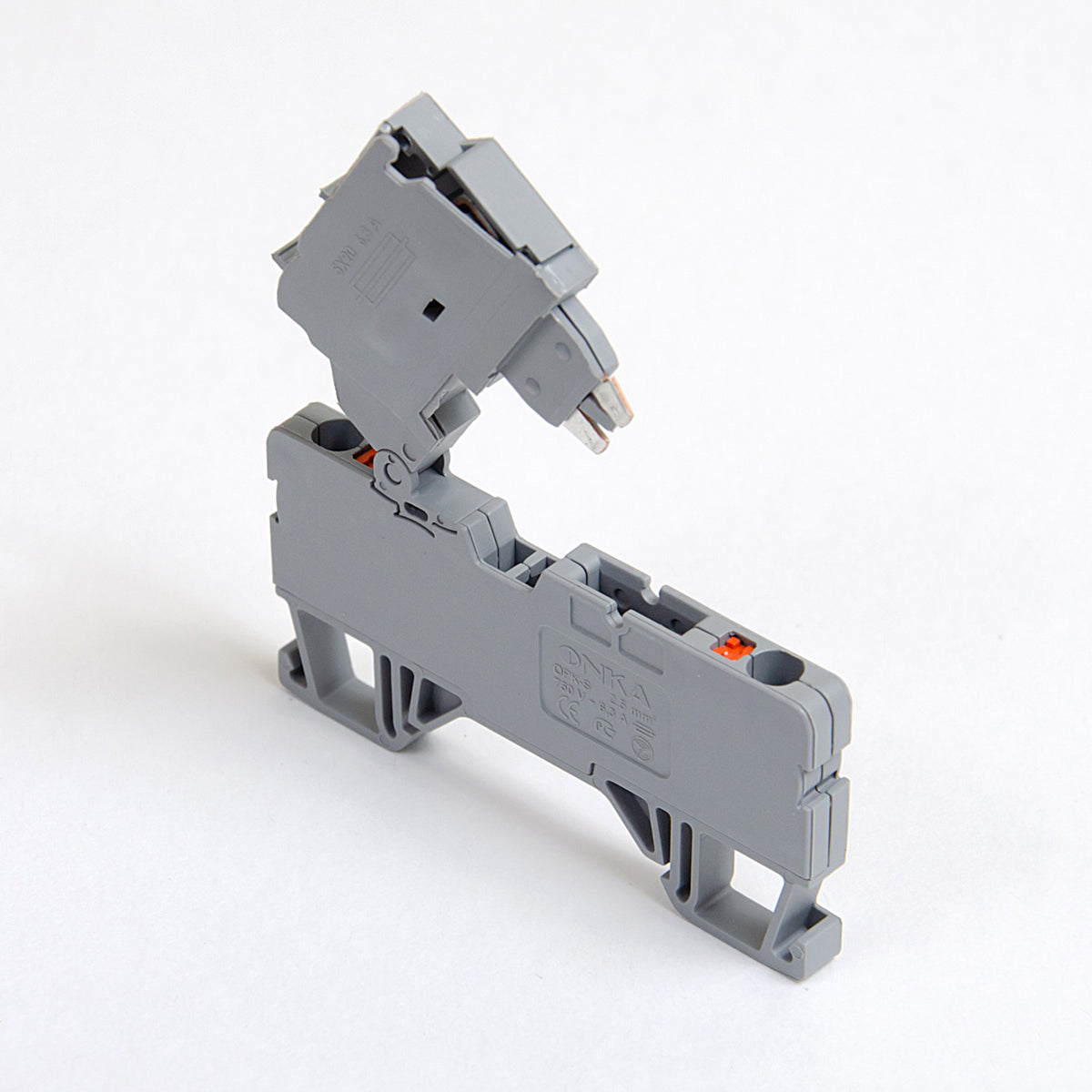

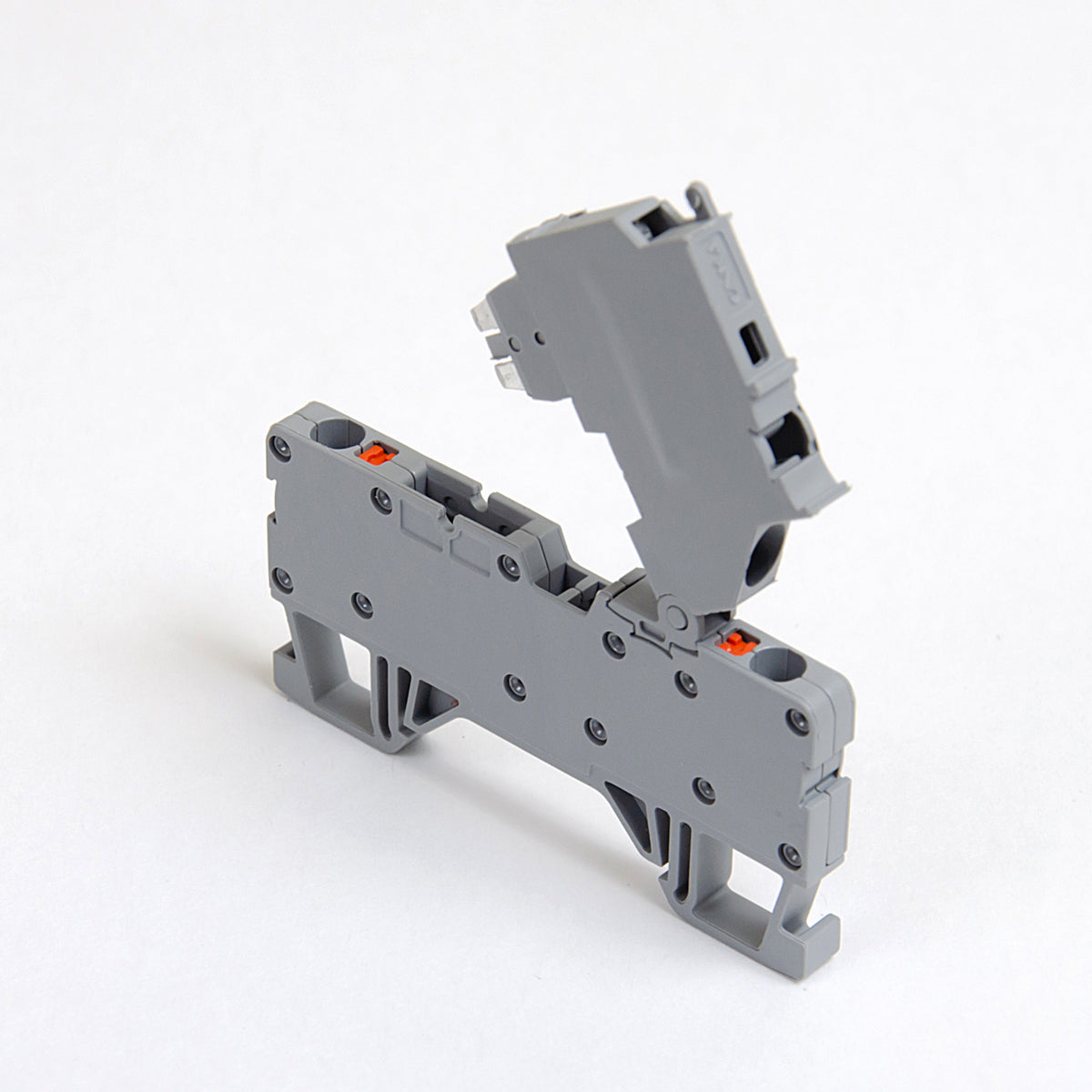

ONKA 2.5 mm2 screw connection with terminal box for fuse (fuse not included) gray, 1020223

Terminal box with spring screw for connecting a fuse (the fuse is not included in the package) 2-wire, gray, ONKA, made in Turkey

Used for protecting low-voltage circuits for alternating or direct current. A fuse with dimensions 5x20 mm is installed in the terminal with a current setting up to 6.3 A. The fuse is not included and must be ordered separately.

Technical parameters

Cross-section of the connected single conductor up to: 2.5 mm2
Color: gray
Insulation material of the main body: polyamide (PA6.6)
Contact/bridge material: stainless steel/copper
Connection position: top/top
Cable strip length: 9 mm
Type of electrical connection: screw clamp
Nominal voltage: 750 V
Nominal current: 6.3A
Operating temperature range from: -40°C
Operating temperature range to: 140°C
Mounting method: DIN rail mounting 35 mm
Standard: EN-60947-7-1
