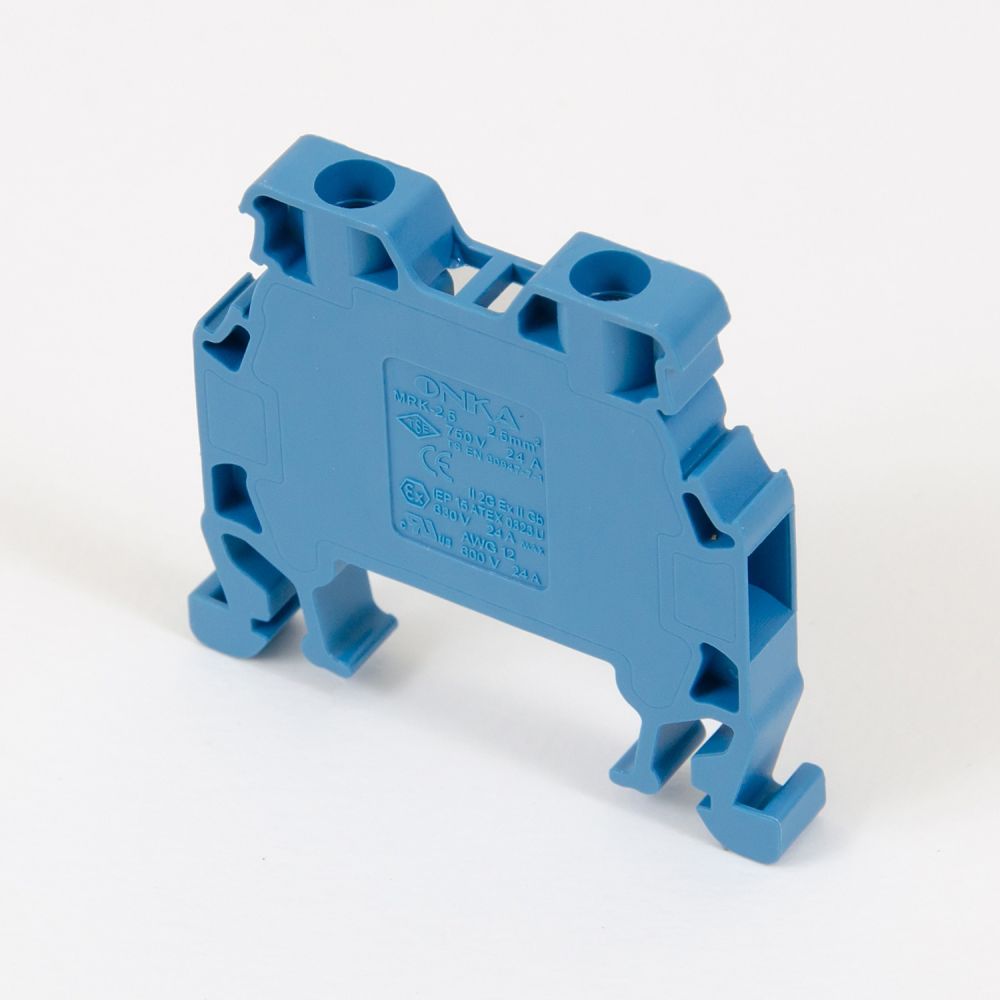

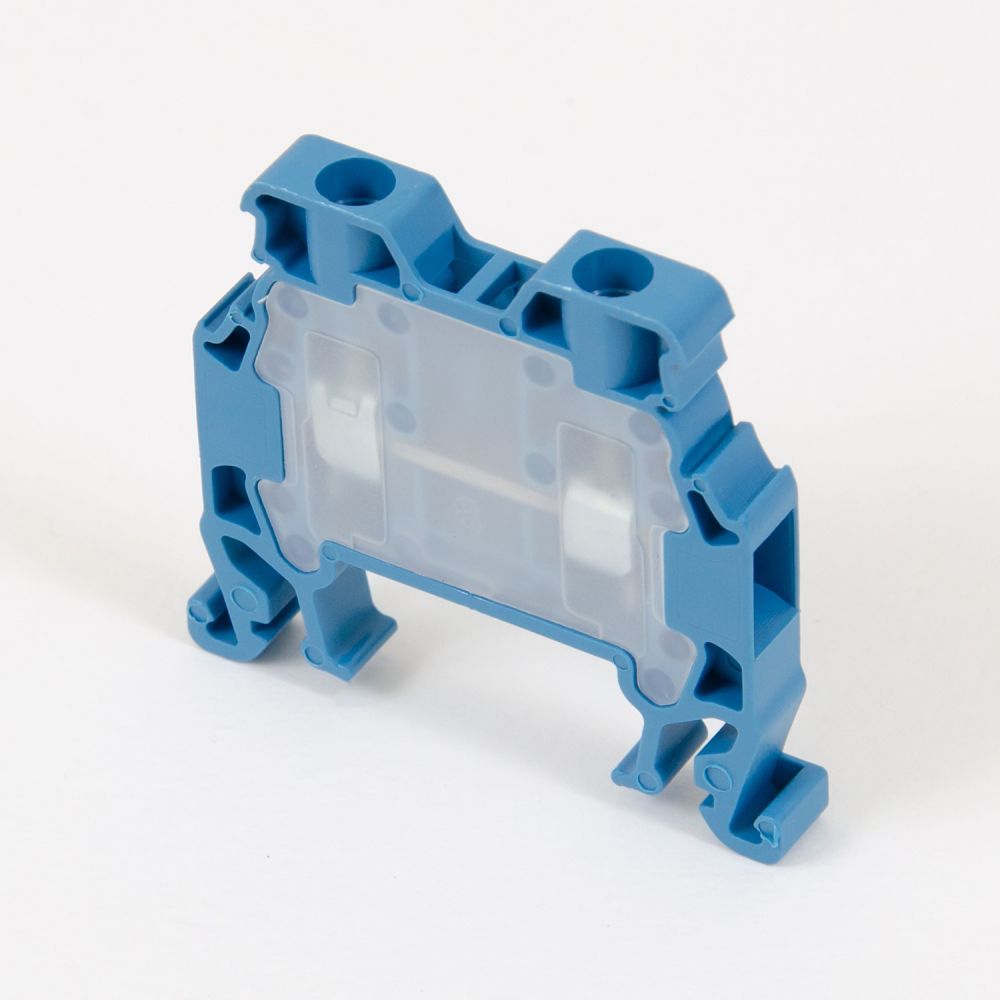

ONKA 2.5 mm2 Connector for screw rail, terminal block for DIN rail, 2-wire, blue, 1010015

Connector for bus with thread / terminal for DIN rail 2-wire, blue, ONKA, made in Turkey

The connector / terminal block from ONKA is a reliable solution for anyone looking for functional and durable elements in electrical installations.
Made from high-quality materials, the connector ensures long-lasting use and resistance to mechanical damage.

Technical parameters

Cross-section of the connected single conductor up to: 2.5 mm2
Color: blue
Insulation material of the main body: polyamide (PA6.6)
Contact/bridge material: steel/copper CK45
Torque: 0.4 Nm
Connection position: side/side
Cable strip length: 10 mm
Type of electrical connection: screw clamp
Nominal voltage: 750 V
Nominal current: 24A
Operating temperature range from: -40°C
Operating temperature range to: 140°C
Mounting method: DIN rail mounting 35 mm
Standard: EN-60947-7-1
