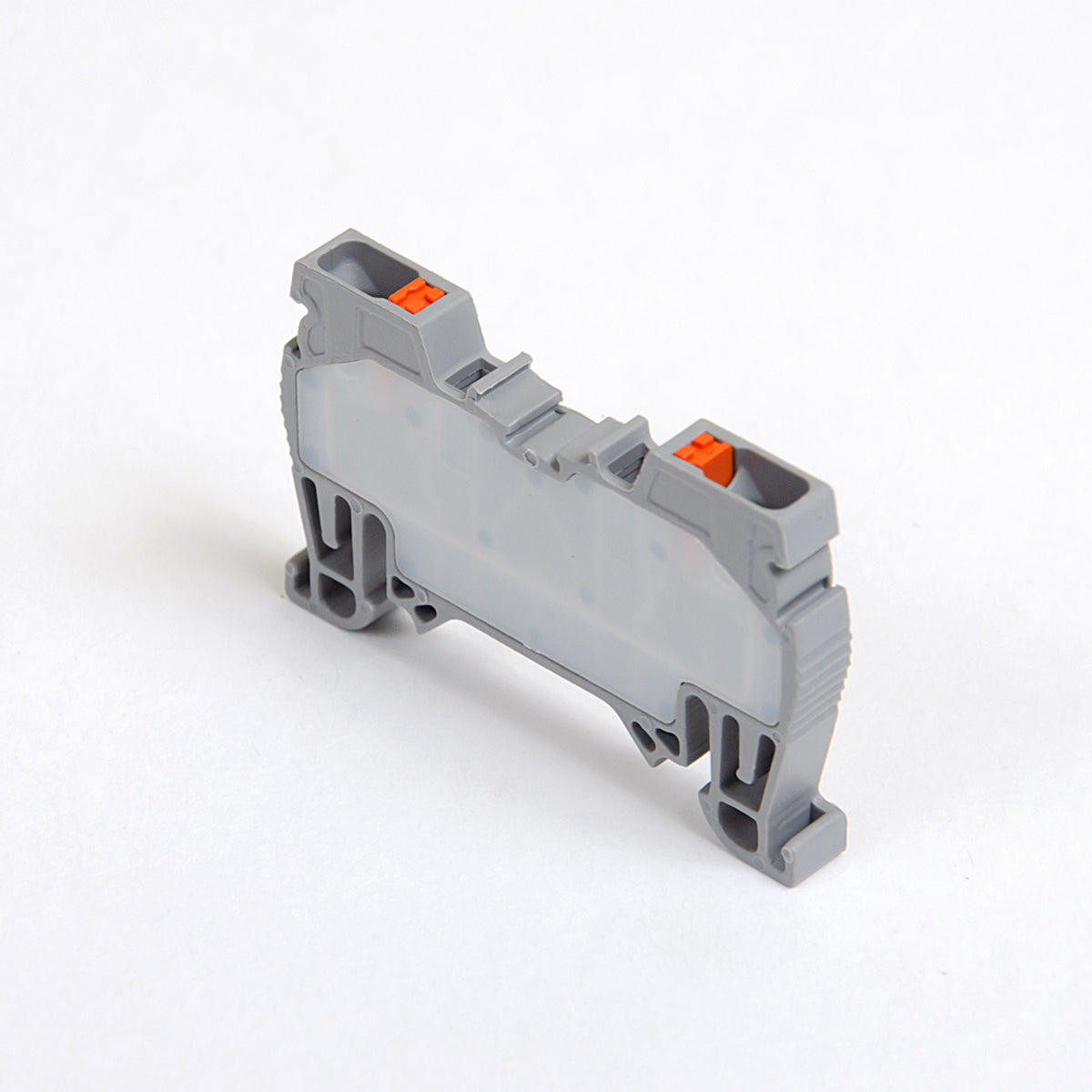

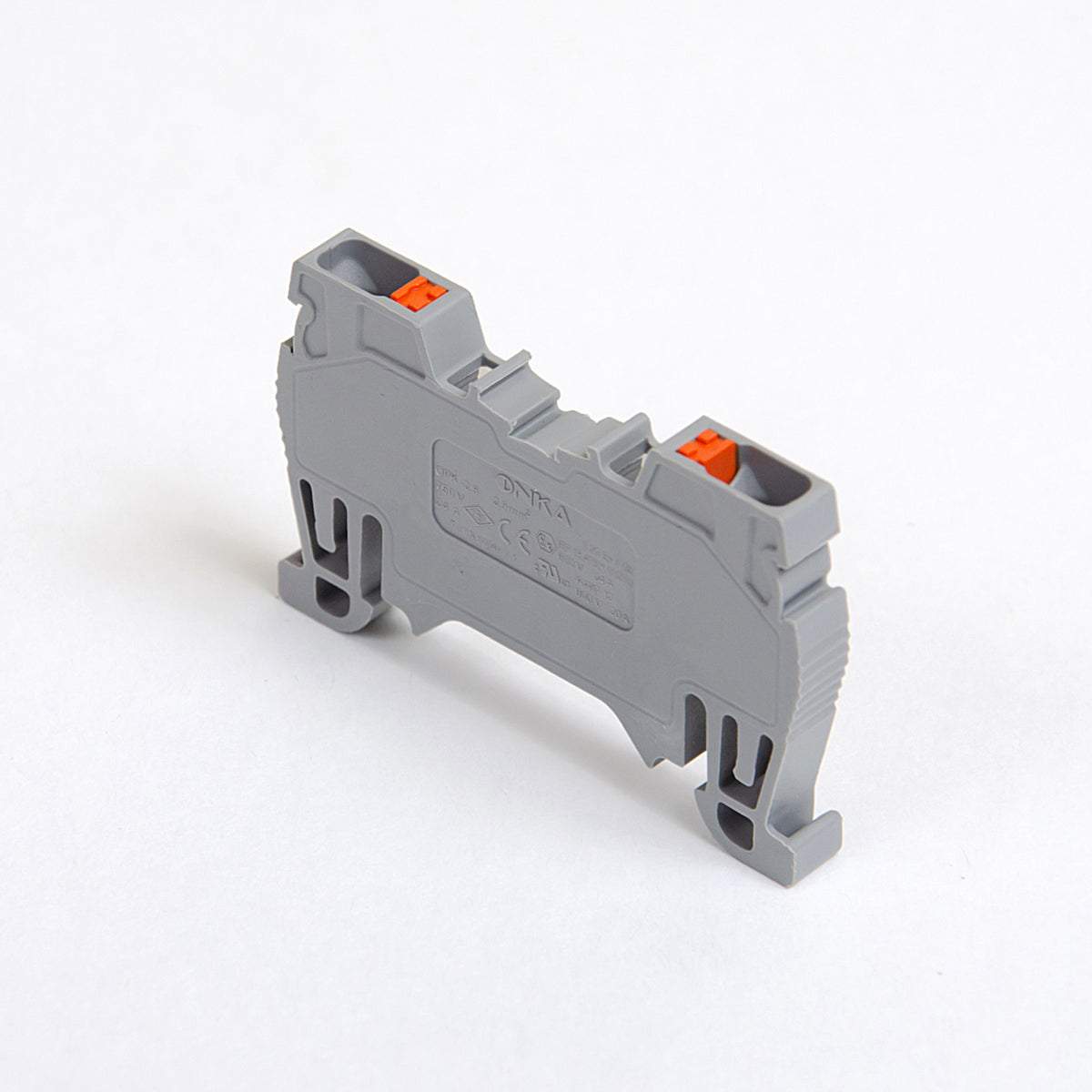

ONKA 2.5 mm2 spring connector for DIN rail, terminal for DIN rail, 2-wire, gray, 1020013
- Regular price
- €0,52
- Regular price
-
- Sale price
- €0,52
- Unit price
- per
Couldn't load pickup availability
Notified by email when this product becomes available
Pre-order product
- Description
- Payment methods
- Warranty
Spring connector for rail / DIN rail terminal, 2-wire, retractable contact, gray, ONKA, made in Turkey
The compact installation rail connectors from ONKA provide great possibilities for connecting various wires with different cross-sections. The transparent housing allows for easy checking of the correct placement of the wires. The original quick connectors from ONKA are a convenience during installation and 100% reliability of the connection.

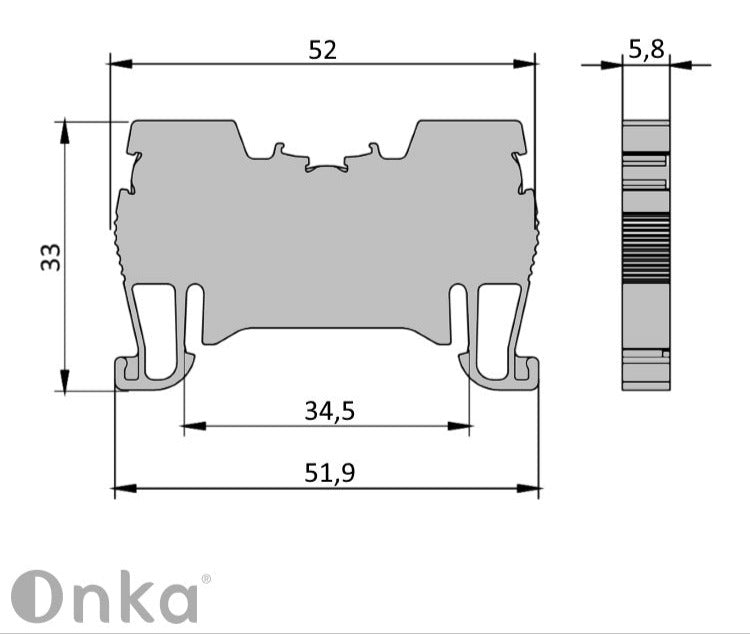

Technical parameters
Cross-section of the connected single wire up to: 2.5 mm2
Color: gray
Insulation material of the main housing: polyamide (PA6.6)
Contact/bridge material: stainless steel/copper
Connection position: top/top
Cable strip length: 9 mm
Type of electrical connection: spring clamp / retractable contact
Nominal voltage: 750 V
Nominal current: 24A
Operating temperature range from: -40°C
Operating temperature range to: 140°C
Mounting method: DIN rail mounting 35 mm
Standard: EN-60947-7-1
