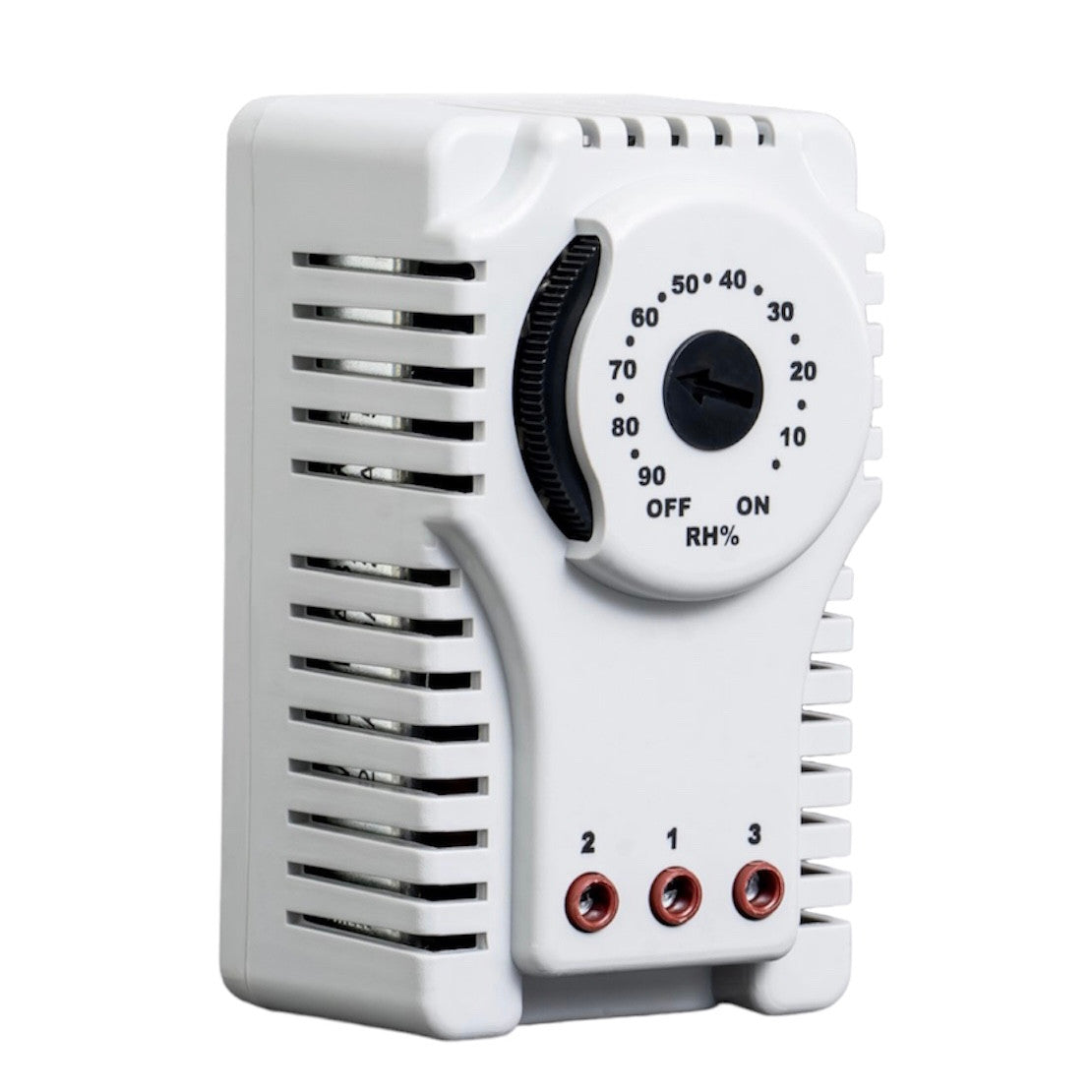

PHG02 Hygrostat Adjustment Range 10-90 %RH, Plastim
Failed to load pickup availability
PLASTIM PHG02 hygrostats 110-250VAC (10A-5A current load), 10 - 90%RH, screw terminals IP20
This hygrostats (mechanical humidity level control relay or hygrometer or hygrostats) can be used for both processes - to reduce humidity and to increase humidity. For this purpose, the device is equipped with a switching contact that allows the use of this hygrostats for any humidity control task.
This humidity level control relay is designed for installation in electrical or automatic panels, ATMs, payment terminals, gaming machines, or other volumes for humidity level control and activation of the corresponding heating or drying devices.
Manufacturer code |
Unit |
PHG02 |
Voltage |
V AC |
110-250 |
Adjustment range |
% RH |
10-90 |
Color potentiometer |
- |
Black |
Current |
A |
(10-5) |
Hysteresis |
- |
%5 - %10 |
Sensor type |
- |
Polyamide tape |
Electrical connection |
- |
3-pole terminal |
Conductor size |
- |
0.75 mm² - 4.0 mm² |
Operating temperature |
°C |
+10/+60 |
Storage temperature |
°C |
+10/+60 |
Degree of protection |
- |
IP20 |
Body color |
- |
RAL7035 |
Installation |
- |
DIN rail 35 mm |
Dimensions |
mm |
94x54x56 |
Weight |
g |
180 |
