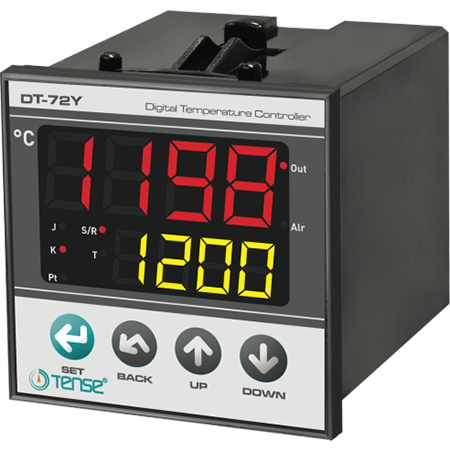

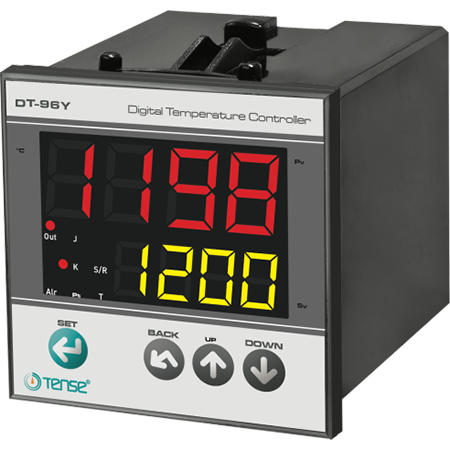

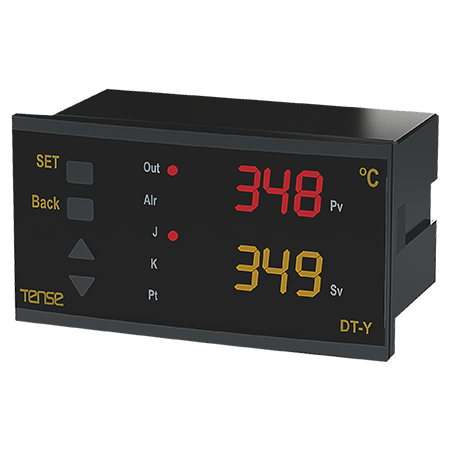

PID temperature controller for panel mounting up to 1750 °C

PID temperature controller for panel mounting, measurement range -100°C ... +1750°C, resolution / step 0.1ºC (made in Turkey, TENSE)

Control and monitoring of thermal processes in heating, air conditioning, and ventilation systems, building automation, industrial equipment.

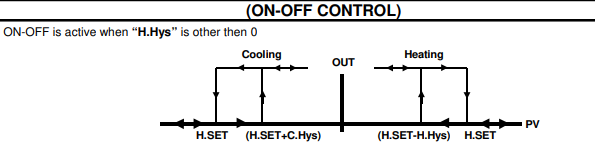

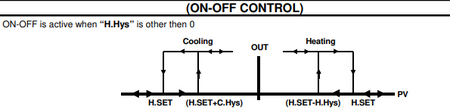

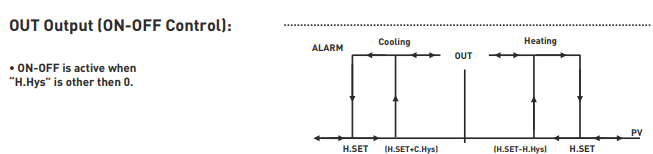

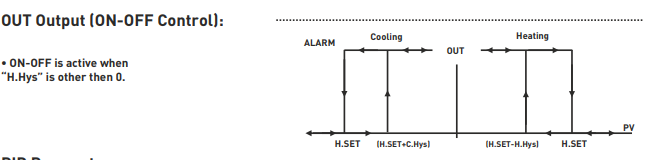

Temperature control is achieved through on/off or PID control. The controller offers self-optimization to prevent exceeding the process speed.

• Automatic setting of PID parameters

• Sensor type: T/C (J,K,T,S,R), Pt100
• Selectable control type: P, PI, PD, PID, or ON-OFF.

• Automatic removal of 'exceedance' in PID mode

• Overrun protection

• Delay on switch-on for OUT in cooling mode

• Password protection

• EEPROM memory for saving settings

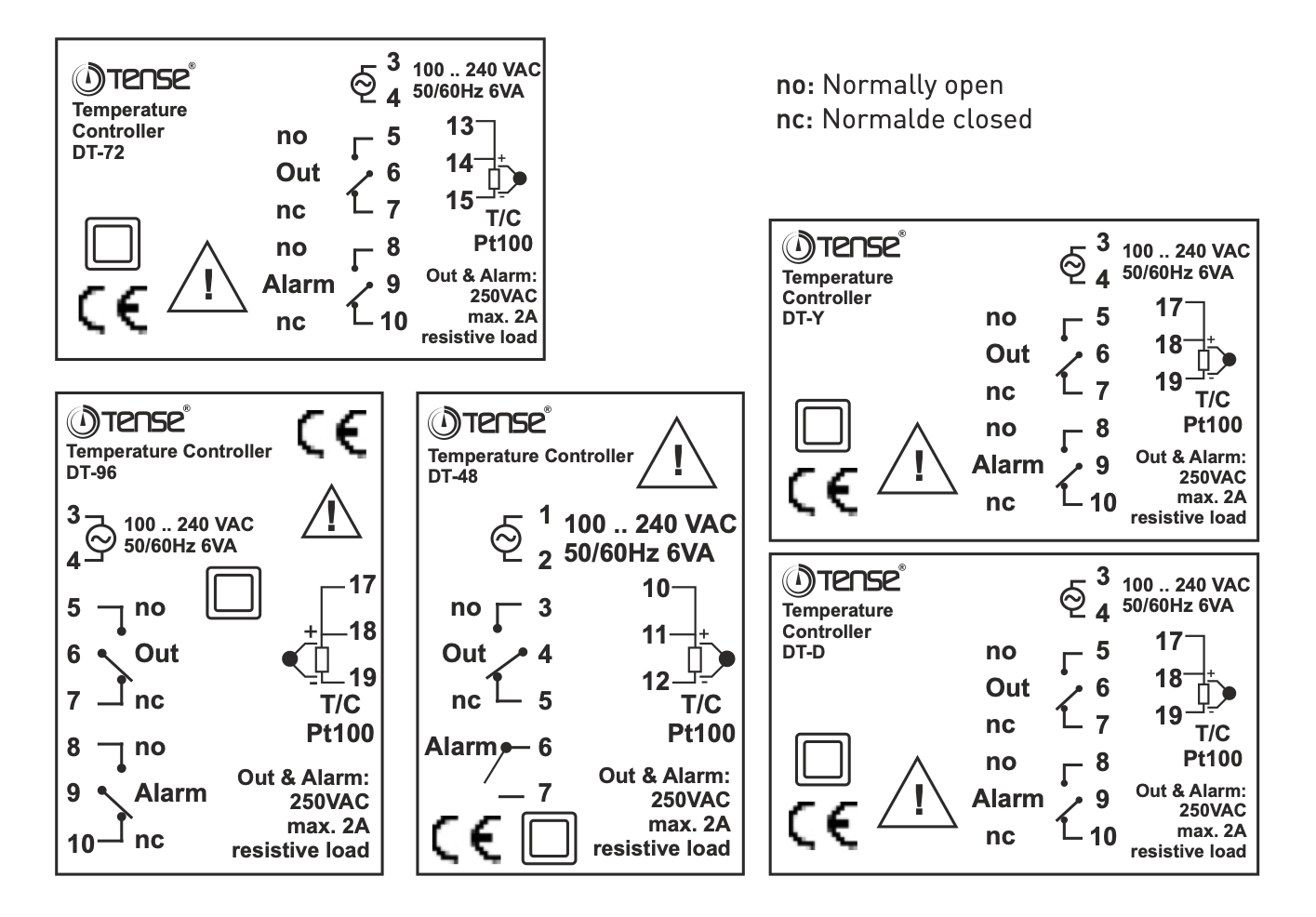

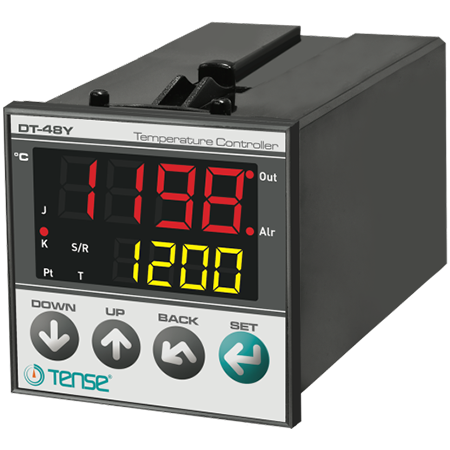

• Relay outputs OUT and ALARM (NO+NC) 250 VAC, 2A (ALARM ON only with DT-48Y)

The measurement range depends on the sensor and can be set with the buttons on the temperature controller.

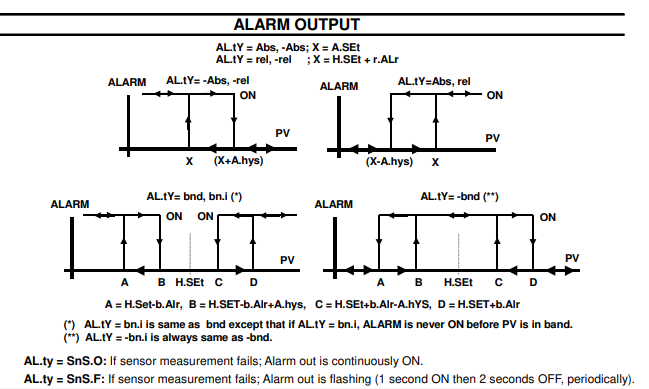

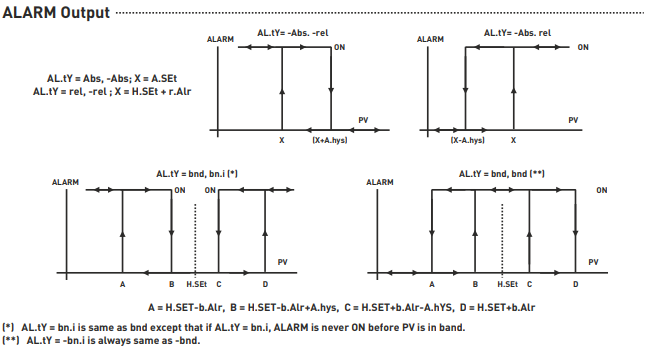

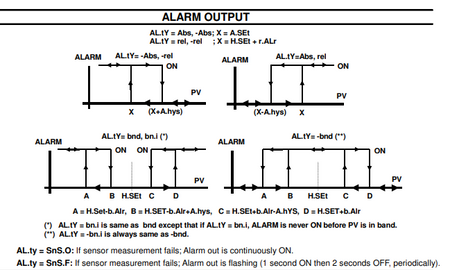

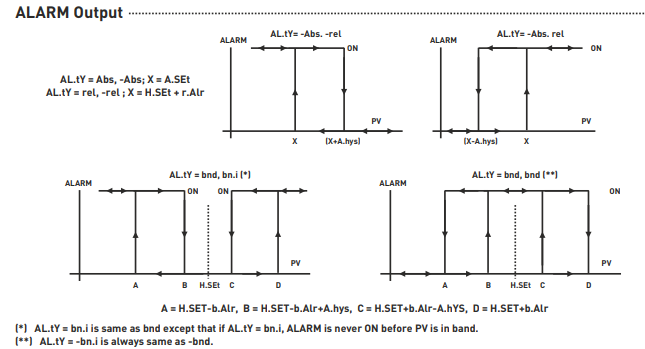

The display of the temperature controller is a high-contrast display that can be read accurately only under adverse conditions. In addition to the control output, the temperature controller has an additional alarm relay that triggers a contact without voltage if the value is exceeded or not reached.

Don't forget to order our temperature sensors - type J Fe-Const thermocouples (metric 6/8) with a temperature measurement range from -100 °C to +600 °C. They are available with cable lengths of 1 m, 1.5 m, 2 m, 2.5 m, 3 m, 4 m, and 5 m.
