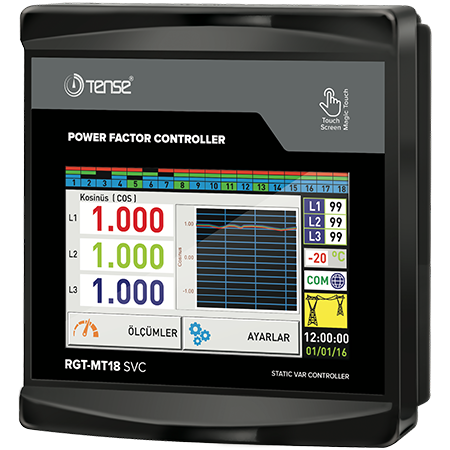

RGT-MT18 - Reactive Power Controller 18 Levels +TCR with RS485 ModBus
Failed to load pickup availability
18 steps + TCR Power factor controller for symmetrical/asymmetrical networks with 5-inch touchscreen and RS-485 (TENSE)
The relays for reactive power control are designed to reduce reactive power (inductive and capacitive) that is not used by the load and is drawn from the grid. When inductive power is drawn from the grid, it intervenes by removing a capacitor of appropriate value. If capacitive power is drawn from the grid, it intervenes by removing a shunt inductor of appropriate value. In this way, it attempts to reduce the inductive/active and capacitive/active speeds of the system. It is designed to provide more reasonable compensation in unbalanced inductive and capacitive systems with step RGT-MT18 TCR
Generator input and generator compensation
Alarm output for voltage, harmonic current/voltage, inductive and capacitive current
Ability to adjust the activation, discharge, and settling times
Remote communication with RS485 (RS485 ModBus RTU)
Single-phase, two-phase, and three-phase capacitors and shunt reactors can be connected
Harmonic voltage and current up to the 61st harmonic can be monitored
Total energy (import/export) can be monitored
The values of THD-V and THD-I for each phase can be monitored
Creating a power analysis (20 samples 9999 min.) - for capacitor selection
Temperature alarm output
Recording of consumption (active, reactive, and apparent power and current consumption)
Minimum, maximum, and average values of current and voltage for each phase can be monitored
Current date and time
