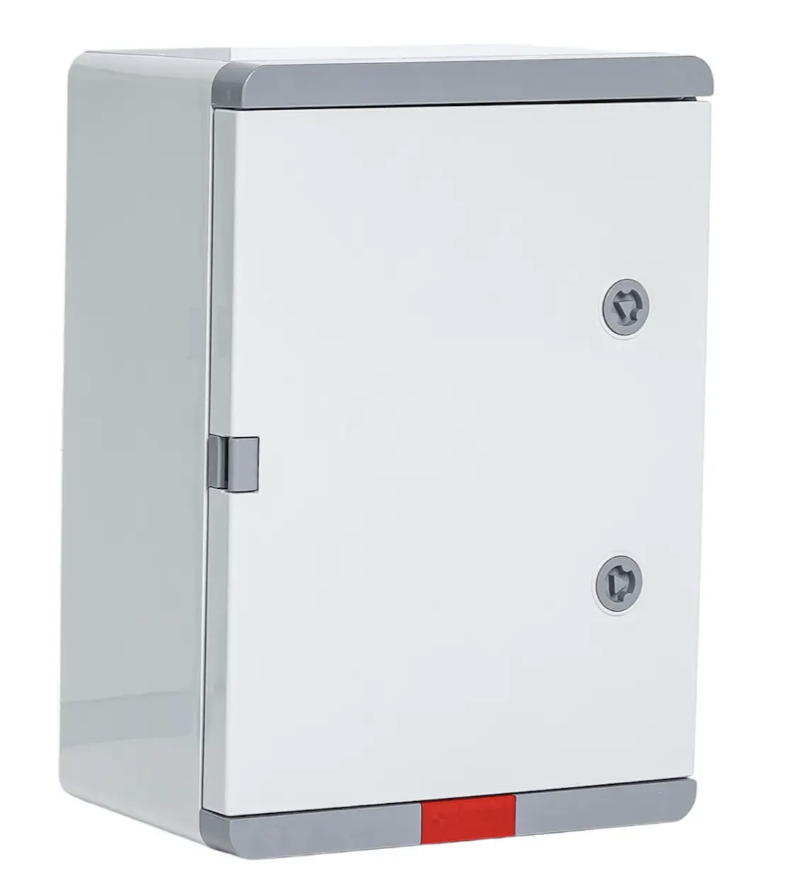

Impact-resistant closed plastic housing with IP67 protection with mounting panel, Plastim (Turkey).
The plastic housing with IP67 protection has several important advantages, especially for use in harsh conditions:
High protection against moisture and dust:
The IP67 classification means that the housing is completely protected from dust and can withstand short-term immersion in water at a depth of up to 1 meter for 30 minutes, making it ideal for installation in damp or dusty places - for example, outdoors, in industrial areas, or near water bodies.
Corrosion resistance:
The plastic is not subject to corrosion, unlike metal panels, which is especially valuable in aggressive environments - near the sea, in chemical plants, or in high humidity enterprises.
Easy and simplified installation:
The plastic housing is much lighter than its metal counterpart, which simplifies transportation and installation, especially in hard-to-reach places.
Dielectric properties:
The plastic does not conduct electricity, which increases safety when working with electrical equipment and reduces the risk of short circuits.
Resistance to ultraviolet rays:
If a special plastic for ultraviolet rays is used, the shielding retains its properties for a long time, even when constantly exposed to sunlight.
Technical specifications
Resistance to: chemicals, bases, oils, salts, etc.
Nominal voltage: up to 690 V
Maximum current: up to 800 A
Operating temperature: -35 °C + 65 °C
Material: HB ABS
Mounting plate: 1 mm galvanized steel
IP protection: IP67
IK protection: IK08
Color: gray RAL7035
Application examples
Wet and dusty environments
Electrical screens in car washes, swimming pools, water parks, fountains.
Control boxes for irrigation systems and pumping stations.
Installations in food processing enterprises where wet cleaning and disinfection are regularly performed.
Industrial installations
Protection of equipment in dusty workshops, concrete plants, and metallurgical enterprises.
Installation of protections in areas with aggressive environments (e.g., chemical plants).
Marine and port infrastructure
Protection of electrical installations on platforms, in ports, and on ships.
Use in coastal areas with high humidity and exposure to salty air.
Construction sites
Temporary electrical distribution devices for powering construction machines in severe weather conditions.
Underground installations
